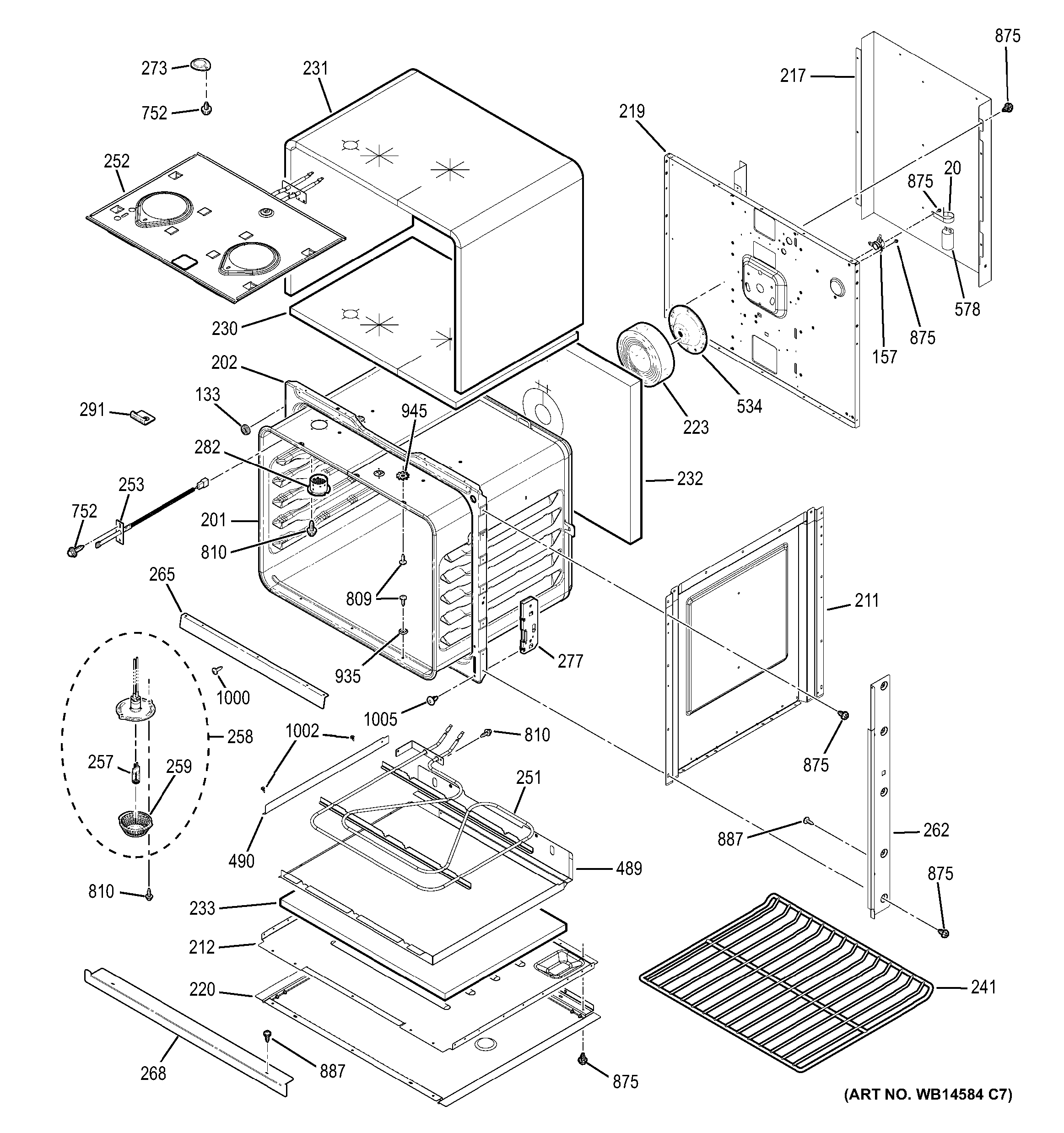

JTP70DP3WW BODY PARTS

JTP70DP3WW BODY PARTS

Written by

in

JTP70DP3WW BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
201WRAPPER OVN CAV ASM UPR
202GEN WB02T10404
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10373
219WB02X20948 GE Oven Back Insulation Retainer
220WB02T10502 GE Air Duct Bottom
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10186 GE Oven Insulation
231WB35T10183 GE Top Insulation
232WB35T10182 GE Insulation
233WB35T10181 GE Bottom Insulation
241WB48T10050 GE Oven Rack
251WB44T10110 GE Oven Bake Element
252WB44T10106 GE Oven Broil Assembly
253WB21T10018 GE Oven Sensor Assembly
257RANGE ONLY 40W 120V APPL BULB
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
262WB07T10587 GE Oven Right Hand Side Trim
262WB07T10588 GE Oven Vertical Side Trim Assembly
265WB02T10456 GE Oven Divider Air Assembly (White)
268WB07T10589 GE Oven Bottom Trim (White)
273GEN WB02T10490
273GEN WB02K5365
277GEN WB10T10083
282WB28T10215 GE Oven Vent Tube Assembly
291GEN WB02X9152
489GEN WB49T10019
490WB49T10018 GE Side Reflector Pan
534WB26T10015 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
752WB1K5200 GE Oven Screw 340531
809WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1000WB01X22380 GE Screw (White)
1002GEN WB01T10051
1005WB01T10008 GE Oven Screw 10-32
