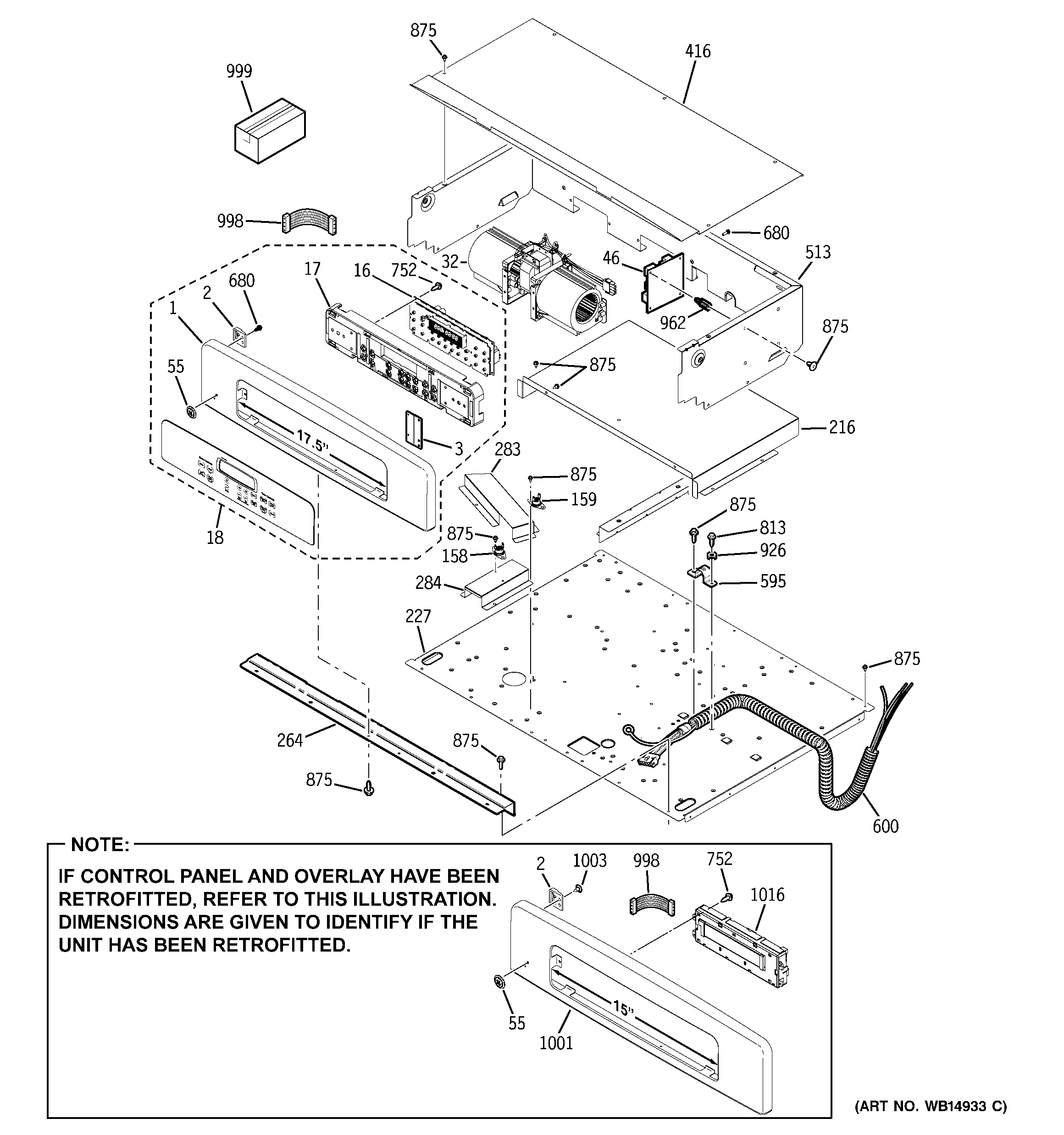

JTP75SM2SS CONTROL PANEL

JTP75SM2SS CONTROL PANEL

Written by

in

JTP75SM2SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11025
2GEN WB02T10376
3GEN WB02T10382
3GEN WB02T10383
16GEN WB27T10907
17GEN WB27T10930
18GEN WB49T10045
32WB26X10264 GE Oven Fan Kit
46WB27T10569 GE Oven Range Control Board
55WB02T10359 GE Oven Badge
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
752WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
998WB18T10371 GE Oven Ribbon Connector GLS Touch
998WB18T10342 GE Oven Logic/Display Harness
998GEN WB18T10403
999GEN 31-14747
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999GEN 49-80429
999GEN 49-80584
999GEN 31-10747
999GEN 31-10754
999GEN 31-10647
1001GEN WB36T11261
1003GEN WB01T10019
1016GEN WB27T11157
