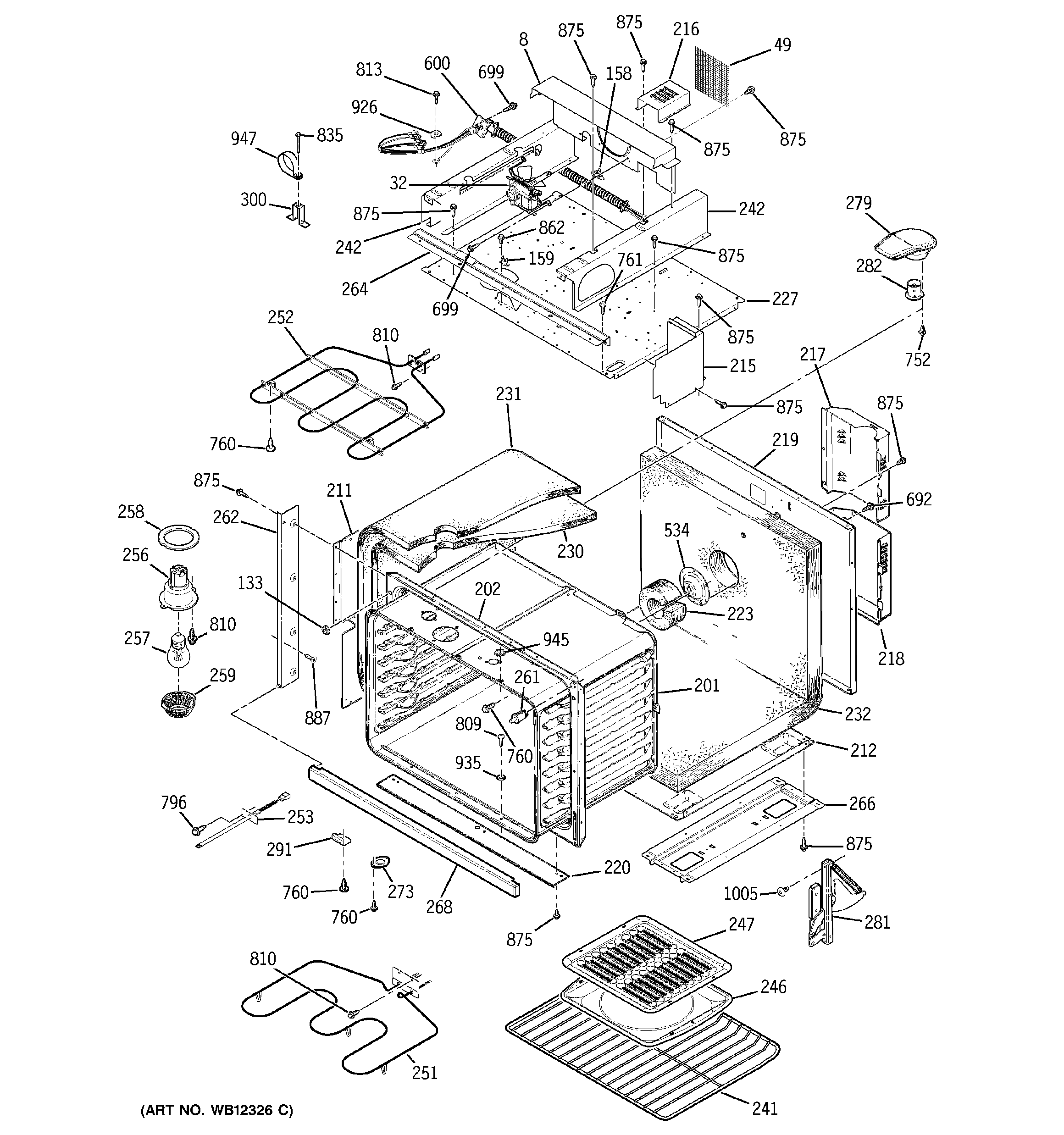

JTP85BD1BB BODY WITH MICROWAVE SUPPORT

JTP85BD1BB BODY WITH MICROWAVE SUPPORT

Written by

in

JTP85BD1BB BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8FAN SUPPORT
32WB26K5061 GE Oven Upper Fan Assembly
49GEN WB34T10043
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
158WB24T10060 GE Oven Safety Thermostat
159LIMIT SWITCH-UPPER(VENT)
201OVEN BODY LOWER
202GEN WB63T10064
211GEN WB02K5306
212INSULATION RETAINER-BTM
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB56X10189
220BTM TRIM SHIELD
227GEN WB02T10109
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242GEN WB02K5385
242GEN WB02K5384
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN WB08X10012
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5417
262GEN WB07K5416
264GEN WB07T10209
266WB02K10048 GE Base Rail
266GEN WB63X10016
266GEN WB63X10013
268BOTTOM TRIM-BLK
279GEN WB38T10014
281GEN WB14T10009
281GEN WB14T10010
282GEN WB28T10070
291GEN WB02T10146
300UNKNOWN
534WB26T10015 GE Oven Cavity Support
600GEN WB18K5628
692SCREW
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
835GEN WB01X1123
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
947CABLE CLIP
1005WB01T10008 GE Oven Screw 10-32
