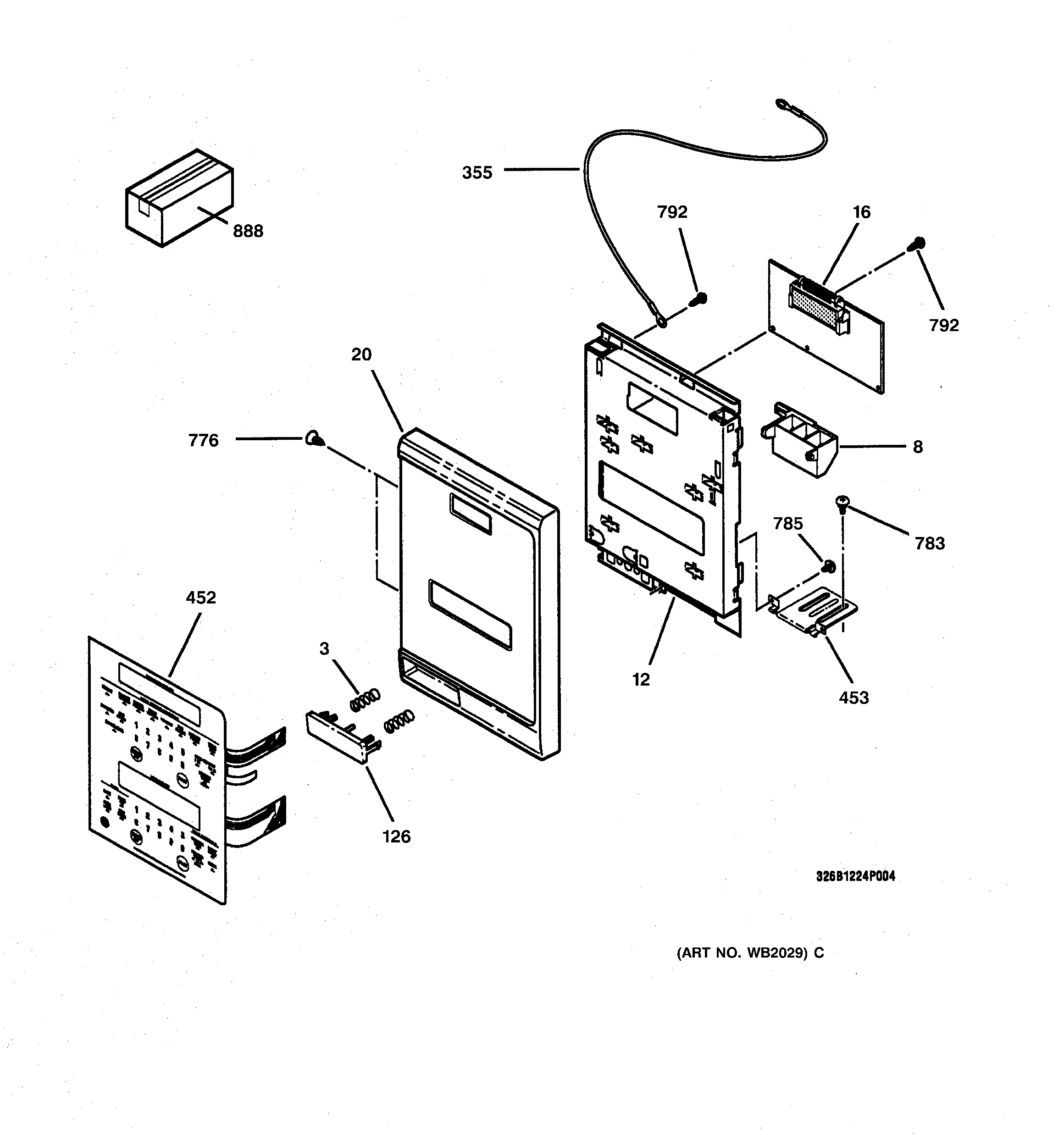

JTP85BW1BB ESCUTCHEON BASE ASSEMBLY

JTP85BW1BB ESCUTCHEON BASE ASSEMBLY

Written by

in

JTP85BW1BB ESCUTCHEON BASE ASSEMBLY

Products

Position	Product
3	M/W SPRING
8	GEN WB06K5063
8	GEN WB02K5386
12	GEN WB06K5049
12	M/W CEILING COVER PLATE
16	CLOCK/OVEN CONTROL
16	GEN WB27K5309
20	GEN WB10K5023
20	M/W ESCUTCHEON BASE
126	M/W OPEN BUTTON
245	GEN WB02K5304
355	GEN WB02K5411
452	M/W ESCUT SHEET ASM-BLK
453	CONTROL PANEL HINGE
487	NAME PLATE
595	WB2X9867 GE Oven Condenser Plate
602	GEN WH02X0941
776	GEN WB01K5092
783	SCREW
785	GEN WB01K5099
792	GEN WB01K5104
888	WIRE HARNESS
888	GEN WB18K5655
888	GEN WB18K5656
927	WB1X119D GE Oven Range Washer
