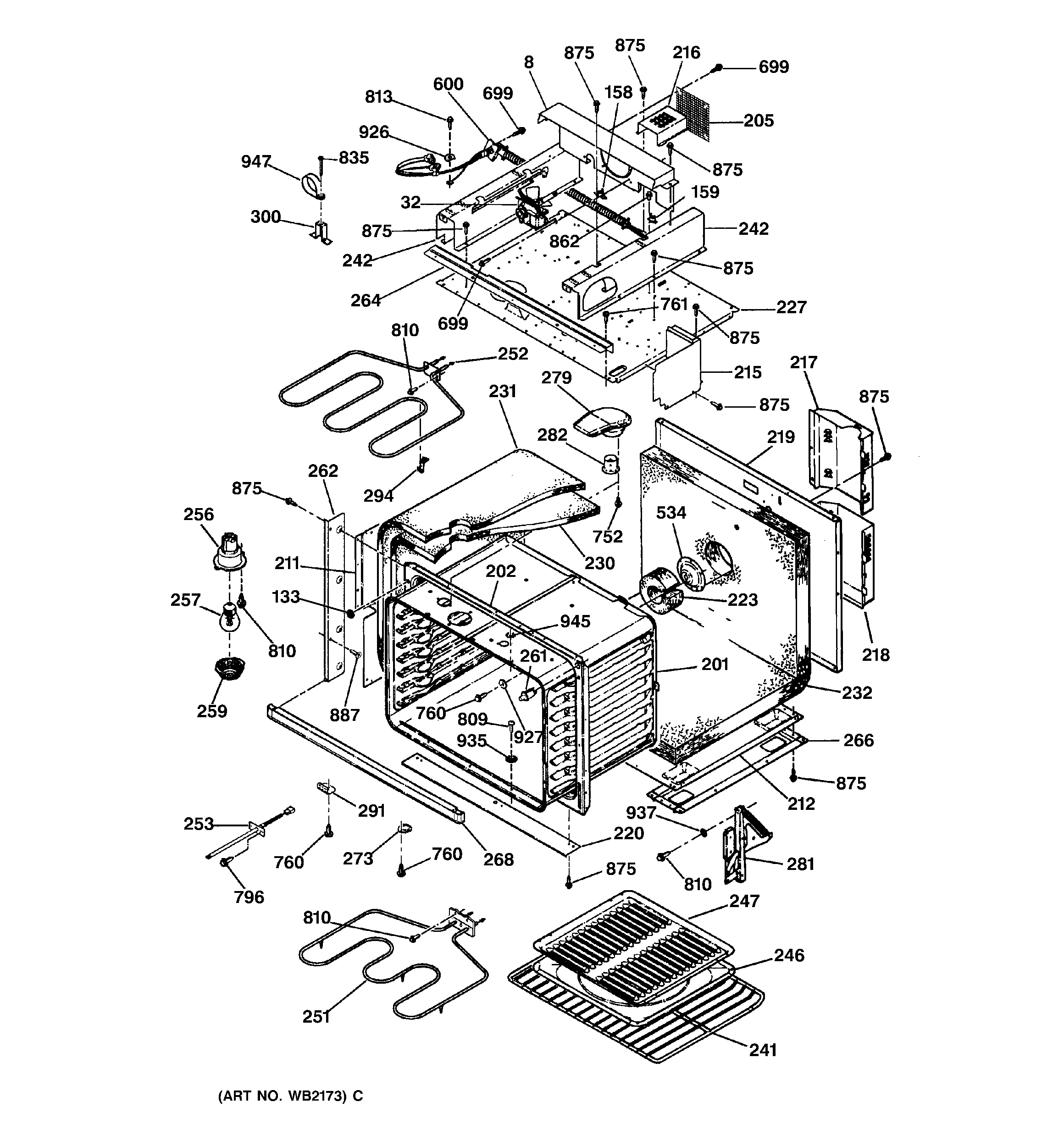

JTP85WA2WW OVEN BODY WITH MICROWAVE SUPPORT

JTP85WA2WW OVEN BODY WITH MICROWAVE SUPPORT

Written by

in

JTP85WA2WW OVEN BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8FAN SUPPORT
32WB26K5061 GE Oven Upper Fan Assembly
133WB01T10026 GE Oven Door Pad
133WB01T10022 GE Oven Door Bumper
133FELT PAD
158GEN WB24T10033
159GEN WB24K5135
201GEN WB63T10057
202FRONT FRAME
205GEN WB06K5041
211GEN WB02K5306
212GEN WB02K5305
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
227GEN WB02K5387
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242GEN WB02K5384
242GEN WB02K5385
246GEN WB48T10017
246WB49X690 GE Oven Glass Tray
247WB48T10089 GE Oven Broiler Pan XL
251WB44T10018 GE Oven Bake Element
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN WB08X10012
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5517
262GEN WB07K5518
264GEN WB07T10165
266GEN WB63X10013
266GEN WB63X10016
266WB02K10048 GE Base Rail
268GEN WB07T10038
273GEN WB02K5365
279GEN WB38T10014
281WB14T10006 GE Oven Hinge Assembly Left
281GEN WB14T10005
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
300UNKNOWN
534GEN WB26T10003
600GEN WB18K5628
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
835GEN WB01X1123
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
937GEN WB01X1140
945WB1K5046 GE Oven Washer
947CABLE CLIP
