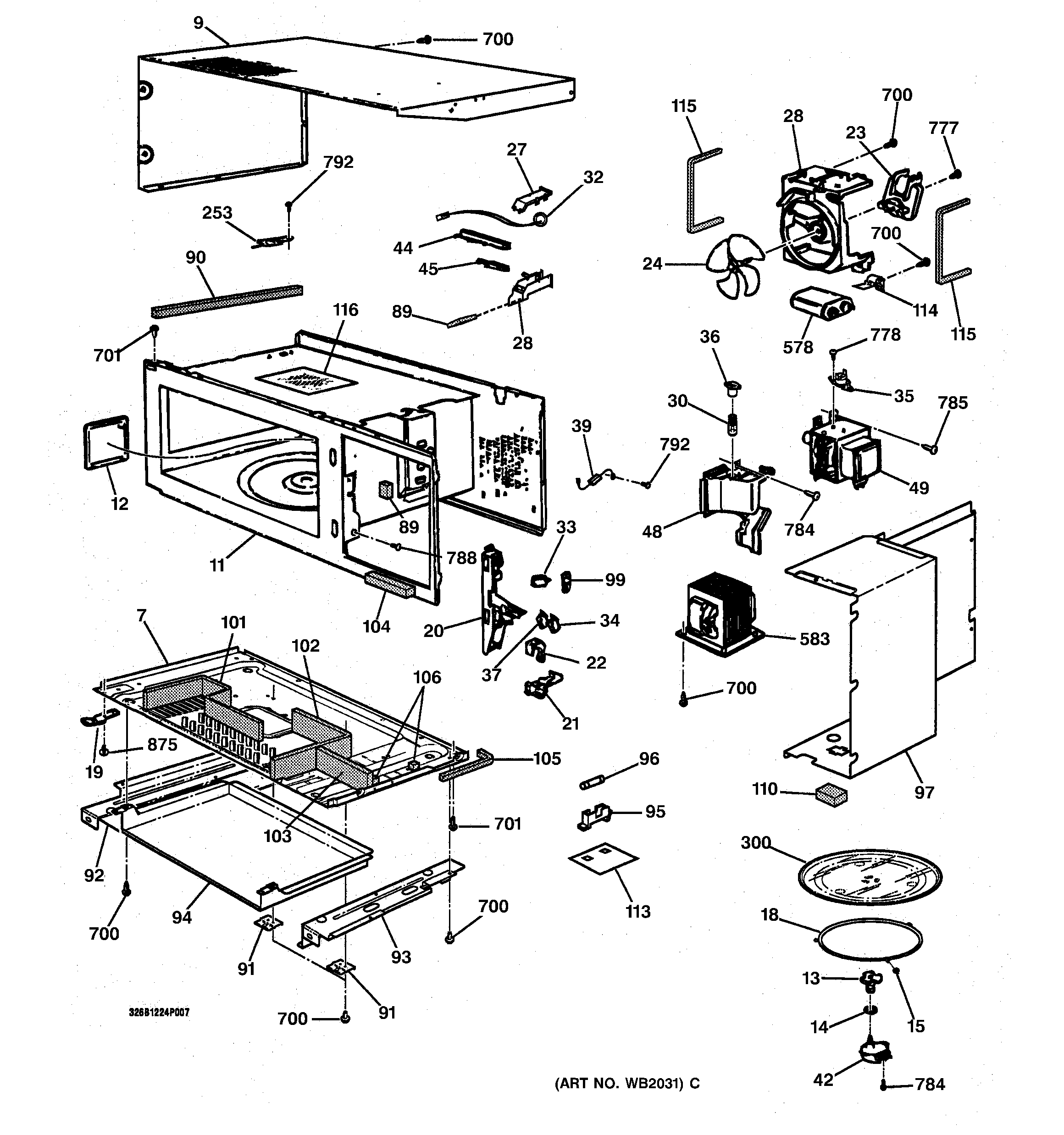

JTP85WW2WW MICROWAVE BODY PARTS

Products

Position	Product
7	M/W BASE
9	M/W OUTER PANEL
11	M/W OVEN BODY
12	GEN WB06K5049
12	M/W CEILING COVER PLATE
13	M/W PULLEY SHAFT
14	M/W PULLEY WASHER
15	M/W ROLLER
18	M/W ROLLER RING
19	M/W HINGE B
20	GEN WB10K5023
20	GEN WB02K5412
21	GEN WB02K5416
22	GEN WB02K5417
23	M/W FAN MOTOR
24	M/W FAN BLADE
27	GEN WB02K5414
28	GEN WB02K5415
28	M/W ORIFICE
28	GEN WB02K5388
30	M/W OVEN LAMP
32	WB26K5061 GE Oven Upper Fan Assembly
32	GEN WB20K5045
33	GEN WB24X5214
34	SWITCH
35	M/W THERMAL CUT OUT
36	M/W LAMP HOLDER
37	GEN WB24K5139
39	M/W DIODE
42	M/W GLASS TRAY MOTOR
44	M/W SENSOR COVER-UPPER
45	M/W SENSOR COVER-LOWER
48	AIR GUIDE A
49	M/W MAGNETRON
89	GEN WB06K5053
90	GEN WB06K5054
91	M/W BASE PLATE
91	M/W HINGE-UPPER
92	M/W SLIDE RAIL-LT
93	M/W SLIDE RAIL-RT
94	M/W EXHAUST COVER
95	M/W FUSE HOLDER
96	WB27X7 GE Oven Fuse
97	M/W SIDE PANEL
99	M/W SENSOR MTG PLATE
101	GEN WB06K5055
101	WB35K5097 GE Oven Door Insulation SD
102	GEN WB06K5056
102	WB35T10002 GE Oven Door In
103	CUSHION
103	GEN WB02K5321
104	GEN WB06K5058
105	GEN WB06K5059
106	GEN WB06K5060
106	GEN WB07T10036
110	GEN WB06K5061
113	GEN WB02K5322
113	FUSE INSULATOR
114	M/W GROUNDING PLATE CAP
115	GEN WB06K5052
116	M/W COVER SHEET
253	M/W SENSOR
253	SENSOR ASM
300	M/W GLASS TRAY
578	M/W CAPACITOR
583	GEN WB20K5047
700	GEN WB01K5218
701	M/W SCREW
777	M/W SCREW
778	GEN WB01K5217
784	GEN WB01K5098
785	GEN WB01K5099
788	SCREW
792	GEN WB01K5104
875	WH2X930 GE Screw
