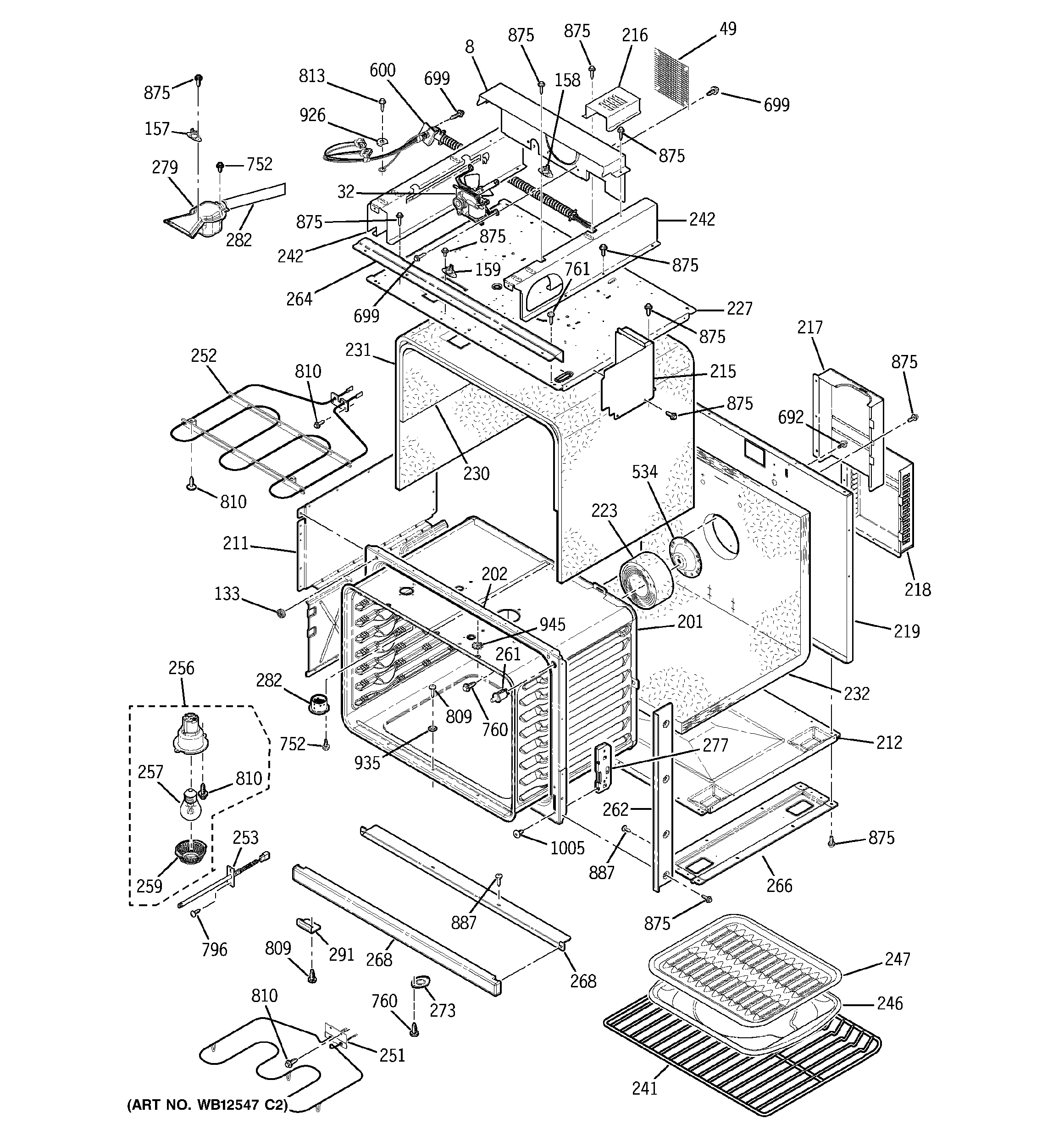

JTP86CF1CC BODY WITH MICROWAVE SUPPORT

JTP86CF1CC BODY WITH MICROWAVE SUPPORT

Written by

in

JTP86CF1CC BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8GEN WB02T10157
32WB26T10018 GE Oven Fan Motor
49GEN WB34T10043
133WB01T10022 GE Oven Door Bumper
133WB03T10156 GE Oven Door Bumper
157LIMIT SWITCH-UPPER(VENT)
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211GEN WB02K5306
212GEN WB02T10143
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219WB02X20948 GE Oven Back Insulation Retainer
227WB02T10343 GE Ran Insulation Retainer – Lower
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242GEN WB02K5385
242GEN WB02K5384
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN WB08X10012
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261GEN WB24T10065
262GEN WB07T10303
262GEN WB07T10304
264GEN WB07T10252
266GEN WB63X10013
266GEN WB63X10016
266WB02K10048 GE Base Rail
268GEN WB07T10389
277GEN WB10T10025
279GEN WB38T10021
282GEN WB28T10076
282WB38X33650 GE Vent Tube
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
600GEN WB18T10272
692SCREW
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887GEN WB01T10033
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
