JTP86CF7CC BODY WITH MICROWAVE SUPPORT

JTP86CF7CC BODY WITH MICROWAVE SUPPORT

Written by

in

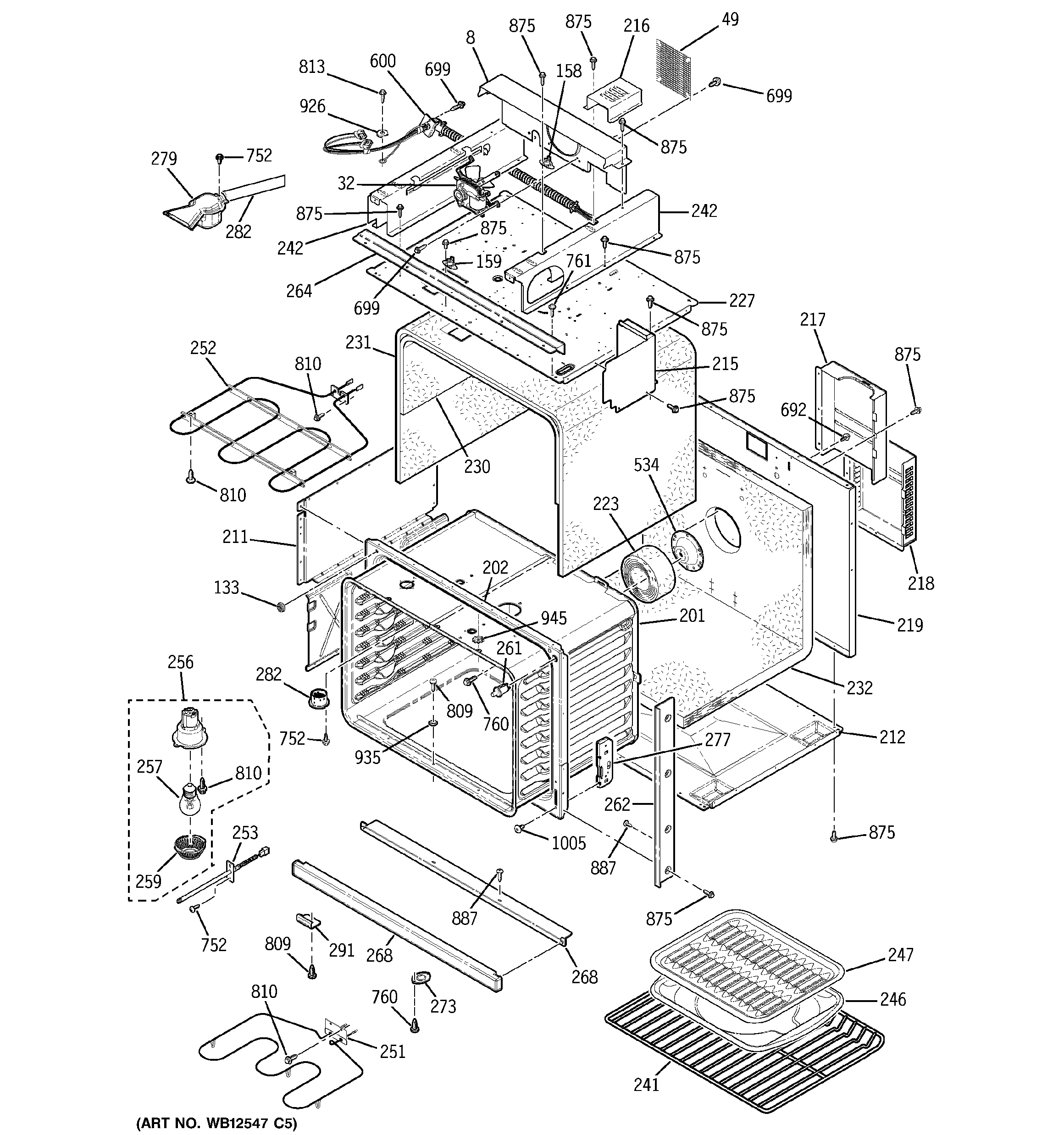

JTP86CF7CC BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8GEN WB02T10173
32WB26T10018 GE Oven Fan Motor
32WB26K5061 GE Oven Upper Fan Assembly
49WB34T10091 GE Oven Fan Screen
133WB03T10156 GE Oven Door Bumper
133WB01T10022 GE Oven Door Bumper
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211WB02T10284 GE Oven Side Insulation Retainer
212GEN WB02T10285
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB56T10136
223WB35T10090 GE Oven Back & Bottom Insulation
227WB02T10343 GE Ran Insulation Retainer – Lower
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
232GEN WB35T10123
241WB48T10095 GE Oven Rack
242GEN WB02T10225
242GEN WB02K5385
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261GEN WB24T10111
262GEN WB07T10493
262GEN WB07T10492
262GEN WB07T10301
262GEN WB07T10471
262GEN WB07T10494
262GEN WB07T10491
264GEN WB07T10252
268GEN WB07T10422
268TRIM BTM 30 (WHT)
268GEN WB07T10429
268GEN WB07T10401
268GEN WB07T10399
268GEN WB07T10426
273GEN WB02K5365
277GEN WB10T10083
279WB38T10019 GE Oven Vent Box Assembly
282GEN WB28T10076
282WB38X33650 GE Vent Tube
291GEN WB02X9152
534WB26T10015 GE Oven Cavity Support
600GEN WB18T10272
692SCREW
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
887WB1K5172 GE Oven Screw
887GEN WB01T10033
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
