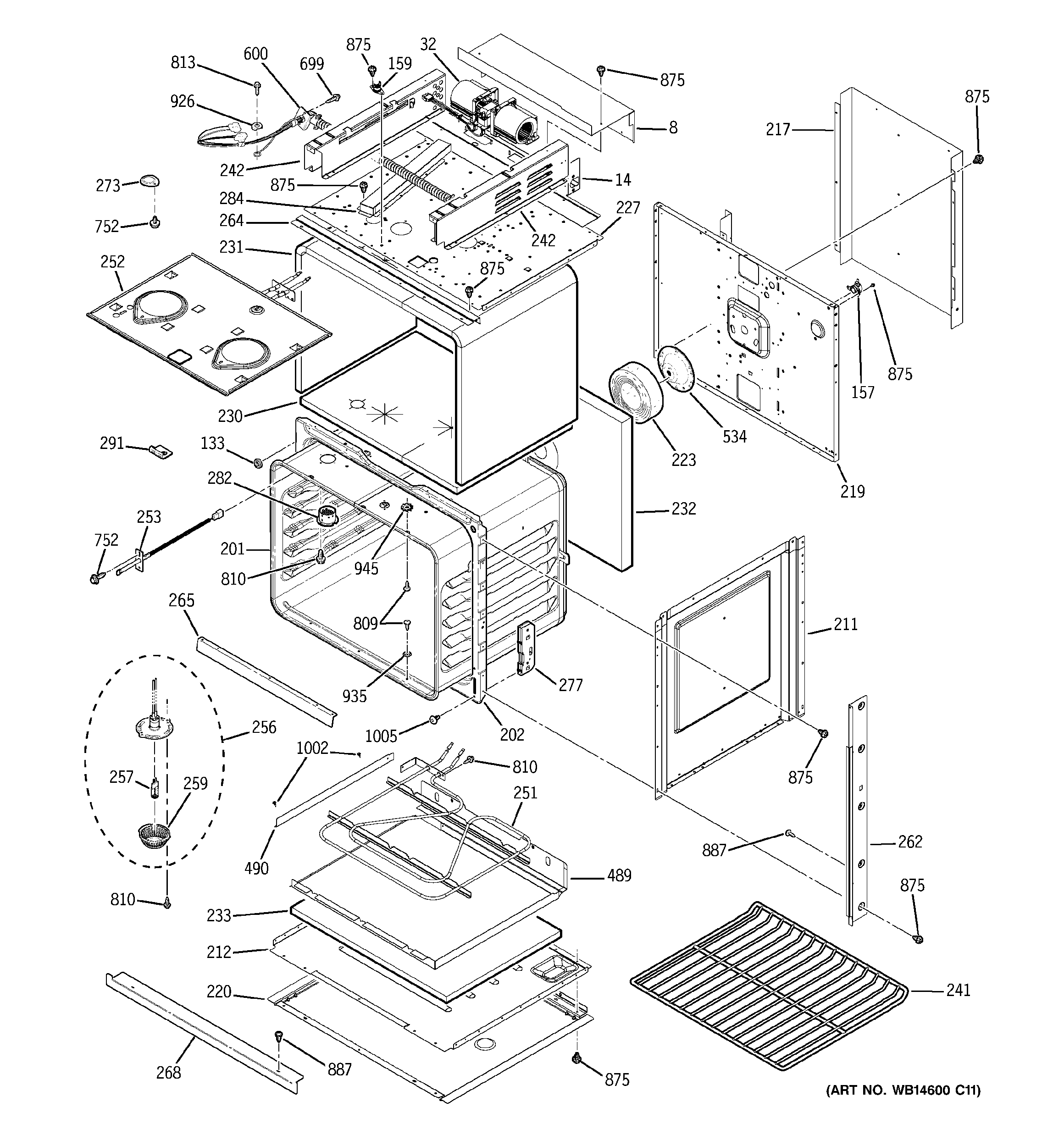

JTP90DP3BB BODY WITH MICROWAVE SUPPORT

JTP90DP3BB BODY WITH MICROWAVE SUPPORT

Written by

in

JTP90DP3BB BODY WITH MICROWAVE SUPPORT

Products

PositionProduct
8HOUSING FAN
14BRACKET MOTOR MOUNT
32WB26X10264 GE Oven Fan Kit
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
159WB24T10060 GE Oven Safety Thermostat
201WRAPPER OVN CAV ASM LWR
202GEN WB02T10404
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10373
219WB02X20948 GE Oven Back Insulation Retainer
220WB02T10502 GE Air Duct Bottom
223WB35T10090 GE Oven Back & Bottom Insulation
227WB02T10378 GE Insulation Retainer Top
230WB35T10186 GE Oven Insulation
231WB35T10183 GE Top Insulation
232WB35T10182 GE Insulation
233WB35T10181 GE Bottom Insulation
241WB48T10050 GE Oven Rack
242RAIL SLIDE (LT)
242RAIL SLIDE (RT)
251WB44T10110 GE Oven Bake Element
252WB44T10106 GE Oven Broil Assembly
253WB21T10018 GE Oven Sensor Assembly
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262TRIM VERT SDE 30 RT (BK)
262TRIM VERT SDE LT (BK)
264WB07T10580 GE Oven Inner Trim Vent
265GEN WB02T10421
268GEN WB07T10583
273GEN WB02T10490
277GEN WB10T10083
282WB28T10215 GE Oven Vent Tube Assembly
284DUCT OVN EXHAUST
291GEN WB02X9152
489GEN WB49T10019
490WB49T10018 GE Side Reflector Pan
534WB26T10015 GE Oven Cavity Support
600GEN WB18T10446
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
752WB1X536 GE Oven Screw
809WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
