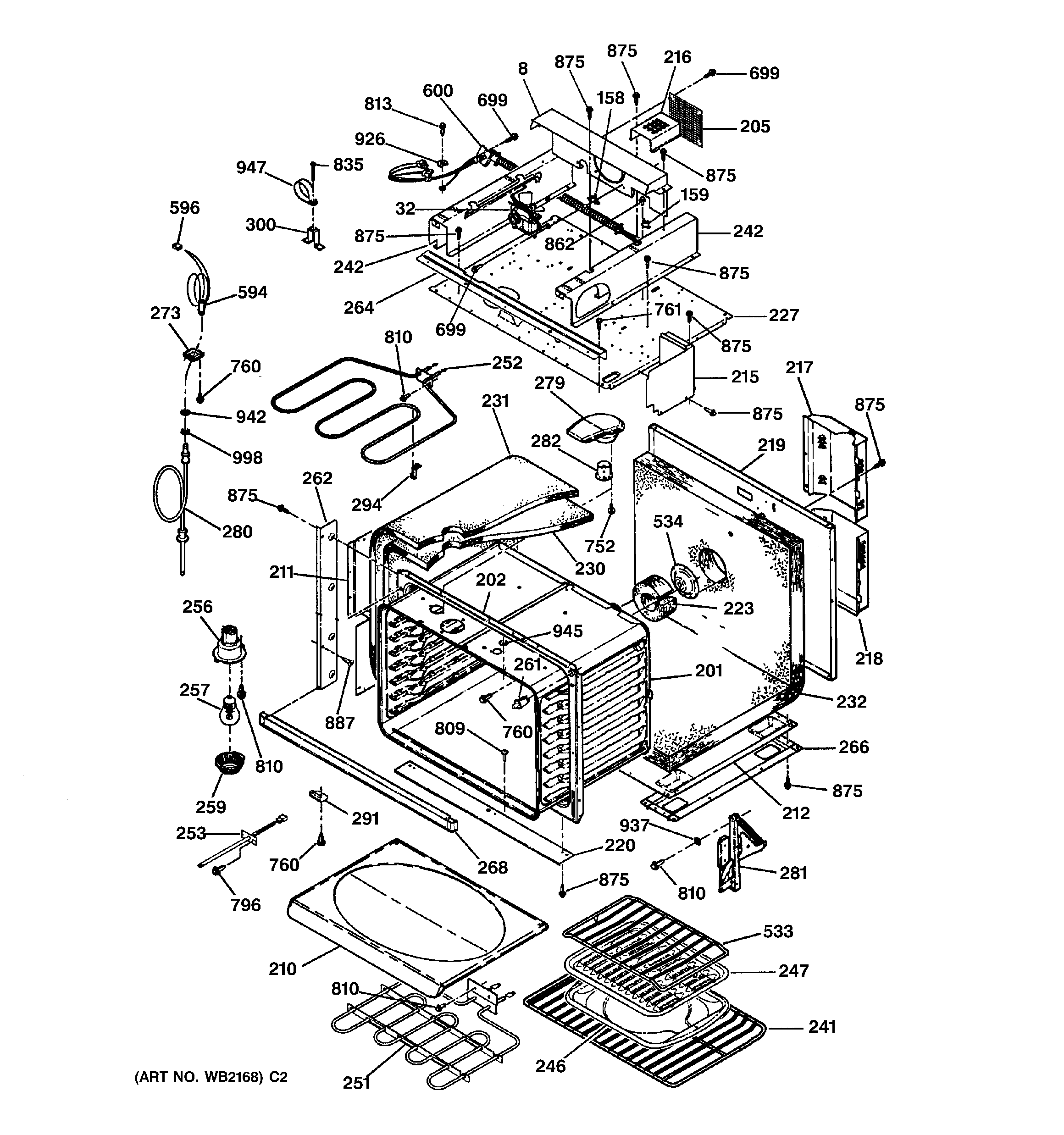

JTP95BA1BB OVEN BODY & M/W SUPPORT

JTP95BA1BB OVEN BODY & M/W SUPPORT

Written by

in

JTP95BA1BB OVEN BODY & M/W SUPPORT

Products

PositionProduct
8FAN SUPPORT
32FAN MOTOR CONV.
32WB26K5061 GE Oven Upper Fan Assembly
102WB35K5097 GE Oven Door Insulation SD
134GEN WB07T10111
158GEN WB24T10033
159GEN WB24K5135
201GEN WB63T10033
202GEN WB63T10015
205GEN WB06K5041
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02K5305
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
227GEN WB02K5387
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
242GEN WB02K5385
242GEN WB02K5384
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10006 GE Oven Bake Element
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
257GEN WB08X10012
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5417
262GEN WB07K5416
264GEN WB07K5466
266GEN WB63X10013
266GEN WB63X10016
266WB02K10048 GE Base Rail
268BOTTOM TRIM-BLK
273PROBE COVER
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14K5014
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
300UNKNOWN
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
534GEN WB26T10005
594GEN WB08K5056
596GEN WB08K5013
600GEN WB18K5628
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
835GEN WB01X1123
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
937GEN WB01X1140
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
947CABLE CLIP
998WB1X5572 GE Oven Nut
