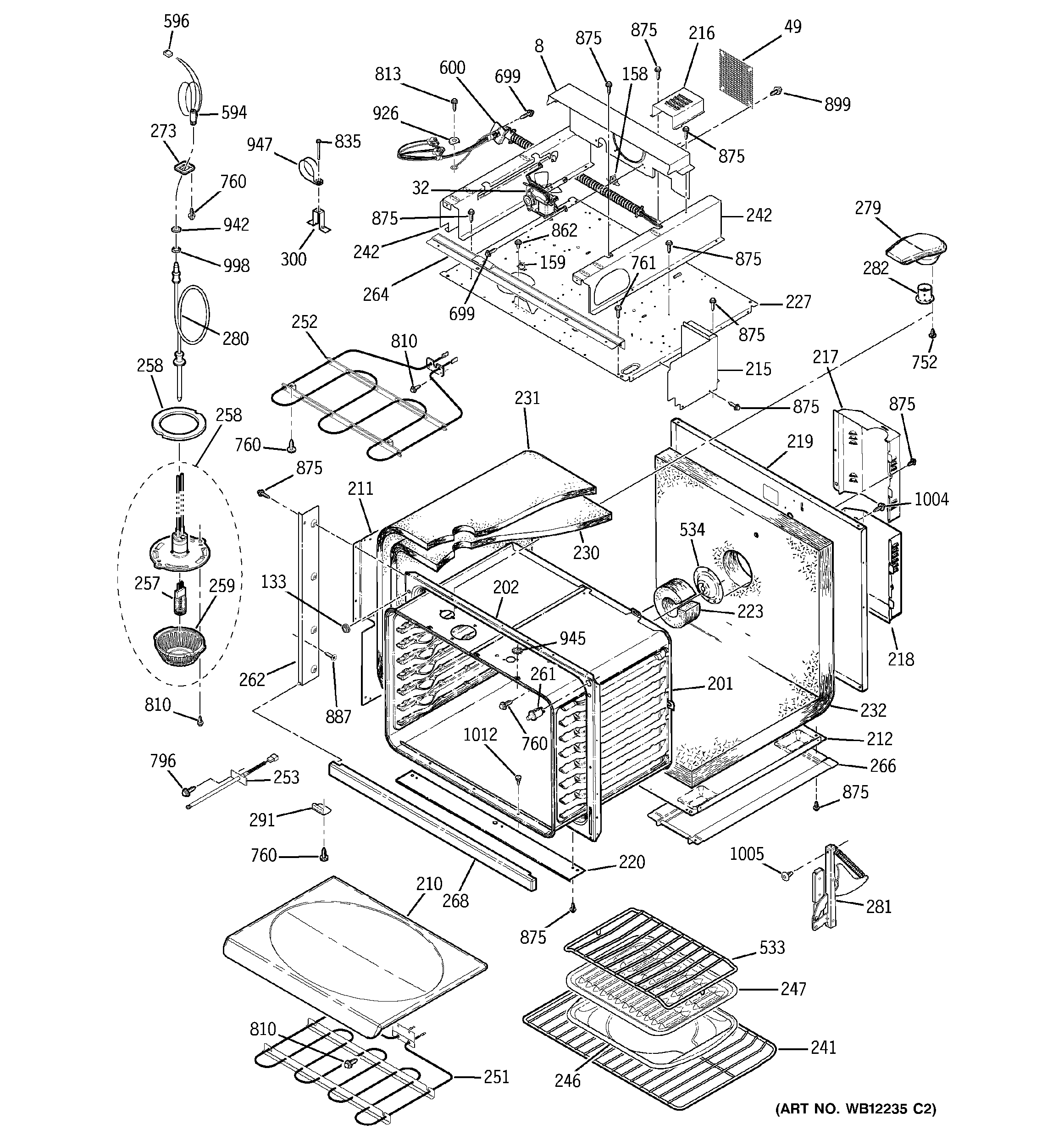

JTP95BD1BB OVEN WITH MICROWAVE SUPPORT

JTP95BD1BB OVEN WITH MICROWAVE SUPPORT

Written by

in

JTP95BD1BB OVEN WITH MICROWAVE SUPPORT

Products

PositionProduct
8FAN SUPPORT
32WB26K5061 GE Oven Upper Fan Assembly
49GEN WB34T10043
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
158WB24T10060 GE Oven Safety Thermostat
159LIMIT SWITCH-UPPER(VENT)
201OVEN BODY UPPER
202GEN WB63T10064
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212INSULATION RETAINER-BTM
215GEN WB34T10009
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB56X10189
220BTM TRIM SHIELD
227GEN WB02T10109
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241RACK OVEN
242GEN WB02K5384
242GEN WB02K5385
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
257GEN WB08X10012
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10026
258GEN WB04T10021
259WB25T10027 GE Oven Lens Lamp
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5416
262GEN WB07K5417
264GEN WB07T10209
266GEN WB63X10013
266GEN WB63X10016
266WB02K10048 GE Base Rail
268BOTTOM TRIM-BLK
273PROBE COVER
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10010
281GEN WB14T10009
282GEN WB28T10070
291GEN WB02X9152
300UNKNOWN
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
594GEN WB08T10017
596GEN WB08K5013
600GEN WB18K5628
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
835GEN WB01X1123
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
899WH02X10002 GE Screw
926GROUND WASHER
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
947CABLE CLIP
998WB1X5572 GE Oven Nut
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
