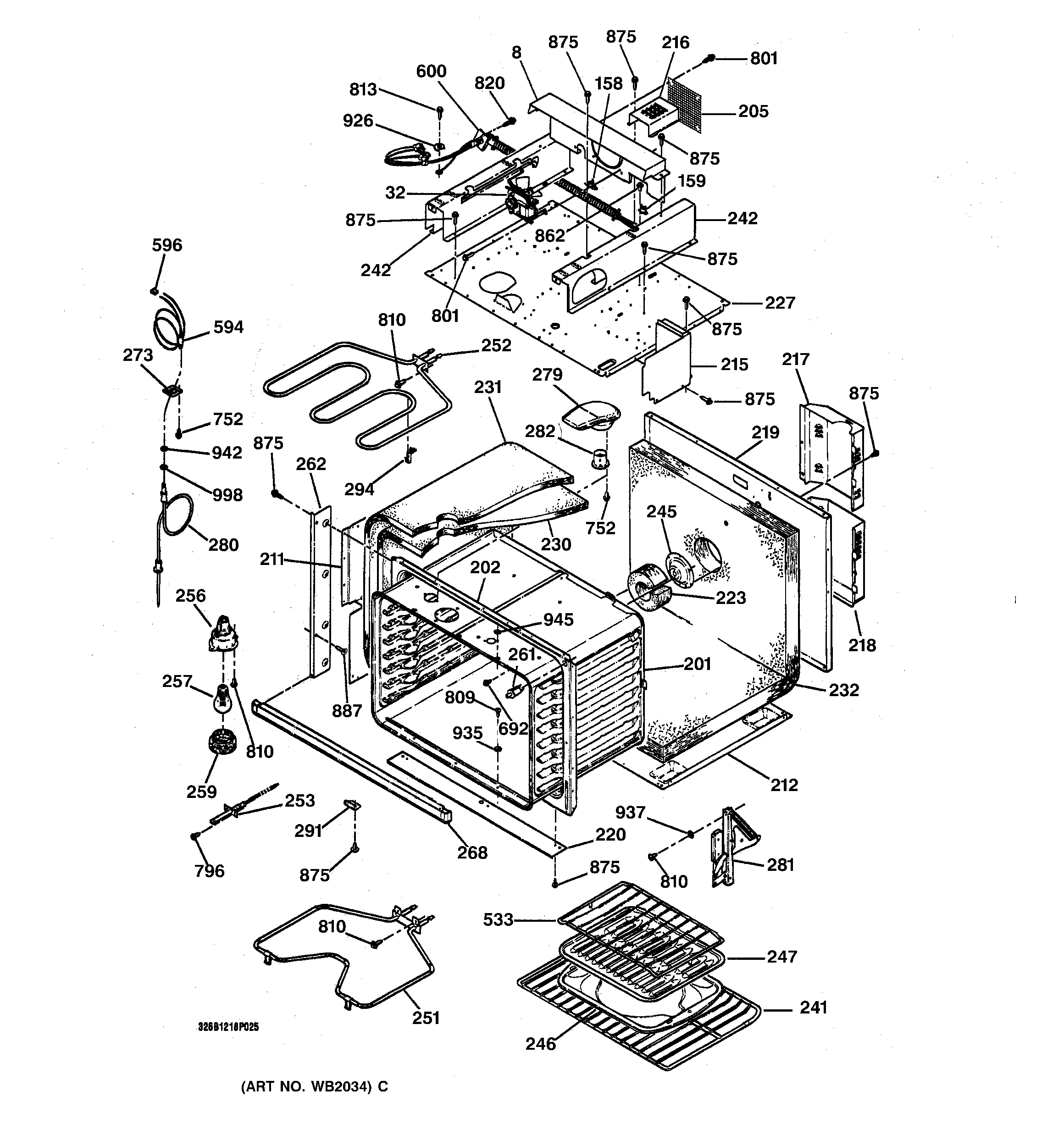

JTP95BW1BB OVEN BODY PARTS

JTP95BW1BB OVEN BODY PARTS

Written by

in

JTP95BW1BB OVEN BODY PARTS

Products

PositionProduct
8GEN WB02K5386
8GEN WB06K5063
32WB26K5061 GE Oven Upper Fan Assembly
32GEN WB20K5045
158GEN WB24K5127
159GEN WB24K5135
201GEN WB63K5177
202GEN WB63K5172
205GEN WB06K5041
211GEN WB02K5306
212GEN WB02K5305
215GEN WB34K5233
216GEN WB34K5234
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
227GEN WB02K5387
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
242GEN WB02K5384
242GEN WB02K5385
245GEN WB02K5304
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
253M/W SENSOR
256GEN WB08K5042
257GEN BUY-LOCAL
259GEN WB25K5025
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5416
262GEN WB07K5417
268GEN WB07K5425
273PROBE COVER
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
281WB14T10006 GE Oven Hinge Assembly Left
281GEN WB14K5014
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
533WB48X5108 GE Oven Roasting Rack
594GEN WB08K5056
596GEN WB08K5013
600GEN WB18K5628
692SCREW
752WB1K5200 GE Oven Screw 340531
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
926GROUND WASHER
935WB1K5174 GE Oven Washer
937GEN WB01X1140
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
