JUB248LBCX03 04 – UNIT PARTS – Aparts

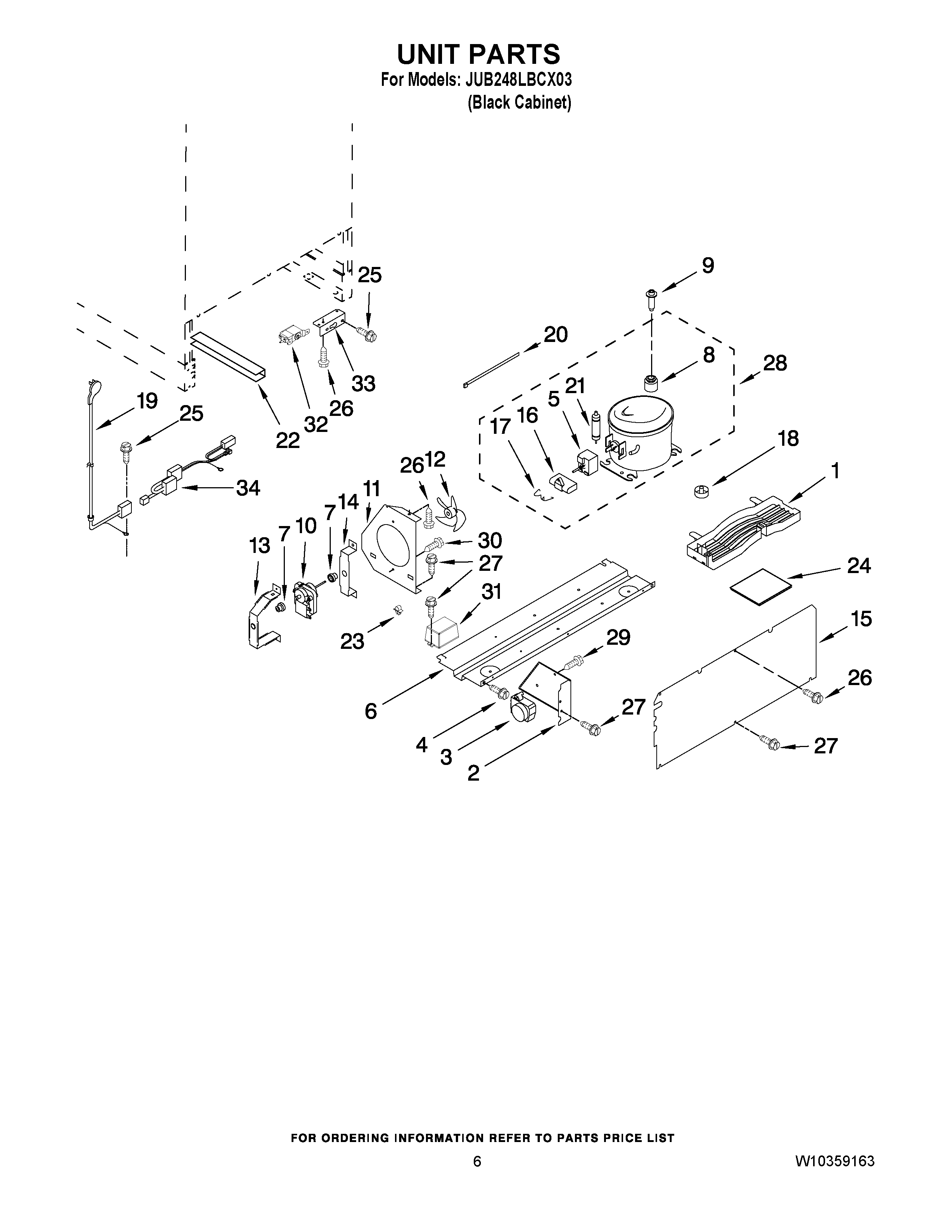

JUB248LBCX03 04 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10163193
2	BRACKET, DEFROST TIMER
3	MAY W10239390
4	MAY 4344797
5	MAY 4344776
6	MAY W10238066
7	MAY 4344778
8	MAY 4344779
9	MAY 4344780
10	FAN MOTOR, CONDENSER
11	MAY 4344782
12	MAY W10299081
13	MAY 4344784
14	MAY 4344785
15	MAY 4344786
16	MAY 4344837
17	MAY 4344836
18	MAY W10163276
19	MAY W10204676
20	MAY 4344829
21	MAY W10163273
22	MAY 4344907
23	MAY W10238022
24	Pad, Rubber
25	MAY 4344826
26	MAY 4344825
27	MAY 4344832
28	MAY 4344775
29	MAY 4344834
30	MAY 4344833
31	MAY W10238070
32	MAY W10163278
33	MAY 4344864
34	MAY W10358906
