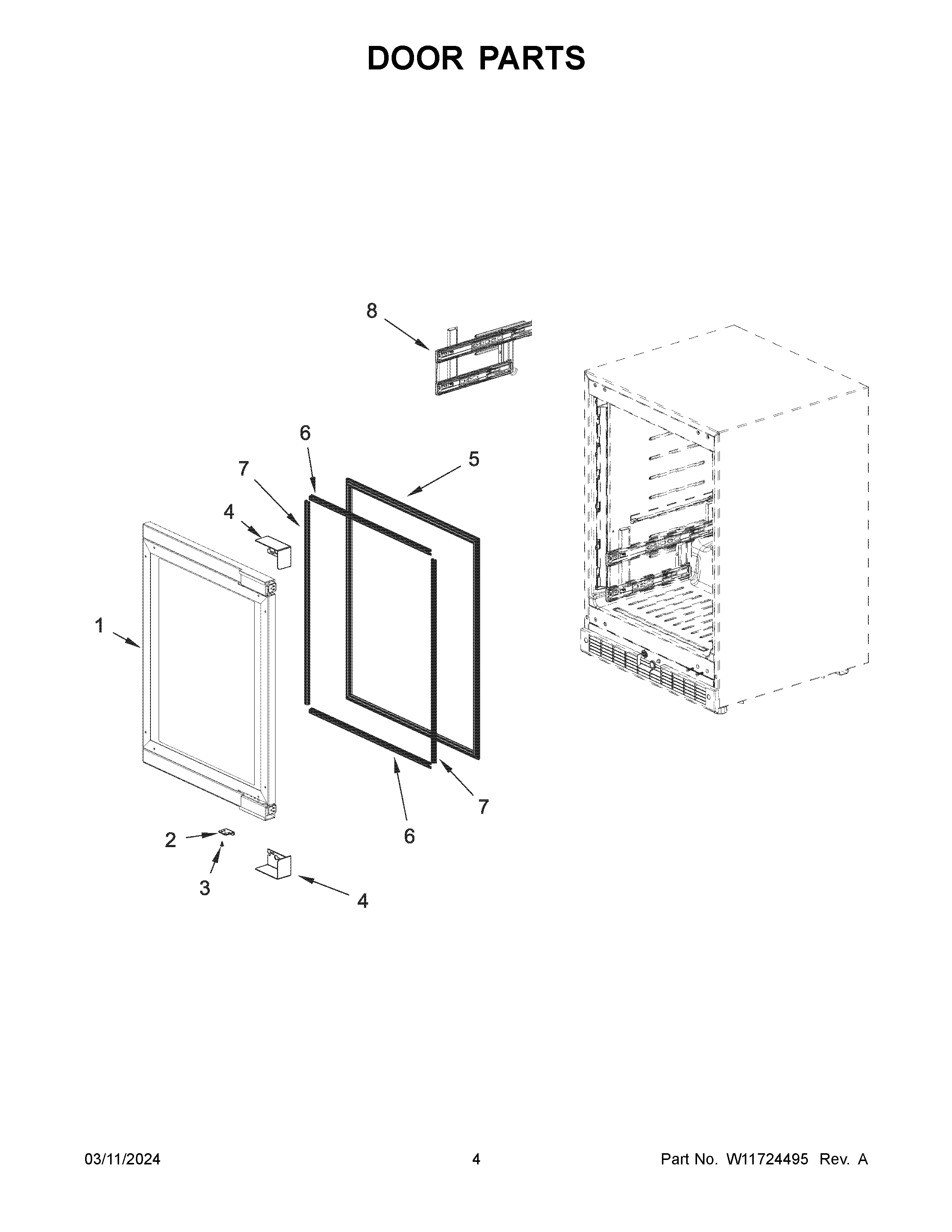

JUBFL242HX02 03 – DOOR PARTS

Written by

Products

Position	Product
1A	DOOR ASSEMBLY (RIGHT HINGE)
1	DOOR ASSEMBLY (LEFT HINGE)
2	PLATE, PUSH
3	W11675284 Whirlpool Screw
4A	W11360664 Whirlpool Refrigerator Cover
4	W11360661 Whirlpool Cover
5	W11747576 Whirlpool Gasket
6	GASKET, SASH (TOP/BOTTOM)
7	GASKET, SASH (SIDE)
8	HOLDER, RAIL (LEFT)
8A	HOLDER, RAIL (RIGHT)
