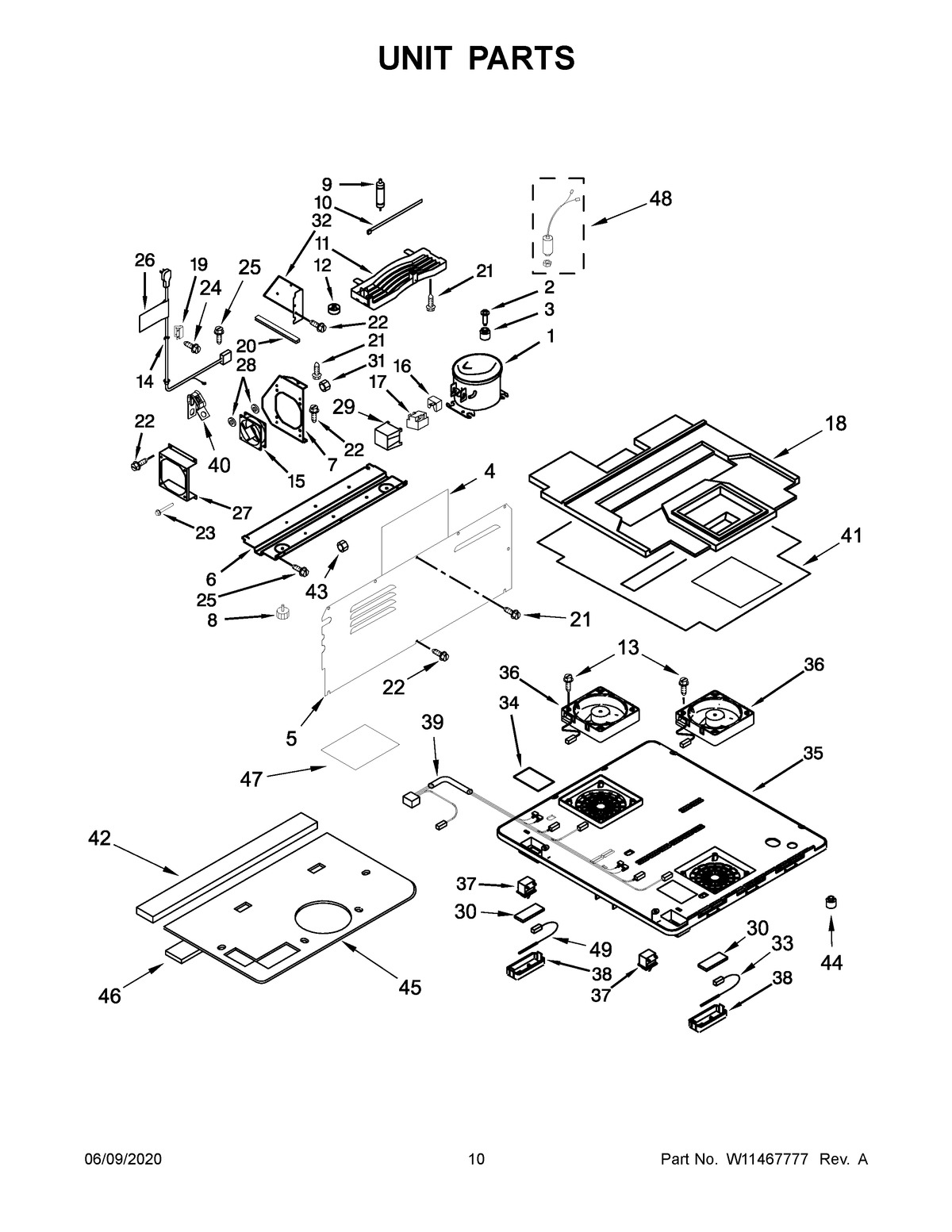

JUCFP242HL00 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	ALUMINUM TAPE
1	COMPRESSOR
2	MAY 4344780
3	MAY 4344779
4	MAY W10778963
5	MAY W11467176
6	CABINET BASE PLATE
7	MAY W10204674
8	MAY 4344763
9	MAY W10163273
10	MAY 4344829
11	MAY W10772879
12	MAY W10163276
13	MAY W10205061
14	MAY W10204676
15	MAY W10772882
16	OVERLAY RELAY
17	MAY W10287848
18	INSULATION, FAN COVER
19	CLAMP, CORD
20	MAY 4344907
21	MAY 4344825
22	MAY 4344832
23	SCREW
24	MAY W10204865
25	MAY 4344797
26	WARNING LABEL
27	MAY W11467187
28	MAY W10204688
29	MAY W10772885
30	MAY W10204948
31	NUT
32	BRACKET, DEFROST TIMER
33	MAY W10772916
34	TERMINAL PROTECTOR
35	COVER, FAN
36	MAY W10204942
37	MAY W10721454
38	MAY W10775535
39	HARNESS, FAN COVER
40	MAY W10281591
41	PLATE COVER
42	SEAL
43	SPRING WASHER
44	BUSHING, COVER
45	INSULATION COMBO
46	SEAL, COLD AIR STOP
47	SEAL, FAN COVER
48	MAY W10772895
49	TEMPERATURE SENSOR
