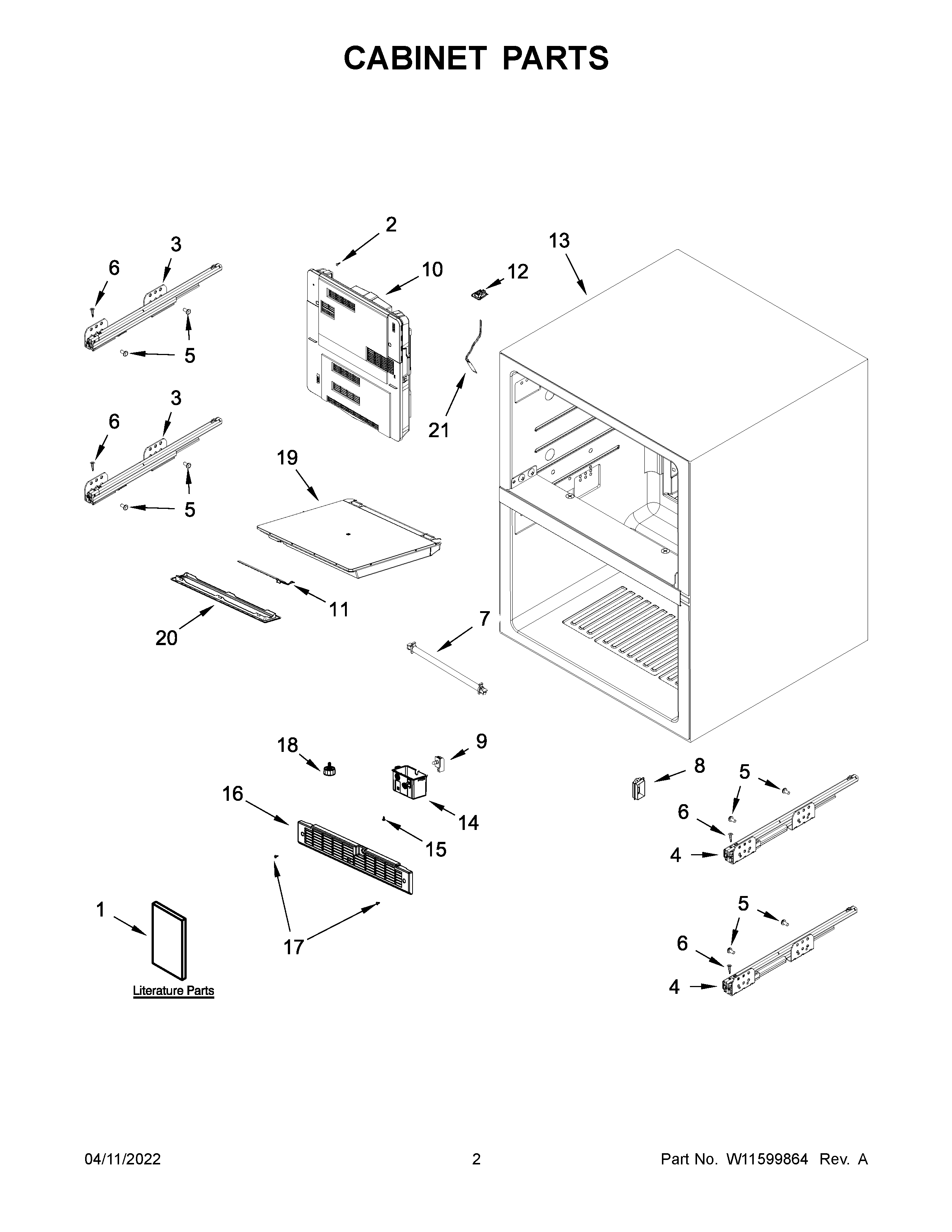

JUCFP242HL11 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE
1ATECH SHEET
1ENERGY GUIDE
2SCREW
3W11599889 Whirlpool Slide
4W11599890 Whirlpool Slide Assembly
5SCREW
6SCREW
7DEFROST HOLDER AND HEATER
8SWITCH, CASE
9W11266082 Whirlpool Switch Assembly
10COVER ASSEMBLY, EVAPORATOR
11W11263841 Whirlpool Light Bulb
12CONNECTOR, COVER
13CABINET (NOT A SERVICEABLE PART)
14ASSEMBLY, SWITCH BOX
15W11371097 Whirlpool Screw
16W11580233 Whirlpool Grille
17W11675284 Whirlpool Screw
18W11106296 Whirlpool Refrigerator Leveler
19ASSEMBLY, SEPARATOR
20W11312450 Whirlpool Light Lens
21W11359415 Whirlpool Bi-metal Defrost
