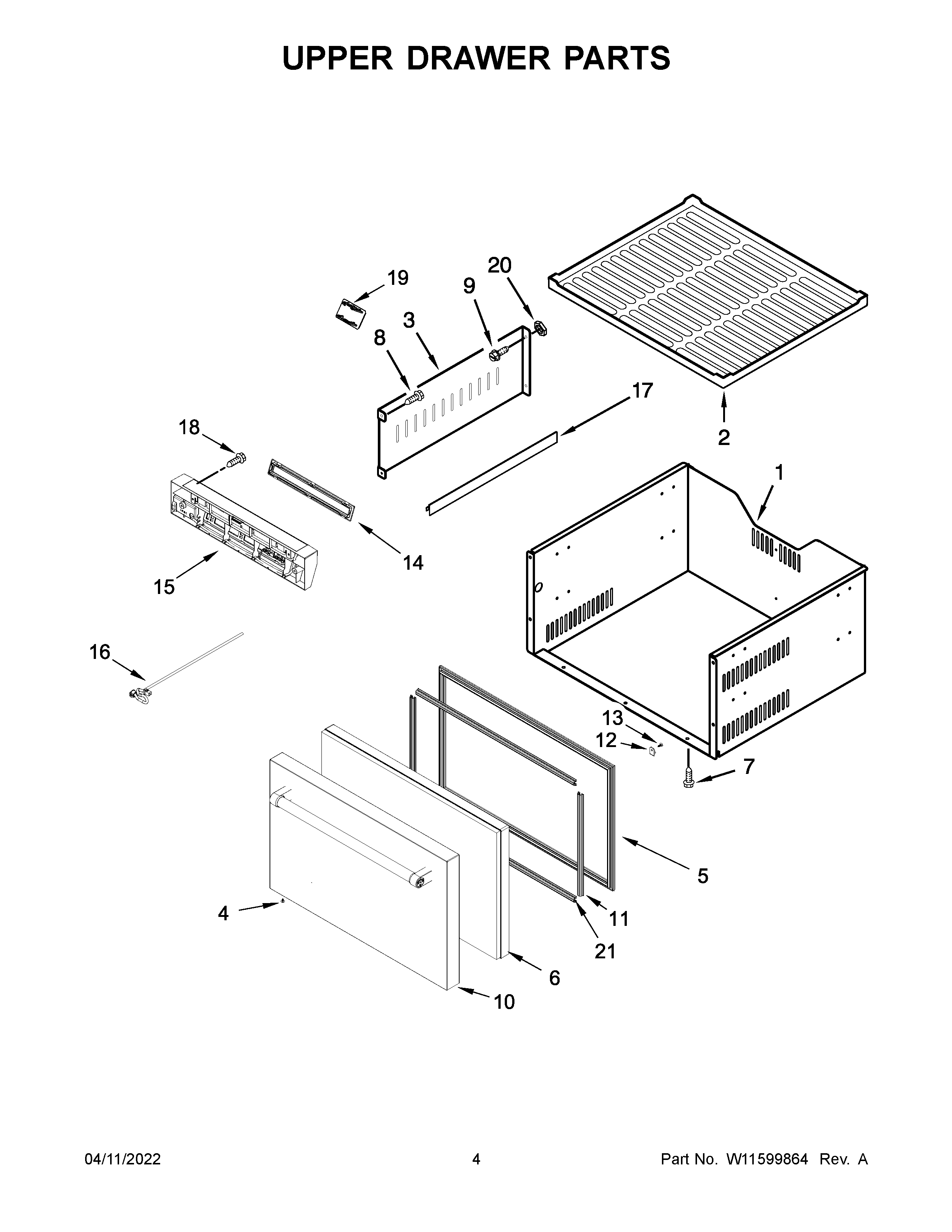

JUCFP242HL11 03 – UPPER DRAWER PARTS
Written by
in
JUCFP242HL11 03 – UPPER DRAWER PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
ASSEMBLY, COMPLETE DOOR
1
DRAWER BOX ASSEMBLY, UPPER
2
MAT, UPPER DRAWER
3
DRAWER PARTITION
4
W11179356 Whirlpool Refrigerator Stud Handle
5
GASKET, DOOR
6
W11568830 Whirlpool Refrigerator Front Drawer
7
SCREW
8
SCREW
9
W10204810 Whirlpool Screw
10
W11594164 Whirlpool Front Drawer
11
DOOR GASKET, SHORT
12
W11579579 Whirlpool Refrigerator Plate
13
W10859467 Whirlpool Refrigerator Screw
14
W11312450 Whirlpool Light Lens
15
CONTROL PANEL ASSEMBLY
16
W11592421 Whirlpool Wire Harness
17
SUPPORT, LEAD WIRE
18
W10204808 Whirlpool Refrigerator Screw
19
LAMP COVER
20
W10204920 Whirlpool Refrigerator Nut
21
GASKET, SASH (TOP/BOTTOM)
←
