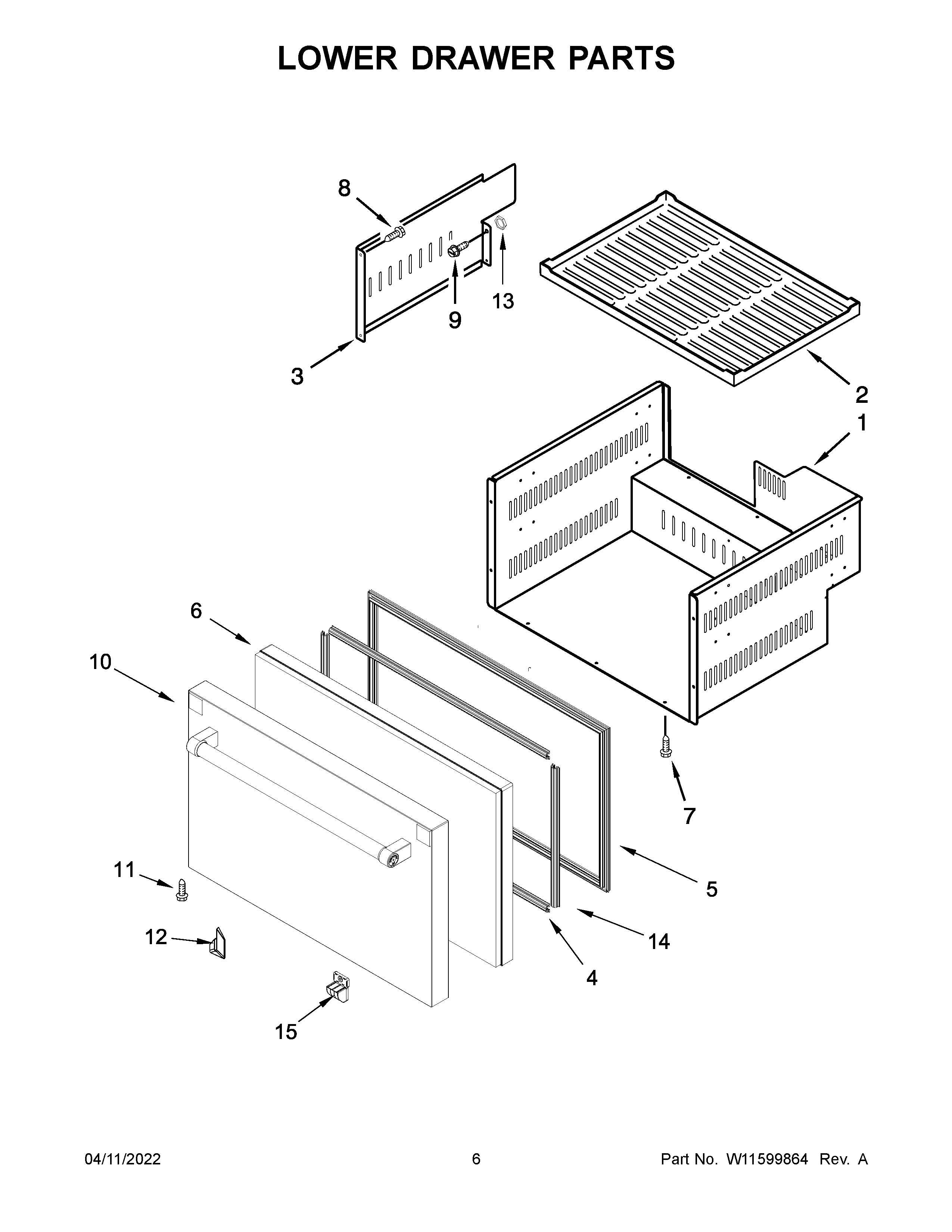

JUCFP242HL11 04 – LOWER DRAWER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	ASSEMBLY, COMPLETE DOOR
1	DRAWER BOX ASSEMBLY, LOWER
2	MAT, LOWER DRAWER
3	DRAWER PARTITION
4	GASKET, SASH (TOP/BOTTOM)
5	GASKET
6	W11568937 Whirlpool Refrigerator Drawer
7	SCREW
8	SCREW
9	W10204810 Whirlpool Screw
10	W11594164 Whirlpool Front Drawer
11	W10319185 Whirlpool Screw
12	W11422825 Whirlpool Refrigerator Nameplate
13	W10204920 Whirlpool Refrigerator Nut
14	DOOR GASKET, SHORT
15	W11678576 Whirlpool Bracket
