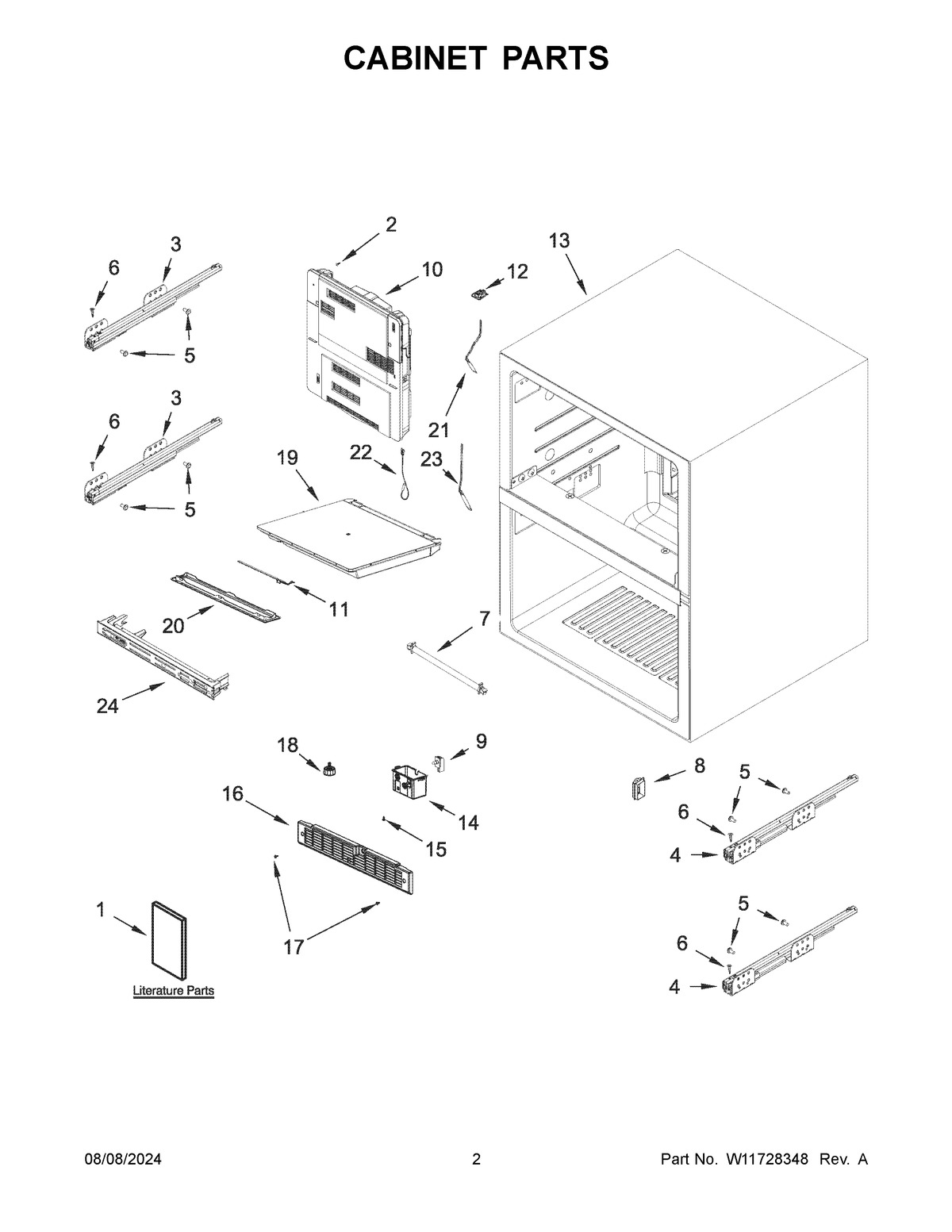

JUCFP242HL12 02 – CABINET PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	ENERGY GUIDE
2	SCREW
3	W11599889 Whirlpool Slide
4	W11599890 Whirlpool Slide Assembly
5	SCREW
6	SCREW
7	DEFROST HOLDER AND HEATER
8	SWITCH, CASE
9	W11266082 Whirlpool Switch Assembly
10	COVER ASSEMBLY, EVAPORATOR
11	W11497301 Whirlpool Refrigerator Light Bulb
12	CONNECTOR, COVER
13	CABINET (NOT A SERVICABLE PART)
14	ASSEMBLY, SWITCH BOX
15	W11371097 Whirlpool Screw
16	W11580233 Whirlpool Grille
17	W11675284 Whirlpool Screw
18	W11106296 Whirlpool Refrigerator Leveler
19	ASSEMBLY, SEPARATOR
20	W11312450 Whirlpool Light Lens
21	W11359415 Whirlpool Bi-metal Defrost
22	SENSOR PCC (UPPER)
23	SENSOR PCC (LOWER)
24	ASSEMBLY, TRIM
