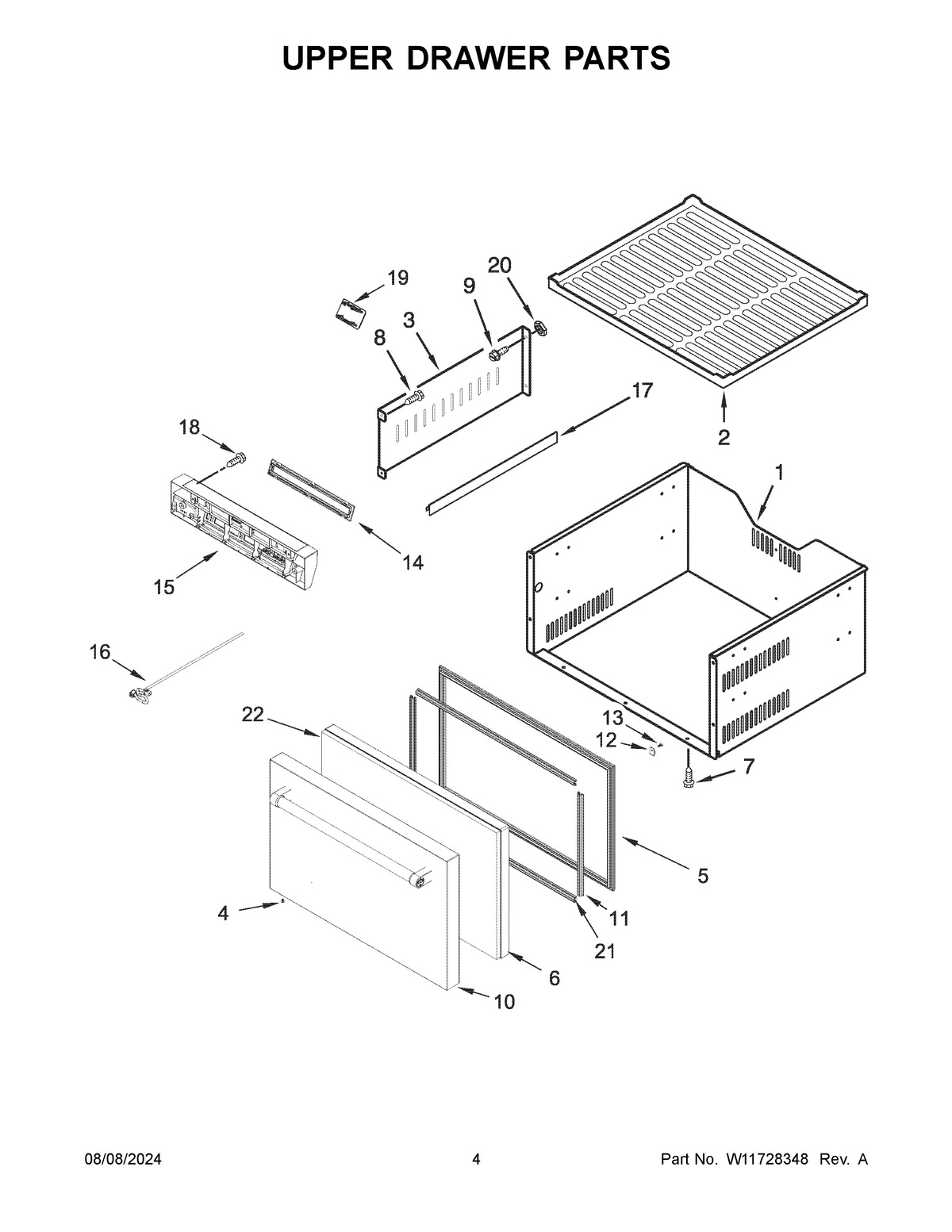

JUCFP242HL12 03 – UPPER DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	ASSEMBLY, COMPLETE DOOR
1	DRAWER BOX ASSEMBLY, UPPER
2	MAT, UPPER DRAWER
3	DRAWER PARTITION
4	W11179356 Whirlpool Refrigerator Stud Handle
5	GASKET, DOOR
6	TOP FOAMED DOOR
7	SCREW
8	SCREW
9	W10204810 Whirlpool Screw
10	W11594164 Whirlpool Front Drawer
11	DOOR GASKET, SHORT
12	W11579579 Whirlpool Refrigerator Plate
13	W10859467 Whirlpool Refrigerator Screw
14	W11312450 Whirlpool Light Lens
15	CONTROL PANEL ASSEMBLY
16	W11592421 Whirlpool Wire Harness
17	SUPPORT, LEAD WIRE
18	W10204808 Whirlpool Refrigerator Screw
19	LAMP COVER
20	W10204920 Whirlpool Refrigerator Nut
21	GASKET, SASH (TOP/BOTTOM)
22	INSULATION, DOOR
