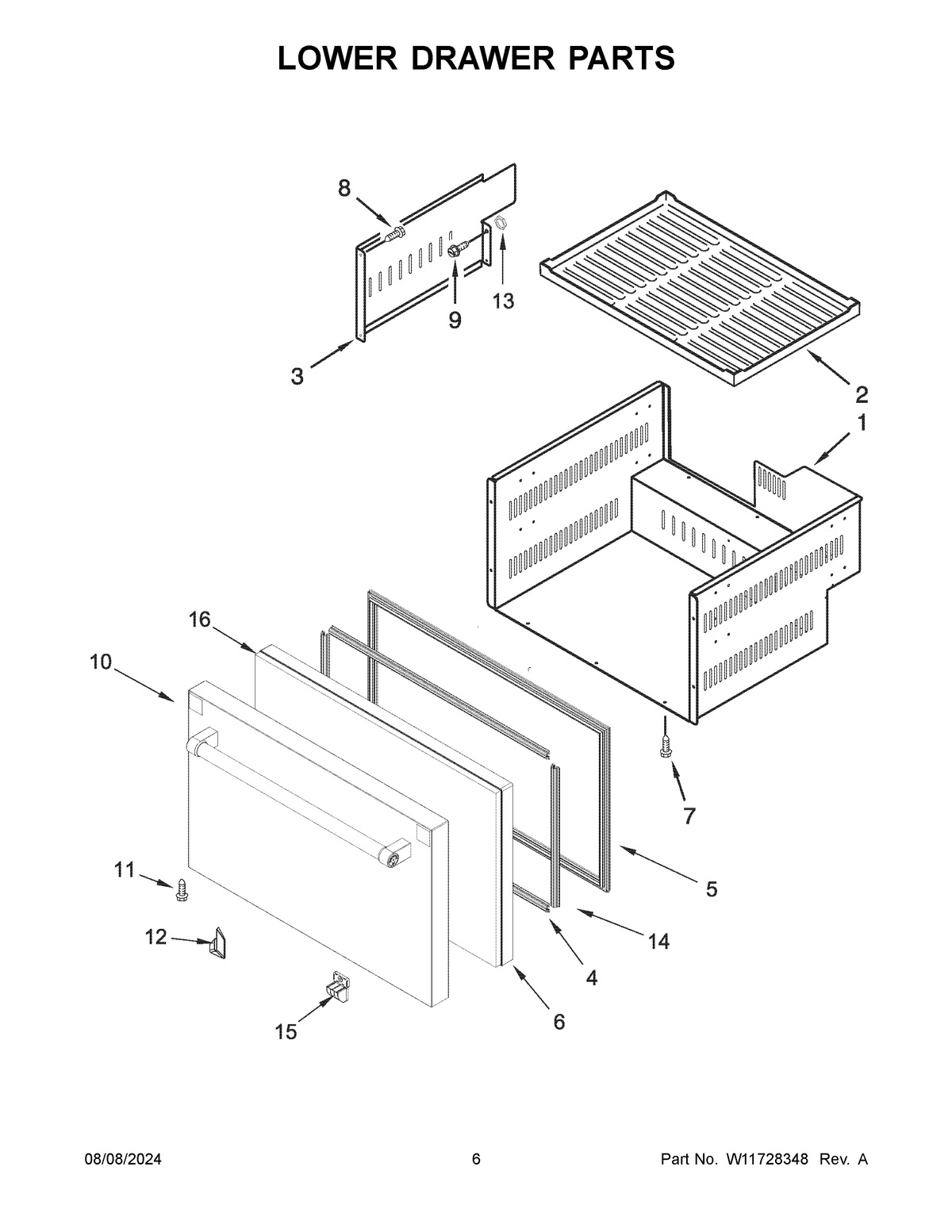

JUCFP242HL12 04 – LOWER DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	ASSEMBLY, COMPLETE DOOR
1	DRAWER BOX ASSEMBLY, LOWER
2	MAT, LOWER DRAWER
3	DRAWER PARTITION
4	GASKET, SASH (TOP/BOTTOM)
5	GASKET
6	DOOR ASSEMBLY, LOWER
7	SCREW
8	SCREW
9	W10204810 Whirlpool Screw
10	W11594164 Whirlpool Front Drawer
11	W10319185 Whirlpool Screw
12	W11422825 Whirlpool Refrigerator Nameplate
13	W10204920 Whirlpool Refrigerator Nut
14	DOOR GASKET, SHORT
15	PLATE, PUSH
16	INSULATION, DOOR
