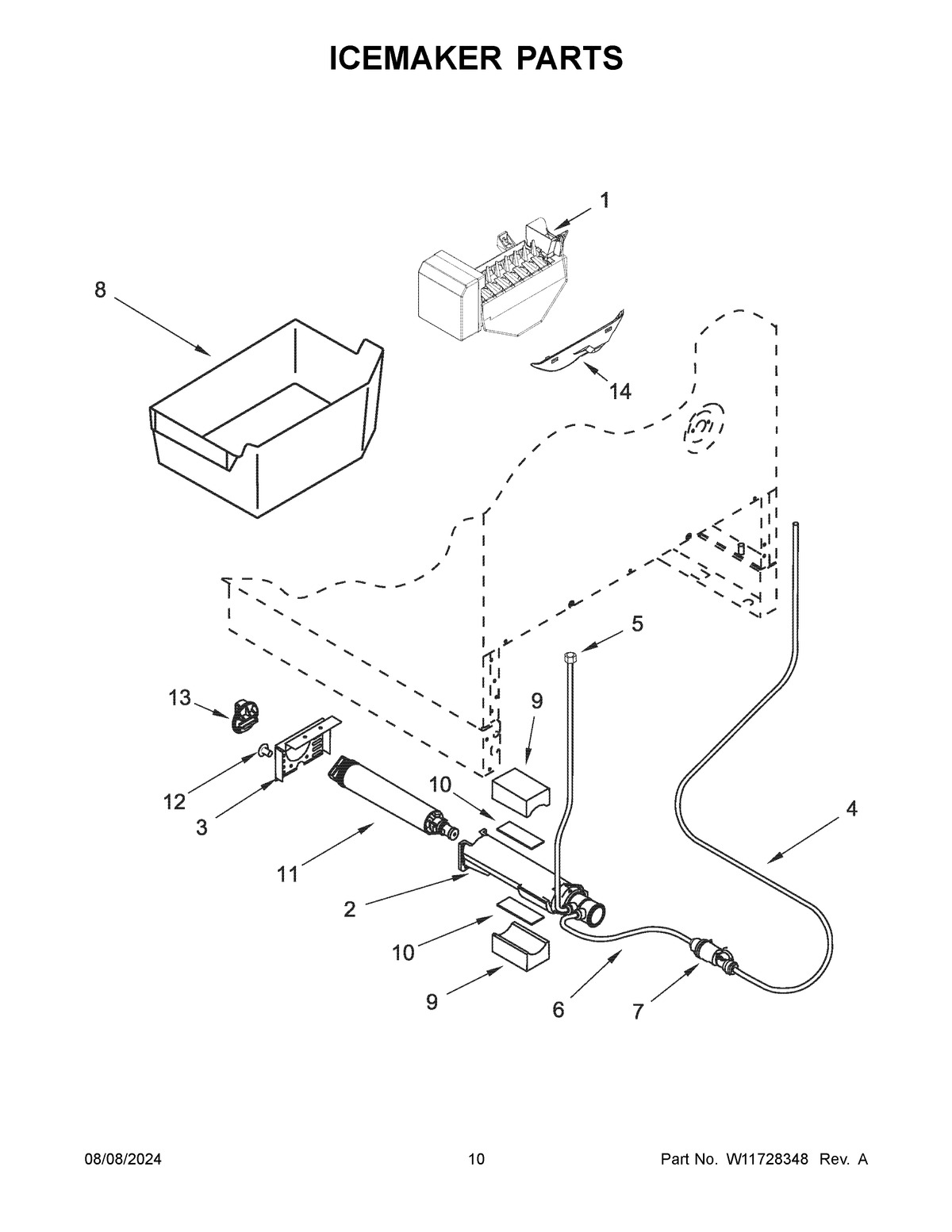

JUCFP242HL12 06 – ICEMAKER PARTS

Products

Position	Product
1	W11707764 Whirlpool Refrigerator Ice Maker
2	W11594479 Whirlpool Housing
3	BRACKET, FILTER
4	W11580303 Whirlpool Fitting
5	W11632305 Whirlpool Water Tube
6	W11632308 Whirlpool Water Tube
7	W11700301 Whirlpool Valve Assembly
8	W11594484 Whirlpool Ice Container
9	BLOCK, FILTER
10	W10281589 Whirlpool Refrigerator Tape
11	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
12	SCREW
13	WP2186494B Whirlpool Refrigerator Filter Cap
14	W10281552 Whirlpool Refrigerator Extension
