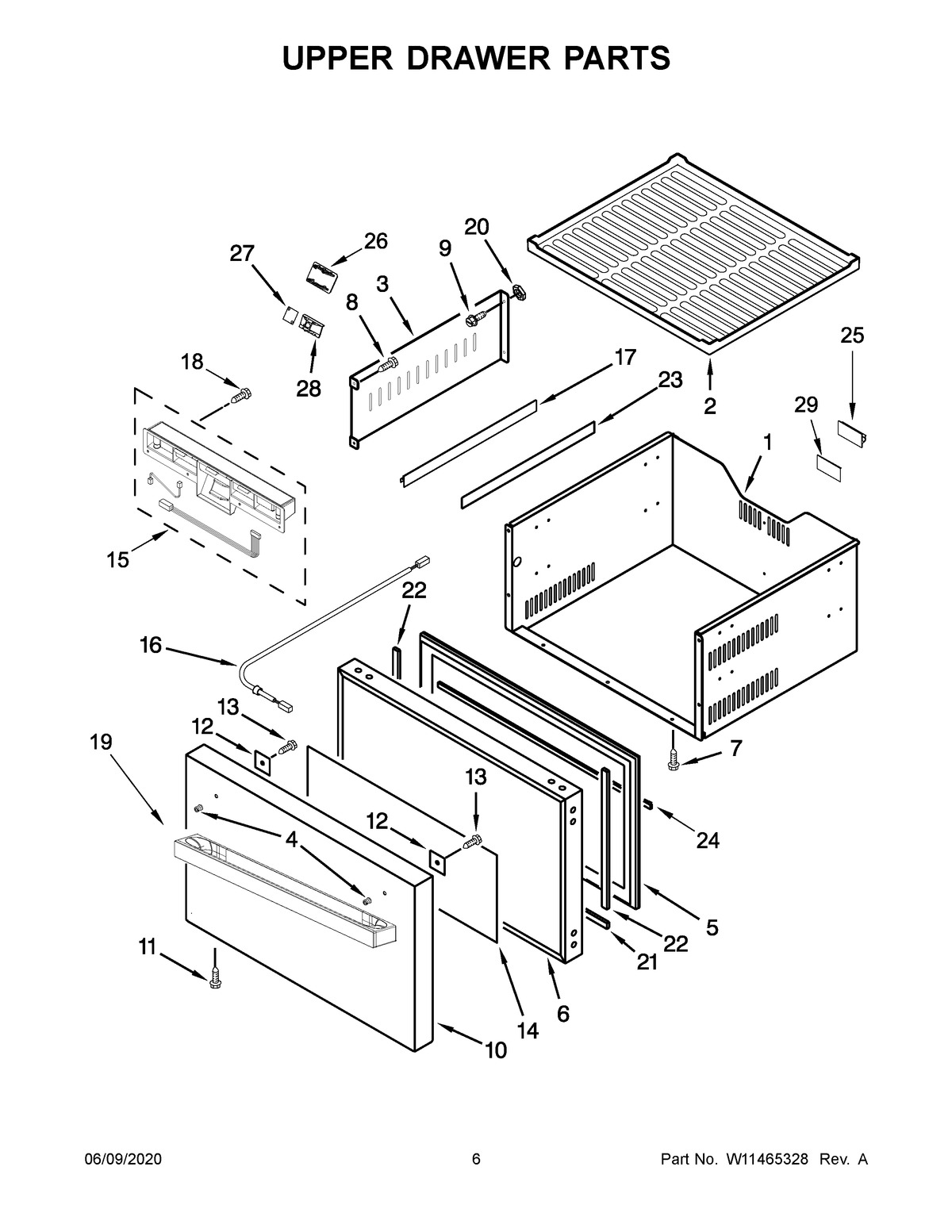

JUCFP242HM00 04 – UPPER DRAWER PARTSadmin2025-04-26T09:20:32+00:00JUCFP242HM00 04 – UPPER DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | DRAWER BOX ASSEMBLY, UPPER |
| 2 | MAT, UPPER DRAWER |
| 3 | DRAWER PARTITION |
| 4 | STUD, MOUNTING |
| 5 | GASKET |
| 6 | TOP FOAMED DOOR ASSEMBLY |
| 7 | SCREW |
| 8 | MAY W10204809 |
| 9 | SCREW |
| 10 | WRAP, STAINLESS STEEL |
| 11 | SCREW |
| 12 | MAY W10622815 |
| 13 | MAY W10204866 |
| 14 | WRAP SPACER |
| 15 | ASSEMBLY, FAN COVER |
| 16 | HARNESS, DISPLAY TO INDICATOR |
| 17 | SUPPORT, LEAD WIRE |
| 18 | SCREW |
| 19 | HANDLE (NOIR) |
| 20 | NUT |
| 21 | DOOR GASKET, LONG |
| 22 | DOOR GASKET, SHORT |
| 23 | WIRE SUPPORT TAPE |
| 24 | COLD AIR SEAL |
| 25 | SUPPORT, WIRE |
| 26 | LAMP COVER |
| 27 | LED LAMP |
| 28 | LAMP HOLDER |
| 29 | WIRE SUPPORT TAPE |
