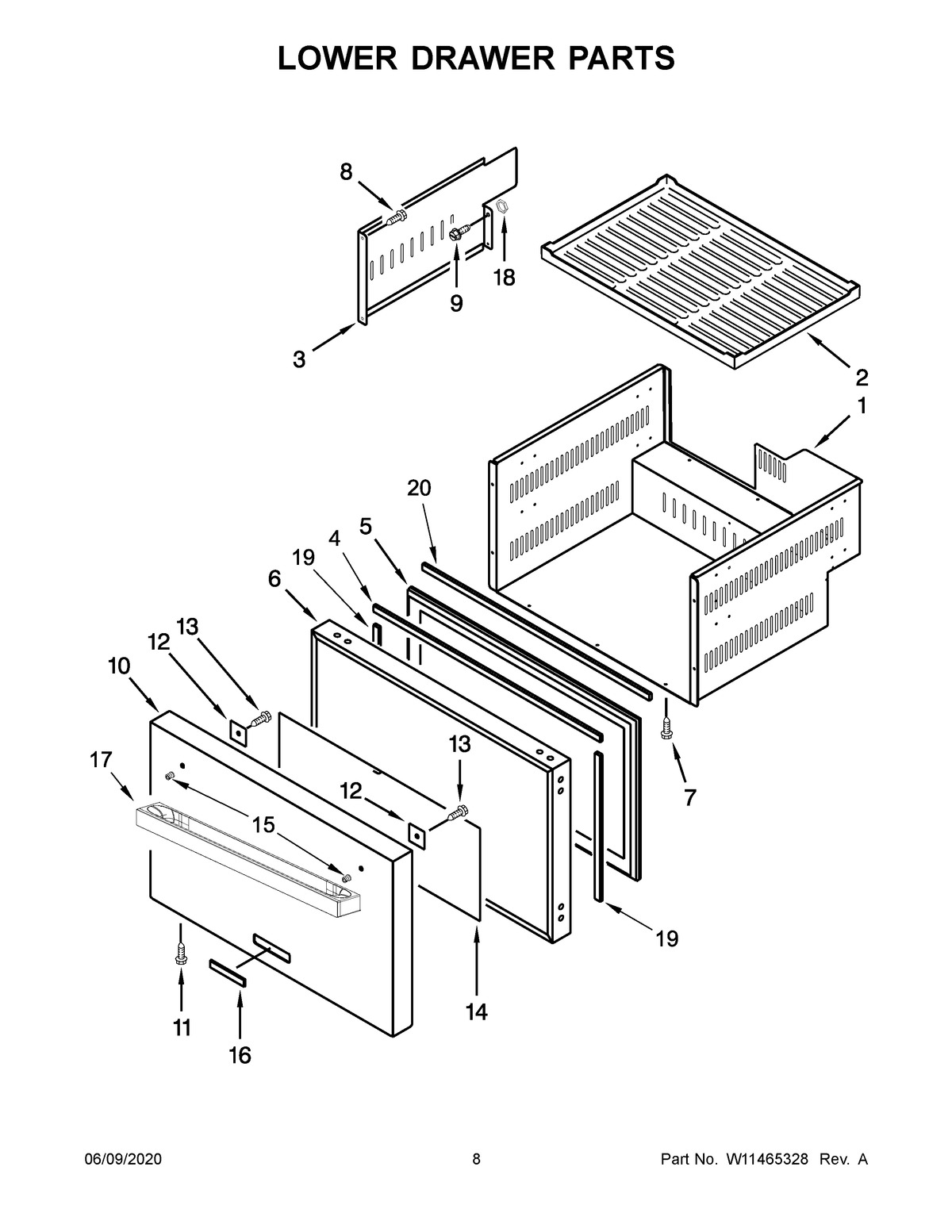

JUCFP242HM00 05 – LOWER DRAWER PARTS

Products

Position	Product
1	MAY W11467173
2	MAT, LOWER DRAWER
3	BOTTOM DRAWER PARTITION
4	DOOR GASKET, LONG
5	GASKET
6	BOTTOM FOAMED DOOR ASSEMBLY
7	SCREW
8	MAY W10204809
9	SCREW
10	WRAP, STAINLESS STEEL
11	SCREW
12	MAY W10622815
13	MAY W10204866
14	WRAP SPACER
15	STUD, MOUNTING
16	NAME PLATE
17	HANDLE (NOIR)
18	NUT
19	DOOR GASKET, SHORT
20	SEAL, COLD AIR
