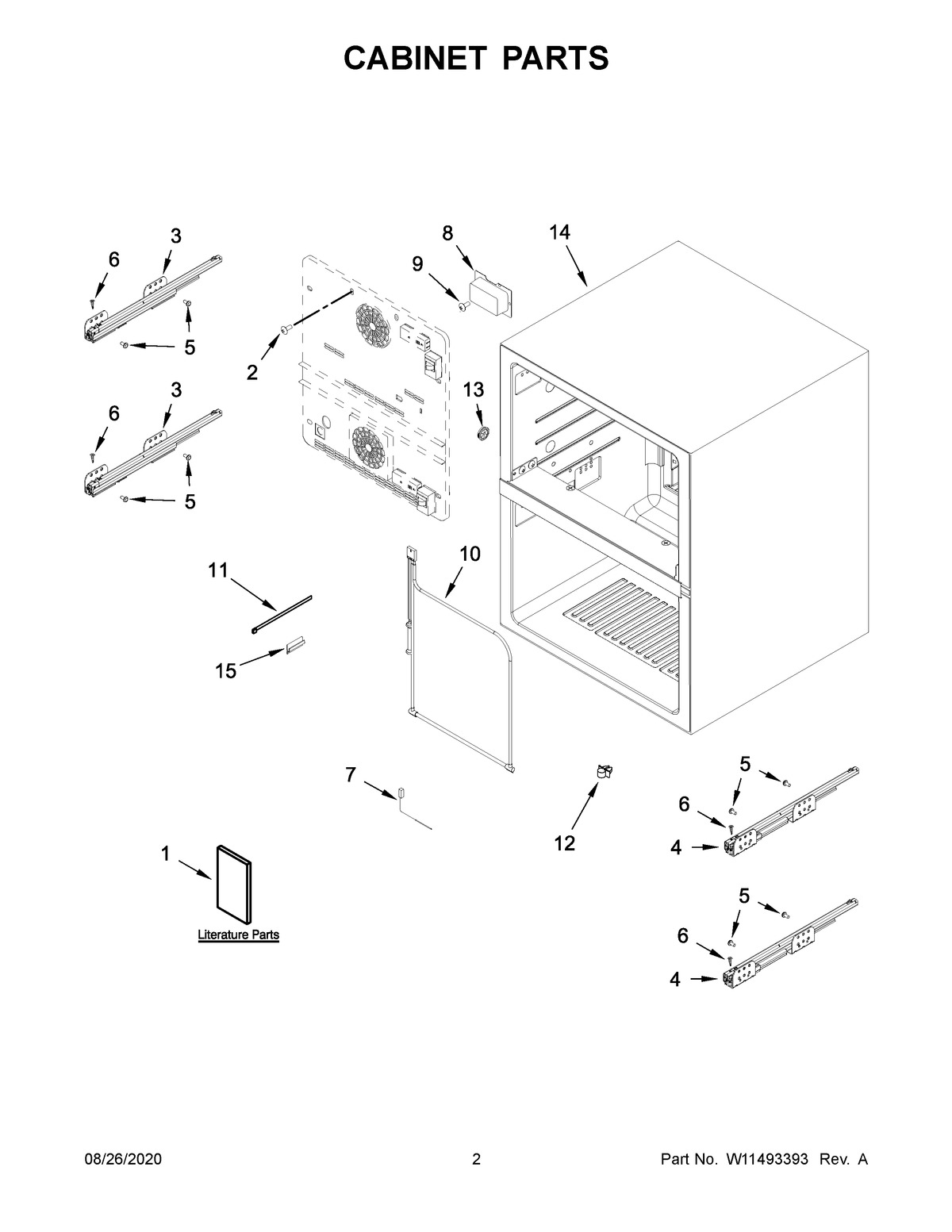

JUCFP242HM01 02 – CABINET PARTS

JUCFP242HM01 02 – CABINET PARTS

Written by

in

JUCFP242HM01 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1ATECH SHEET
2MAY W10774183
3RAIL ASSEMBLY, LEFT HAND
4RAIL ASSEMBLY, RIGHT HAND
5SCREW
6MAY W10204809
7MAY W10772858
8MAY W10788689
9MAY 4344826
10THERMAL FUSE ASSEMBLY
11MAY 4344829
12MAY W10238022
13MAY W10621514
14LINER (NOT A SERVICEABLE PART)
15CLIP, DEFROST HEATER
