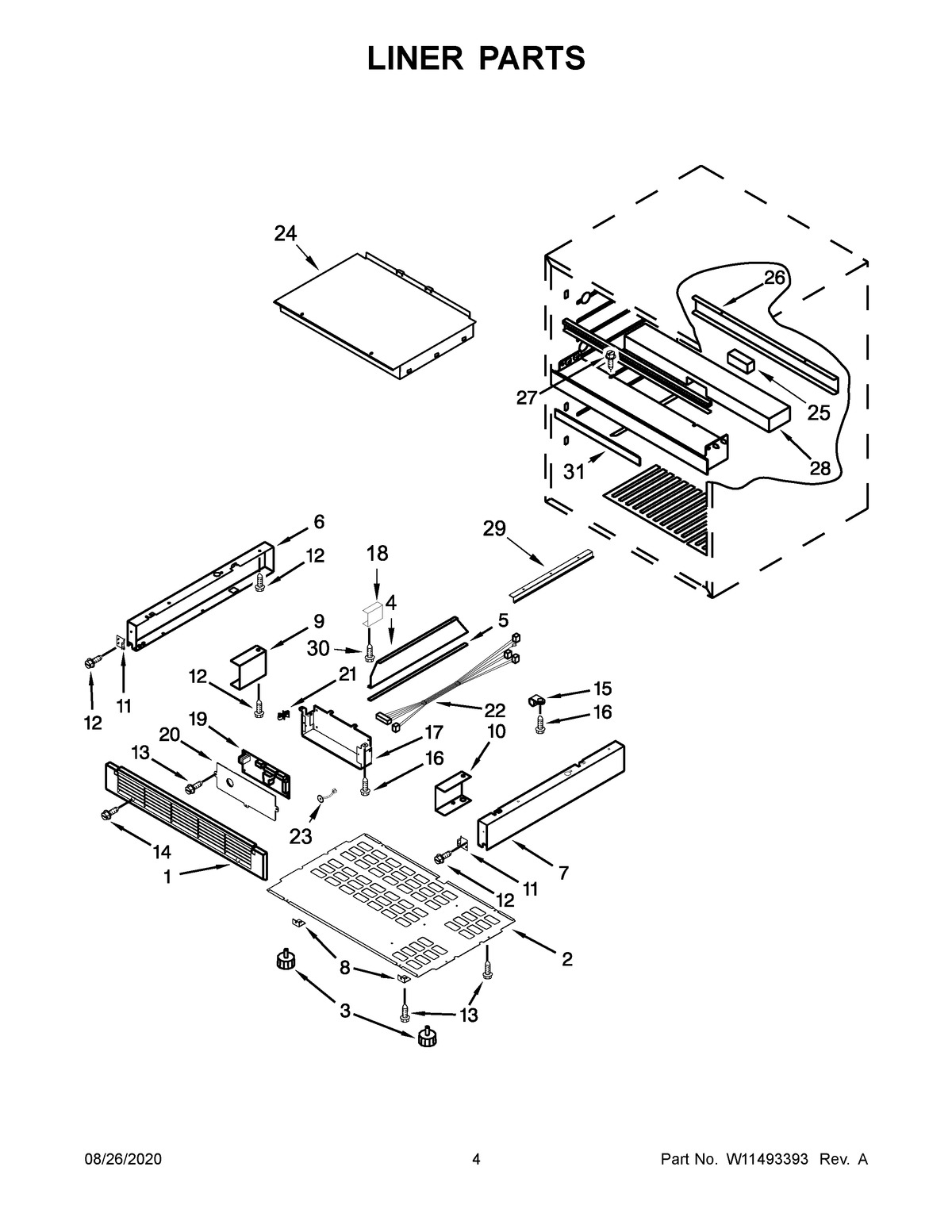

JUCFP242HM01 03 – LINER PARTS

Products

Position	Product
1	KICK PLATE
2	COVER, BOTTOM
3	MAY 4344763
4	MAY W10778959
5	MAY 4344823
6	MAY W10621525
7	MAY W10621526
8	MAY W10239388
9	MAY 4344820
10	MAY 4344821
11	KICK PLATE MOUNT
12	MAY 4344797
13	MAY 4344826
14	MAY W10319184
15	MAY W10270482
16	MAY 4344825
17	MAY W10772866
18	MAY W10788699
19	MAIN PCB
20	COVER, SPEAKER SENSOR
21	PCB STANDOFF
22	MAY W10772870
23	SPEAKER
24	MULLION BODY ASSEMBLY
25	MULLION INSULATION
26	MULLION CASE COVER
27	SCREW
28	MULLION INSULATION
29	MAY W11493080
30	SCREW
31	MULLION CASE INSULATION FRONT
