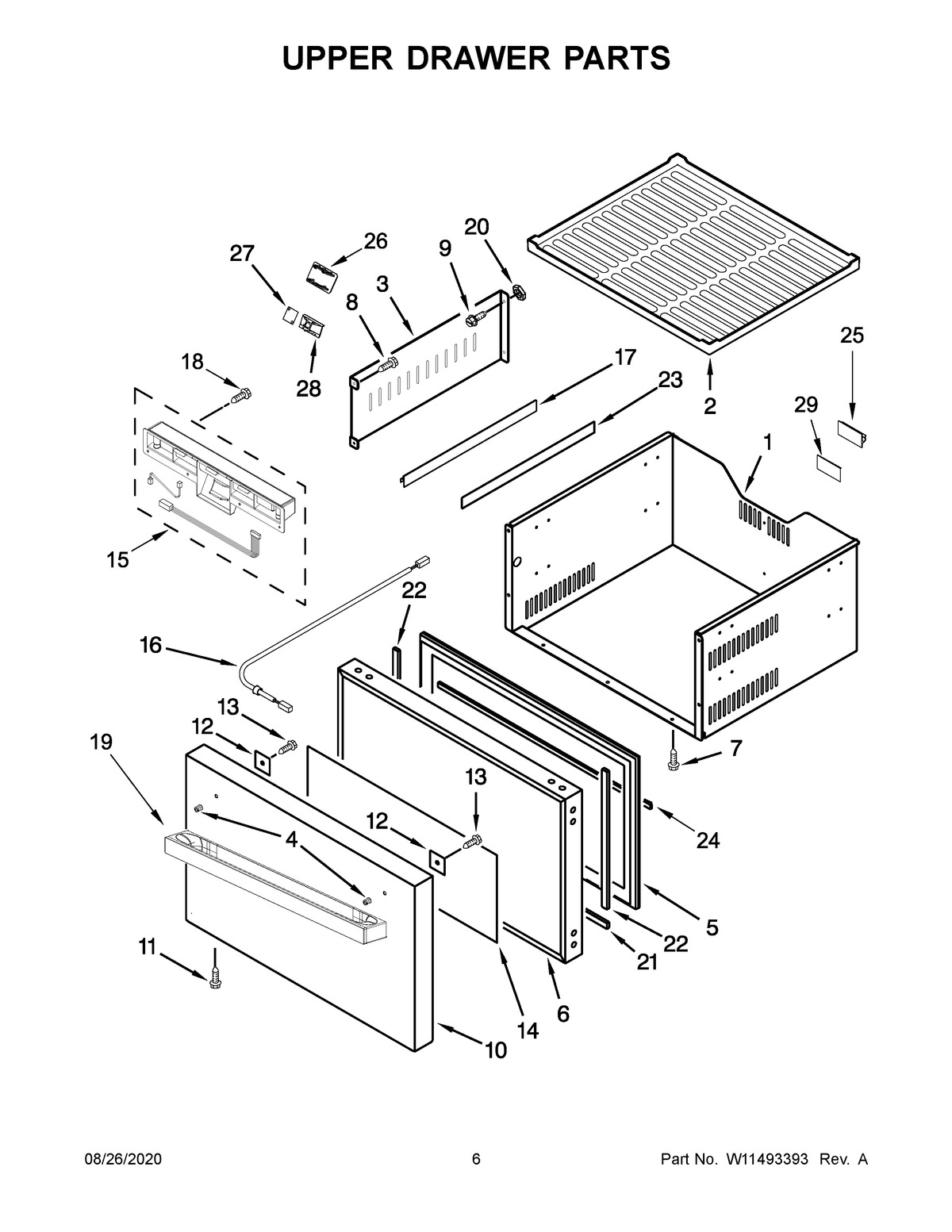

JUCFP242HM01 04 – UPPER DRAWER PARTS

Products

Position	Product
1	DRAWER BOX ASSEMBLY, UPPER
2	MAT, UPPER DRAWER
3	DRAWER PARTITION
4	STUD, MOUNTING
5	GASKET
6	TOP FOAMED DOOR ASSEMBLY
7	SCREW
8	MAY W10204809
9	SCREW
10	WRAP, STAINLESS STEEL
11	SCREW
12	MAY W10622815
13	MAY W10204866
14	WRAP SPACER
15	MAY W11493061
16	HARNESS, DISPLAY TO INDICATOR
17	SUPPORT, LEAD WIRE
18	SCREW
19	HANDLE (NOIR)
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
23	WIRE SUPPORT TAPE
24	COLD AIR SEAL
25	SUPPORT, WIRE
26	LAMP COVER
27	LED LAMP
28	LAMP HOLDER
29	WIRE SUPPORT TAPE
