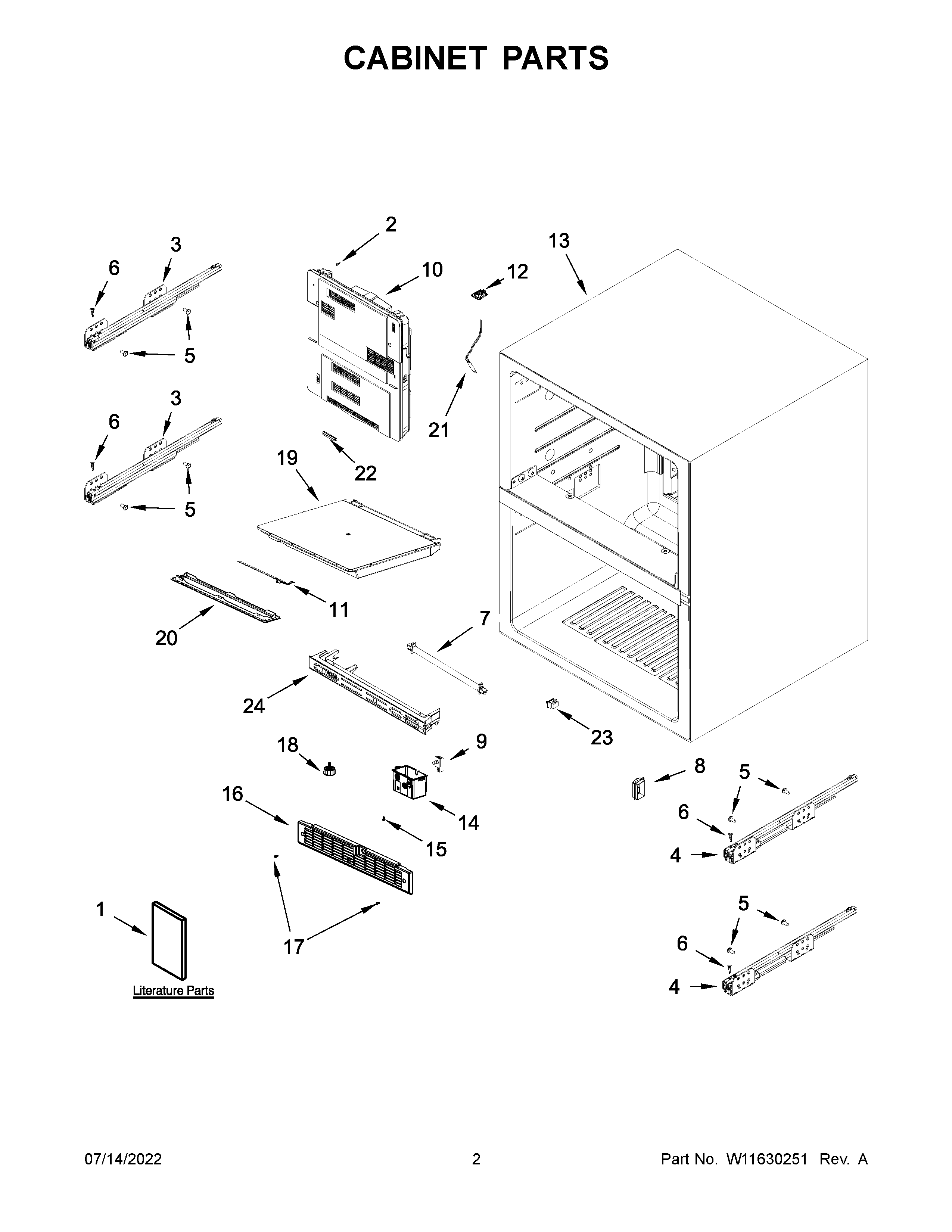

JUCFP242HM11 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1BUSE AND CARE GUIDE
1ATECH SHEET
2SCREW
3W11599889 Whirlpool Slide
4W11599890 Whirlpool Slide Assembly
5SCREW
6SCREW
7W11359416 Whirlpool Heater
8SWITCH, CASE
9W11266082 Whirlpool Switch Assembly
10W11568769 Whirlpool Evaporator Cover
11LED
12CONNECTOR, COVER
13ASSEMBLY, SWITCH BOX
14W11371097 Whirlpool Screw
15W11265404 Whirlpool Heater
16CABINET (NOT A SERVICEABLE PART)
17W11675284 Whirlpool Screw
18W11106296 Whirlpool Refrigerator Leveler
19ASSEMBLY, SEPARATOR
20W11312450 Whirlpool Light Lens
21W11359415 Whirlpool Bi-metal Defrost
22COVER PIECE, EVAPORATOR
23W11579510 Whirlpool Refrigerator Switch
24W11579511 Whirlpool Trim
