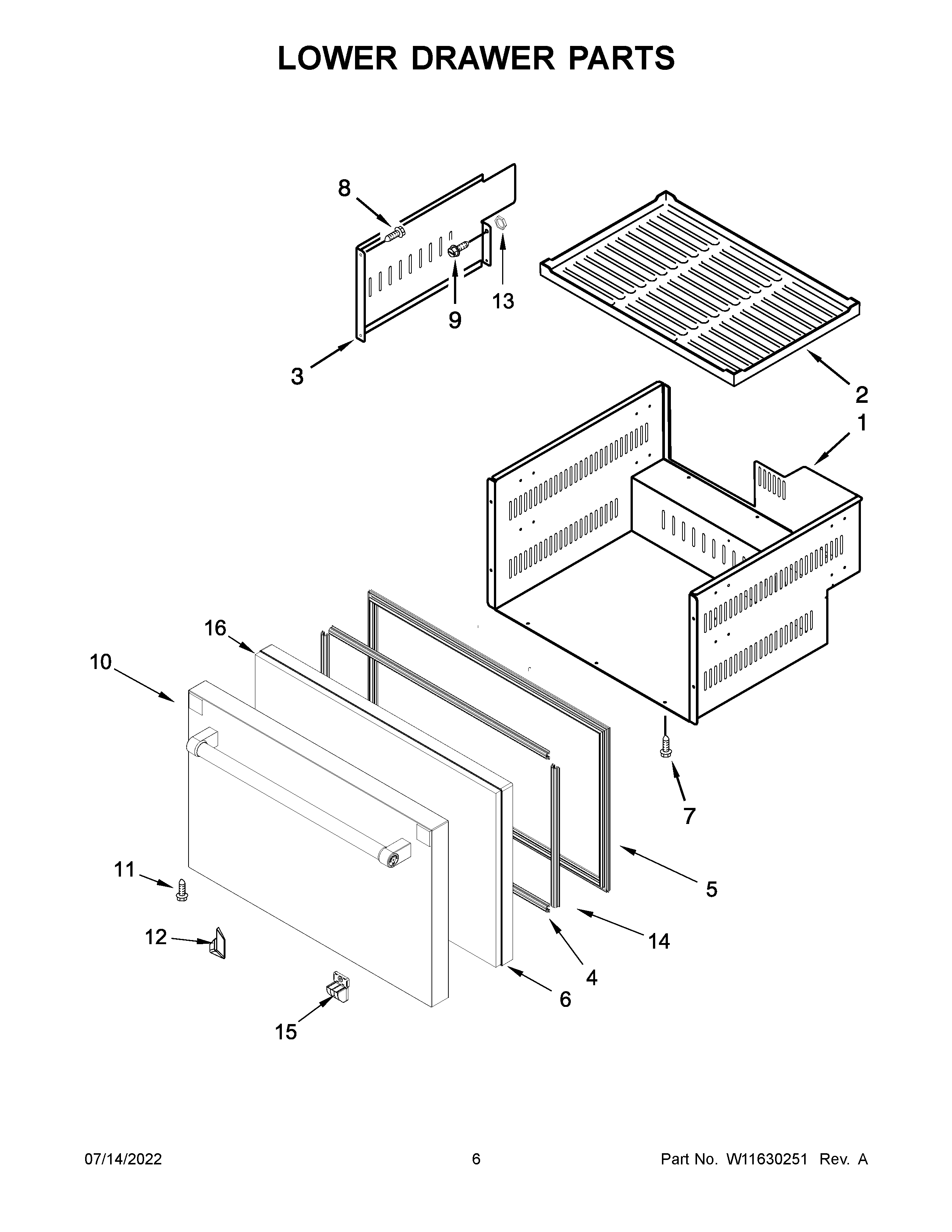

JUCFP242HM11 04 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIASSEMBLY, COMPLETE DOOR
1DRAWER BOX ASSEMBLY, LOWER
2MAT, LOWER DRAWER
3DRAWER PARTITION
4GASKET, SASH (TOP/BOTTOM)
5GASKET
6W11568937 Whirlpool Refrigerator Drawer
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10W11594164 Whirlpool Front Drawer
11W10319185 Whirlpool Screw
12W11422825 Whirlpool Refrigerator Nameplate
13W10204920 Whirlpool Refrigerator Nut
14DOOR GASKET, SHORT
15W11678576 Whirlpool Bracket
16INSULATION, DOOR
