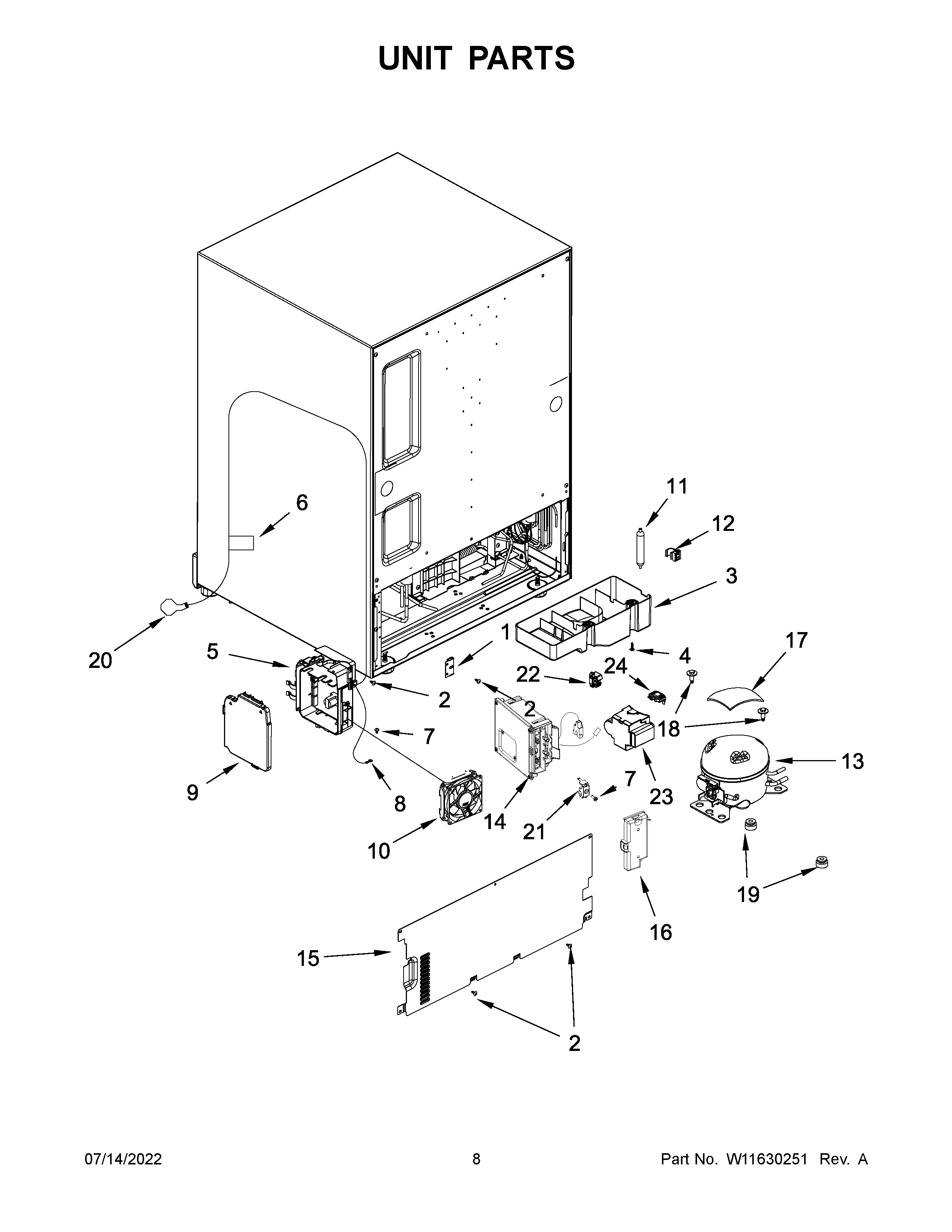

JUCFP242HM11 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	CLAMP, CORD
2	W11371097 Whirlpool Screw
3	WATER PAN, EVAPORATOR
4	SCREW
5	W11568810 Whirlpool Control Box
7	4344826 Whirlpool Refrigerator Screw
8	W11266077 Whirlpool Washer
9	W11313206 Whirlpool Refrigerator Cover
10	W11360536 Whirlpool Refrigerator Evaporator Motor
11	W11109499 Whirlpool Refrigerator Tube
12	CLAMP
13	COMPRESSOR
14	W11592422 Whirlpool Refrigerator Inverter Box
15	PANEL, COVER
16	COVER, SIDE
17	COMPRESSOR, RUBBER
18	W10772873 Whirlpool Screw
19	MOUNT, COMPRESSOR
20	W11618463 Whirlpool Power Cord
21	STOPPER
22	W11596023 Whirlpool Start Device
23	COVER
24	PROTECTOR, MOTOR
