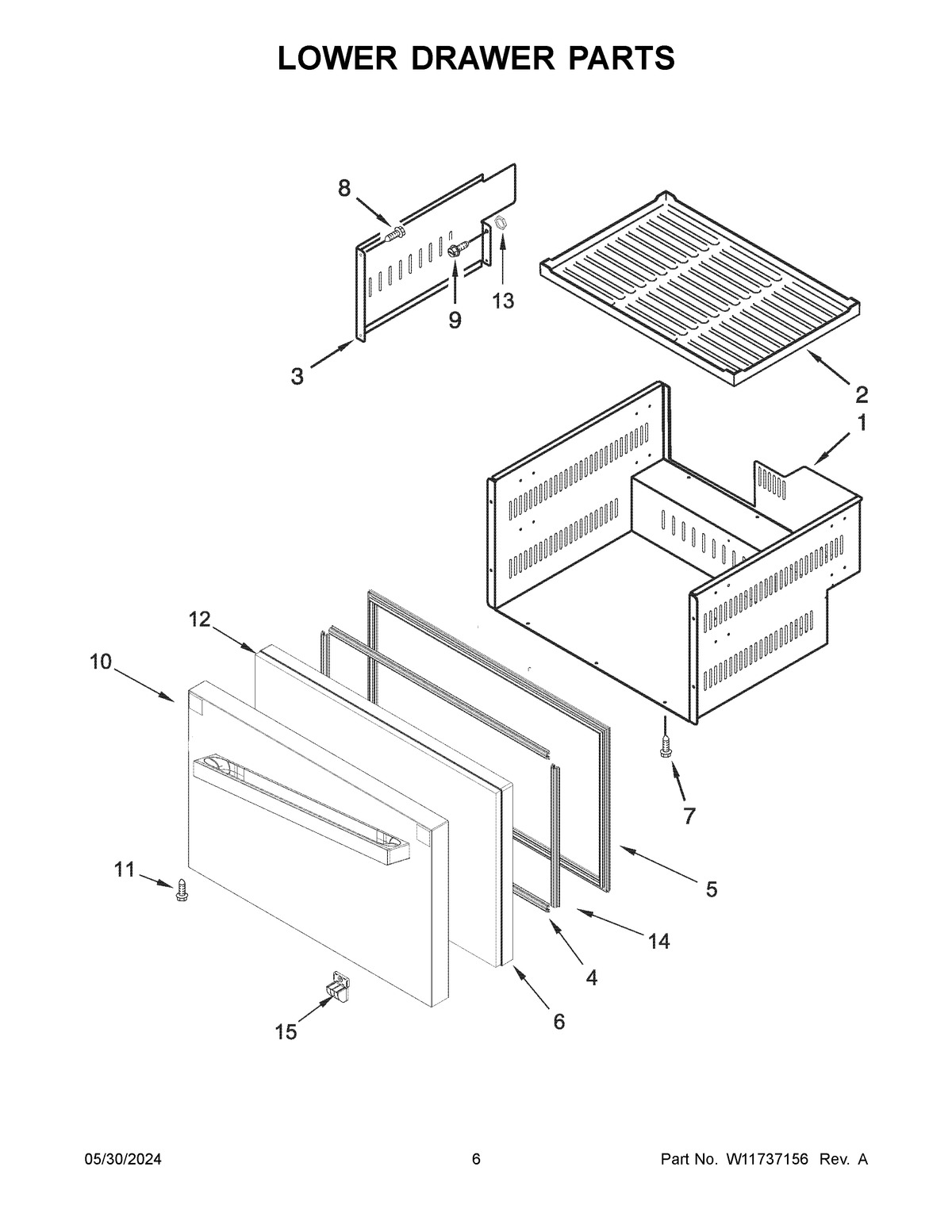

JUCFP242HM12 04 – LOWER DRAWER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIASSEMBLY, COMPLETE DOOR
1DRAWER BOX ASSEMBLY, LOWER
2MAT, LOWER DRAWER
3DRAWER PARTITION
4GASKET, SASH (TOP/BOTTOM)
5GASKET
6DOOR ASSEMBLY, LOWER
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10WRAP, STAINLESS STEEL
11W10319185 Whirlpool Screw
12INSULATION, DOOR
13W10204920 Whirlpool Refrigerator Nut
14DOOR GASKET, SHORT
15PLATE, PUSH
