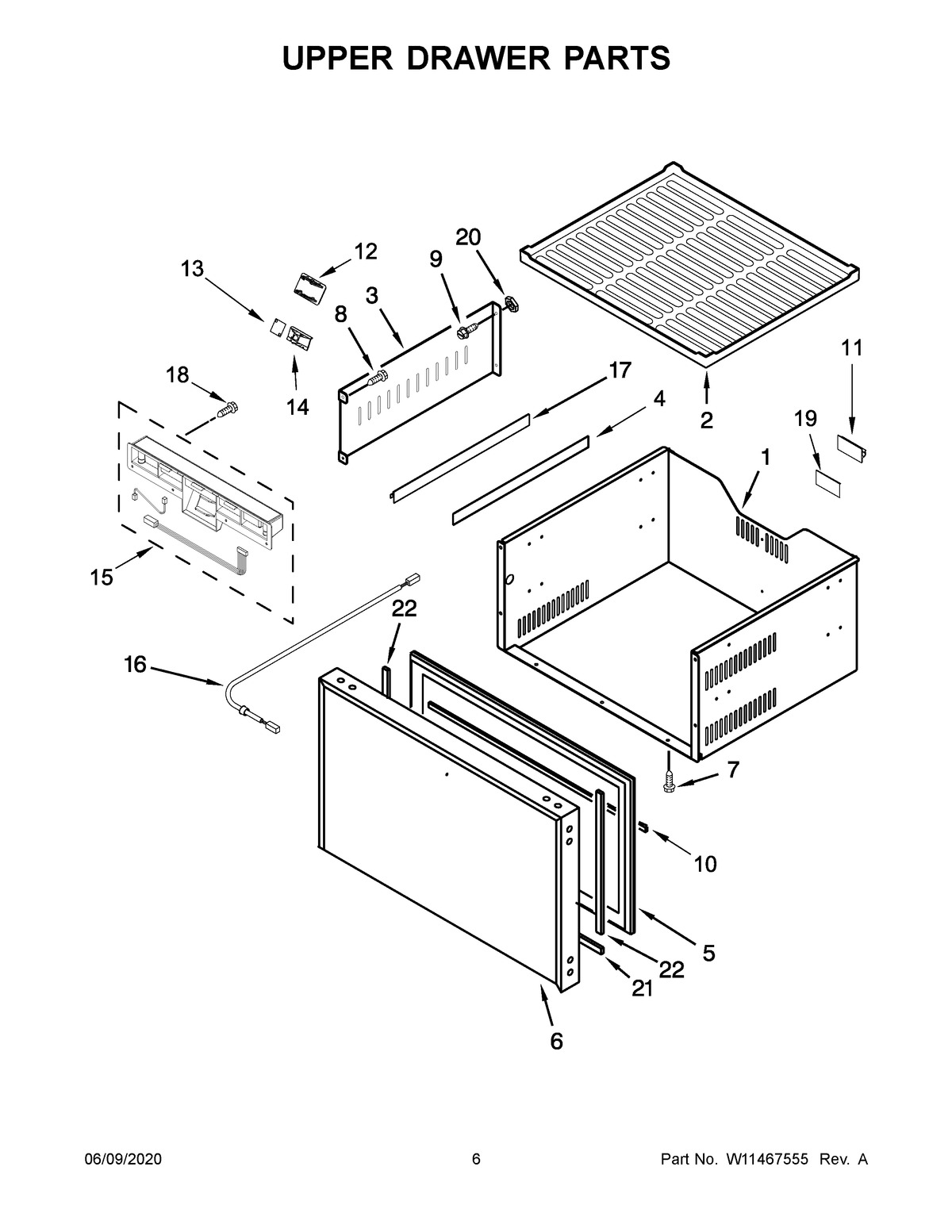

JUCFP242HX00 04 – UPPER DRAWER PARTS

JUCFP242HX00 04 – UPPER DRAWER PARTS

Written by

in

JUCFP242HX00 04 – UPPER DRAWER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10788702
1DRAWER BOX ASSEMBLY, UPPER
2MAT, UPPER DRAWER
3DRAWER PARTITION
4WIRE SUPPORT TAPE
5GASKET
6TOP FOAMED DOOR ASSEMBLY
7SCREW
8MAY W10204809
9SCREW
10COLD AIR SEAL
11SUPPORT, WIRE
12LAMP COVER
13LED LAMP
14LAMP HOLDER
15ASSEMBLY, FAN COVER
16HARNESS, DISPLAY TO INDICATOR
17SUPPORT, LEAD WIRE
18SCREW
19WIRE SUPPORT TAPE
20NUT
21DOOR GASKET, LONG
22DOOR GASKET, SHORT
