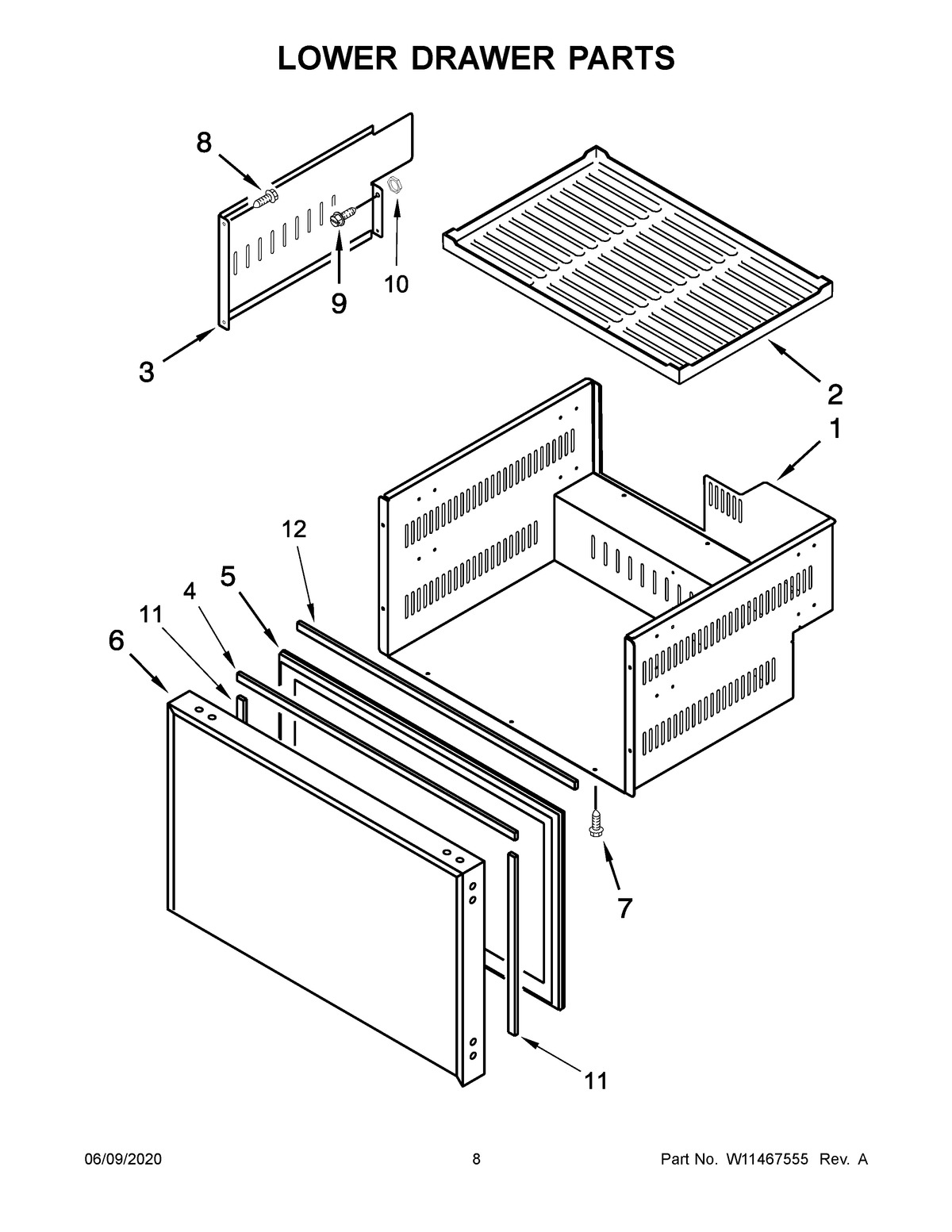

JUCFP242HX00 05 – LOWER DRAWER PARTS

JUCFP242HX00 05 – LOWER DRAWER PARTS

Written by

in

JUCFP242HX00 05 – LOWER DRAWER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10788702
1	MAY W11467173
2	MAT, LOWER DRAWER
3	BOTTOM DRAWER PARTITION
4	DOOR GASKET, LONG
5	GASKET
6	BOTTOM FOAMED DOOR ASSEMBLY
7	SCREW
8	MAY W10204809
9	SCREW
10	NUT
11	DOOR GASKET, SHORT
12	SEAL, COLD AIR
