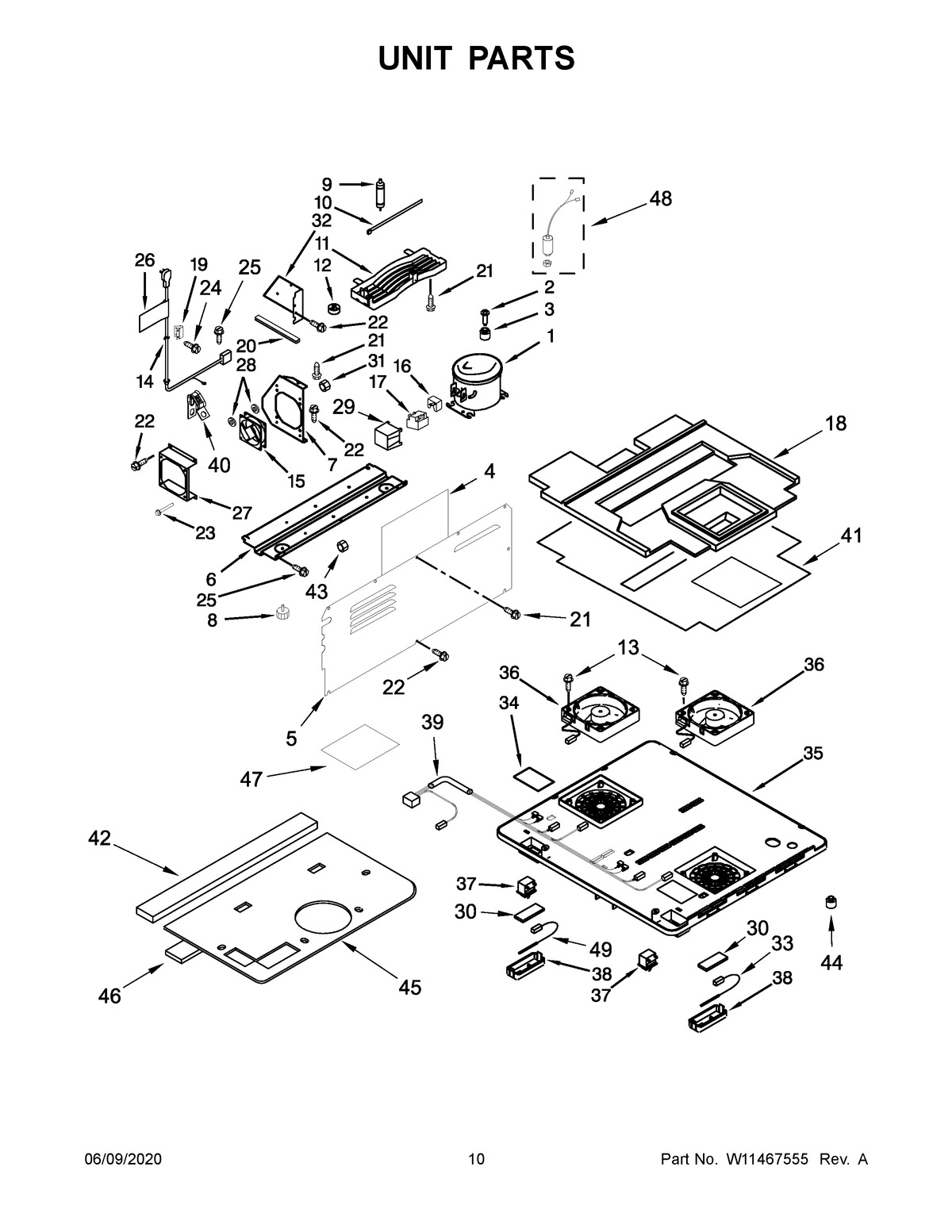

JUCFP242HX00 06 – UNIT PARTS
Written by
in
JUCFP242HX00 06 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
ALUMINUM TAPE
1
COMPRESSOR
2
MAY 4344780
3
MAY 4344779
4
MAY W10778963
5
MAY W11467176
6
CABINET BASE PLATE
7
MAY W10204674
8
MAY 4344763
9
MAY W10163273
10
MAY 4344829
11
MAY W10772879
12
MAY W10163276
13
MAY W10205061
14
MAY W10204676
15
MAY W10772882
16
OVERLAY RELAY
17
MAY W10287848
18
INSULATION, FAN COVER
19
CLAMP, CORD
20
MAY 4344907
21
MAY 4344825
22
MAY 4344832
23
SCREW
24
MAY W10204865
25
MAY 4344797
26
WARNING LABEL
27
MAY W11467187
28
MAY W10204688
29
MAY W10772885
30
MAY W10204948
31
NUT
32
BRACKET, DEFROST TIMER
33
MAY W10772916
34
TERMINAL PROTECTOR
35
COVER, FAN
36
MAY W10204942
37
MAY W10721454
38
MAY W10775535
39
HARNESS, FAN COVER
40
MAY W10281591
41
PLATE COVER
42
SEAL
43
SPRING WASHER
44
BUSHING, COVER
45
INSULATION COMBO
46
SEAL, COLD AIR STOP
47
SEAL, FAN COVER
48
MAY W10772895
49
TEMPERATURE SENSOR
←
