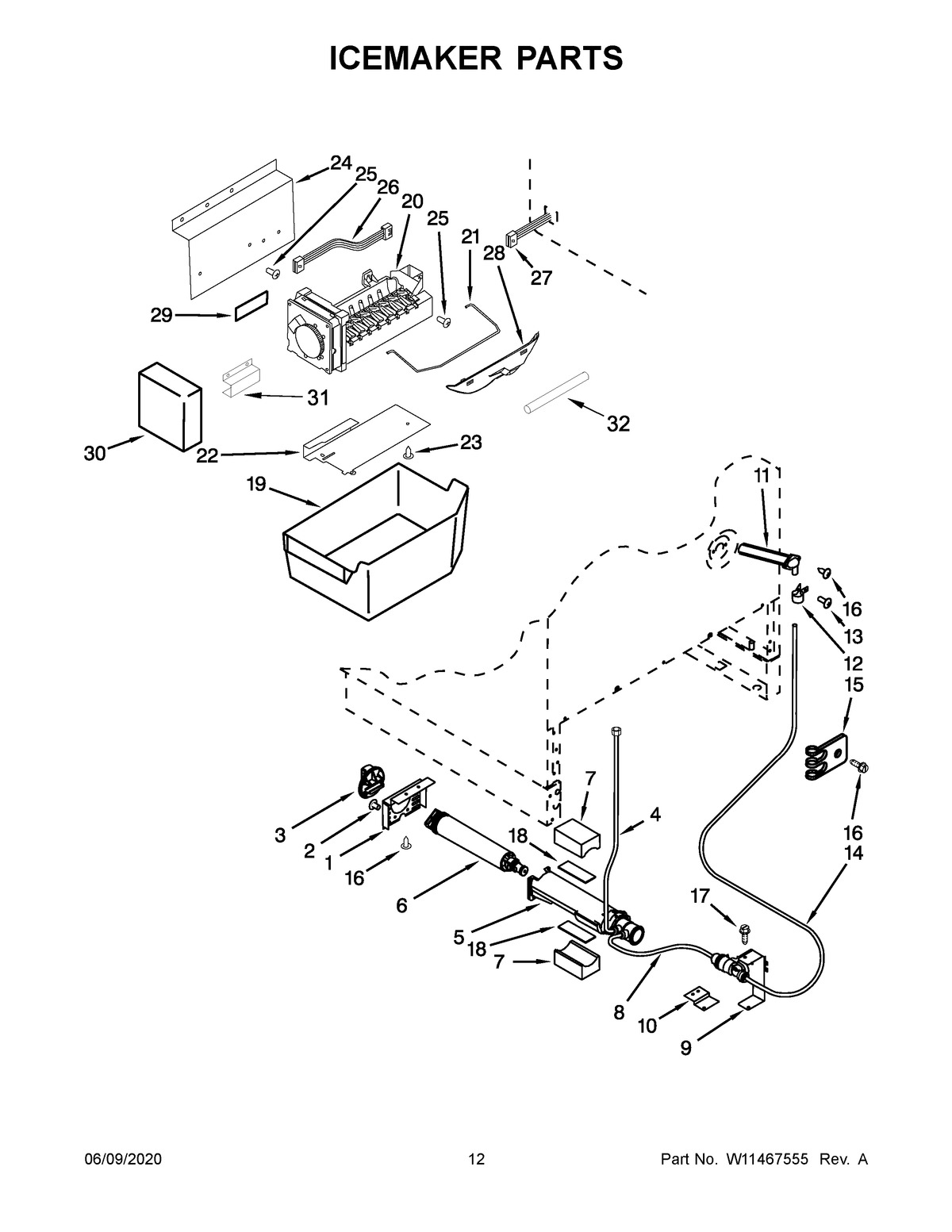

JUCFP242HX00 07 – ICEMAKER PARTS

JUCFP242HX00 07 – ICEMAKER PARTS

Written by

in

JUCFP242HX00 07 – ICEMAKER PARTS

Products

Position	Product
1	BRACKET, FILTER
2	SCREW, SUPPORT
3	CAP, WATER FILTER
4	TUBE, INLET
5	HOUSING, FILTER
6	WATER FILTER
7	BLOCK, FILTER
8	TUBE, WATER
9	VALVE, SOLENOID
10	BRACKET, VALVE
11	FITTING
12	TUBE CLAMP
13	SCREW
14	TUBE, WATER
15	TUBE CLAMP
16	MAY 4344825
17	MAY 4344832
18	TAPE, FILTER
19	MAY W11467277
20	ICEMAKER
21	SHUT OFF ARM
22	MAY W11467276
23	SCREW
24	BRACKET
25	SCREW
26	HARNESS, DEFROST HEATER
27	HARNESS EXTENSION
28	ARM EXTENSION
29	PROTECTION SHEET
30	COVER, FRONT
31	COVER, WIRE
32	TUBE, INLET
