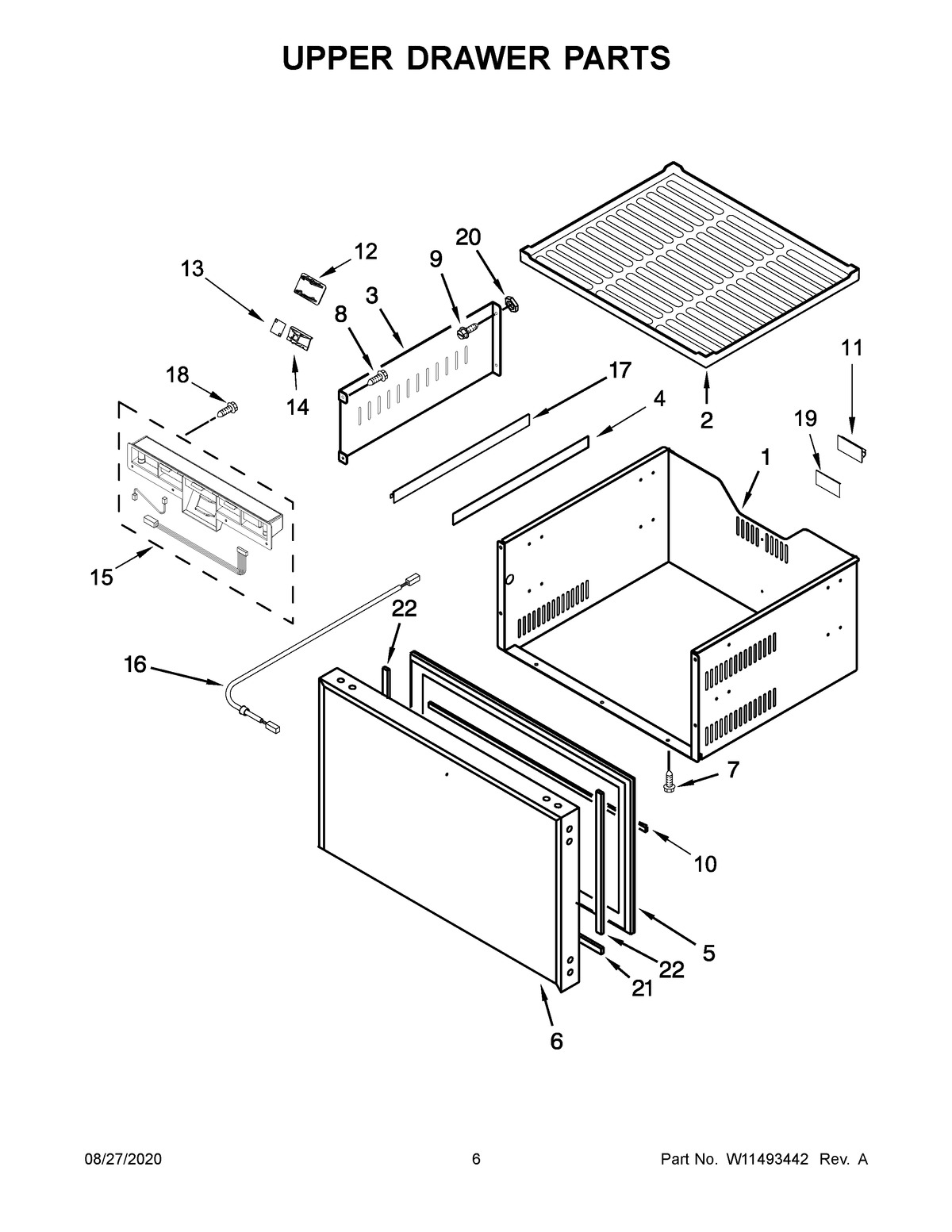

JUCFP242HX01 04 – UPPER DRAWER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10788702
1	DRAWER BOX ASSEMBLY, UPPER
2	MAT, UPPER DRAWER
3	DRAWER PARTITION
4	WIRE SUPPORT TAPE
5	GASKET
6	TOP FOAMED DOOR ASSEMBLY
7	SCREW
8	MAY W10204809
9	SCREW
10	COLD AIR SEAL
11	SUPPORT, WIRE
12	LAMP COVER
13	LED LAMP
14	LAMP HOLDER
15	MAY W11493061
16	HARNESS, DISPLAY TO INDICATOR
17	SUPPORT, LEAD WIRE
18	SCREW
19	WIRE SUPPORT TAPE
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
