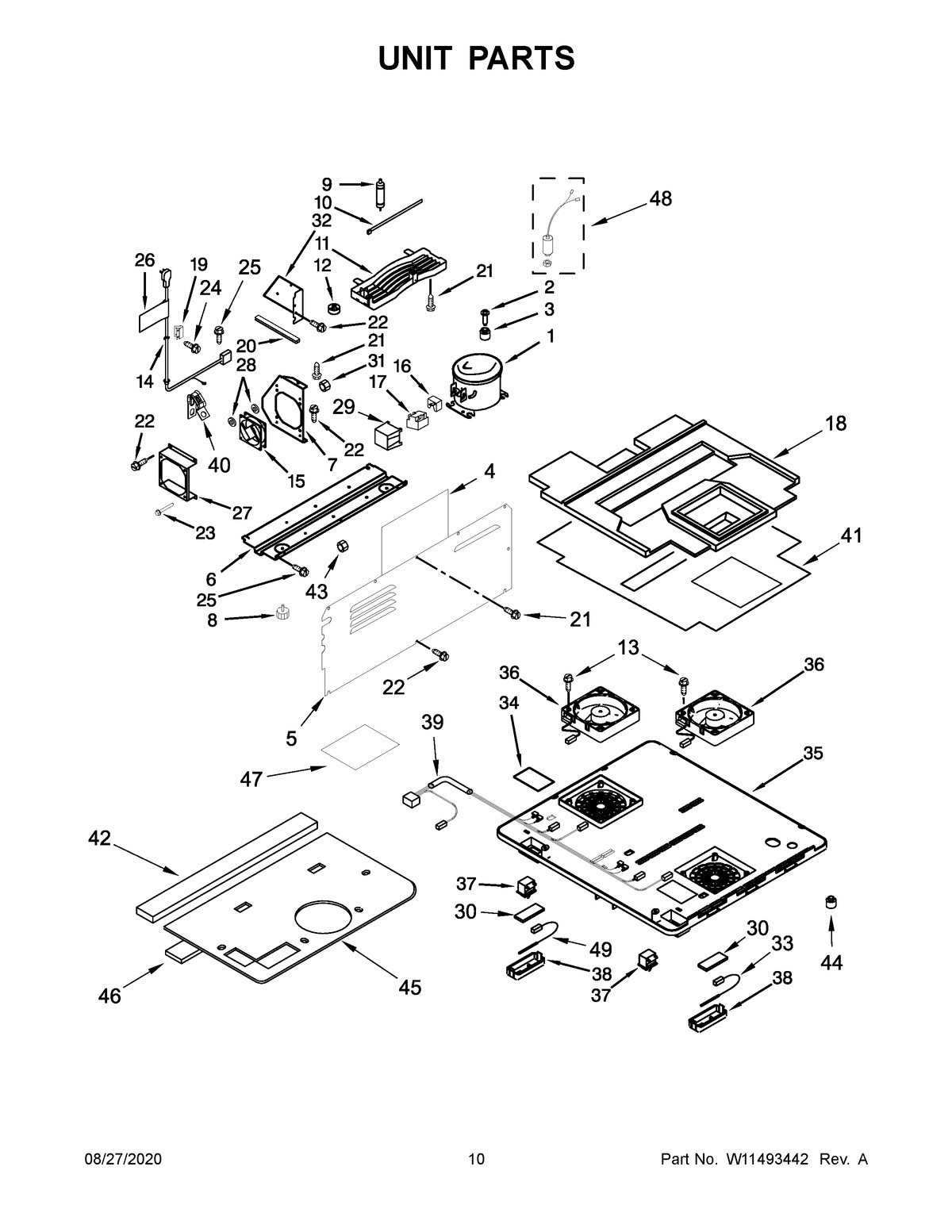

JUCFP242HX01 06 – UNIT PARTSadmin2025-04-26T09:21:49+00:00JUCFP242HX01 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | ALUMINUM TAPE |
| 1 | COMPRESSOR |
| 2 | MAY 4344780 |
| 3 | MAY 4344779 |
| 4 | MAY W10778963 |
| 5 | COVER, REAR |
| 6 | CABINET BASE PLATE |
| 7 | MAY W10204674 |
| 8 | MAY 4344763 |
| 9 | MAY W10163273 |
| 10 | MAY 4344829 |
| 11 | MAY W10772879 |
| 12 | MAY W10163276 |
| 13 | MAY W10205061 |
| 14 | MAY W10204676 |
| 15 | MAY W10772882 |
| 16 | OVERLAY RELAY |
| 17 | MAY W10287848 |
| 18 | INSULATION, FAN COVER |
| 19 | CLAMP, CORD |
| 20 | MAY 4344907 |
| 21 | MAY 4344825 |
| 22 | MAY 4344832 |
| 23 | SCREW |
| 24 | MAY W10204865 |
| 25 | MAY 4344797 |
| 26 | WARNING LABEL |
| 27 | ASSEMBLY, FAN COVER |
| 28 | MAY W10204688 |
| 29 | MAY W10772885 |
| 30 | MAY W10204948 |
| 31 | NUT |
| 32 | BRACKET, DEFROST TIMER |
| 33 | MAY W10772916 |
| 34 | TERMINAL PROTECTOR |
| 35 | COVER, FAN |
| 36 | MAY W10204942 |
| 37 | MAY W10721454 |
| 38 | MAY W10775535 |
| 39 | HARNESS, FAN COVER |
| 40 | MAY W10281591 |
| 41 | PLATE COVER |
| 42 | SEAL |
| 43 | SPRING WASHER |
| 44 | BUSHING, COVER |
| 45 | INSULATION COMBO |
| 46 | SEAL, COLD AIR STOP |
| 47 | SEAL, FAN COVER |
| 48 | MAY W10772895 |
| 49 | TEMPERATURE SENSOR |
