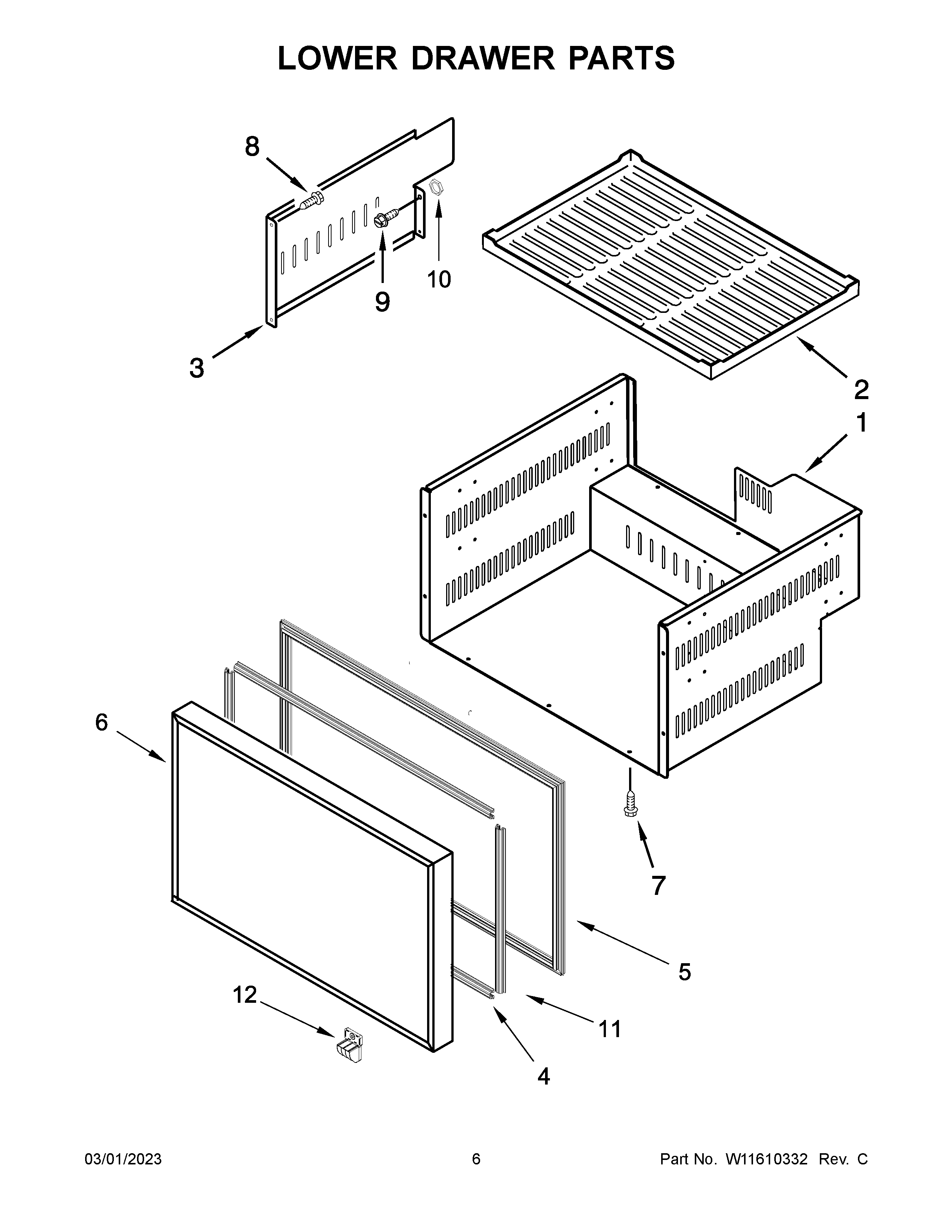

JUCFP242HX11 04 – LOWER DRAWER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIASSEMBLY, COMPLETE DOOR
1DRAWER BOX ASSEMBLY, LOWER
2MAT, LOWER DRAWER
3DRAWER PARTITION
4GASKET, SASH (TOP/BOTTOM)
5GASKET
6W11568937 Whirlpool Refrigerator Drawer
7SCREW
8SCREW
9W10204810 Whirlpool Screw
10W10204920 Whirlpool Refrigerator Nut
11DOOR GASKET, SHORT
12W11678576 Whirlpool Bracket
