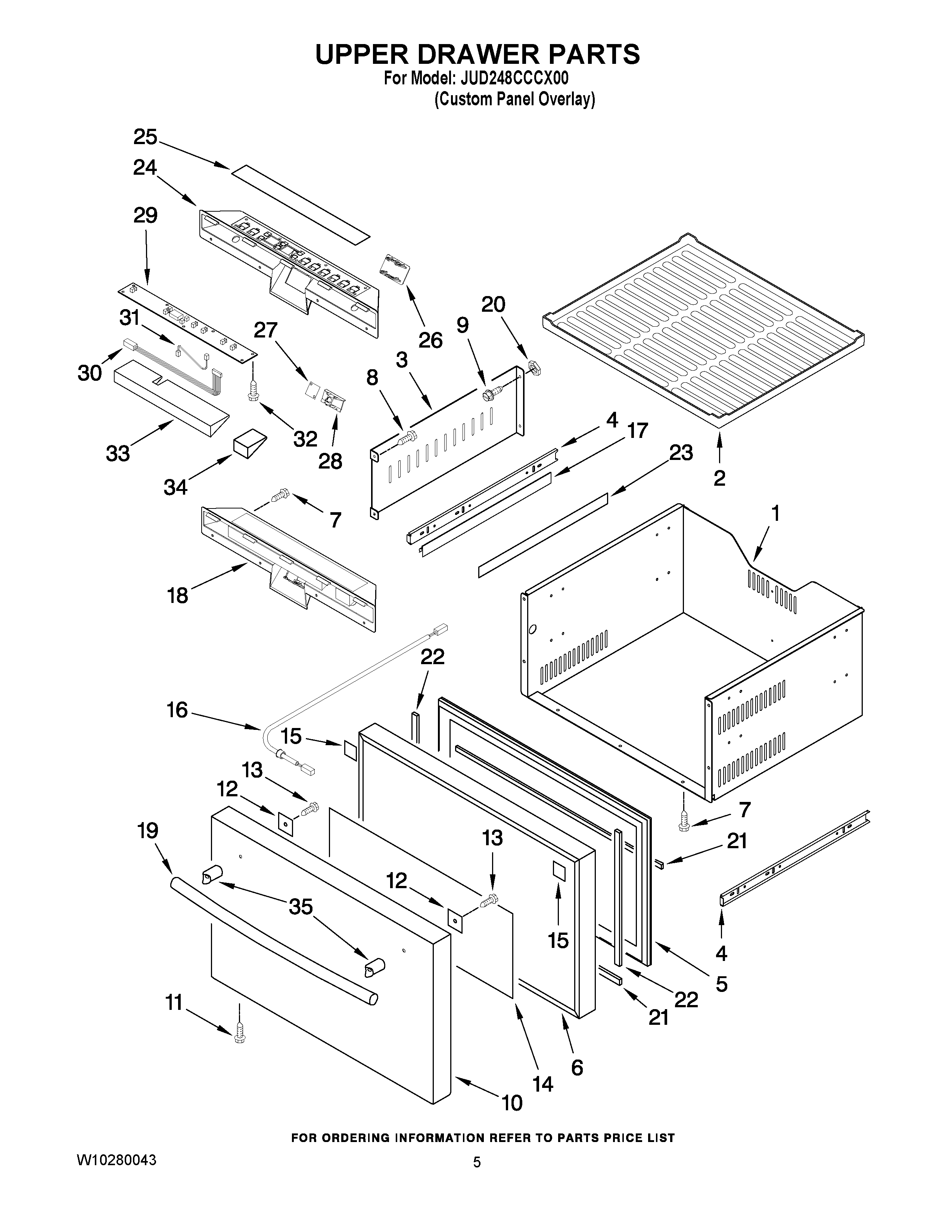

JUD248CCCX00 03 – UPPER DRAWER PARTS

Products

Position	Product
1	MAY W10270484
2	MAY W10204698
3	MAY W10270486
4	MAY W10233777
5	MAY W10204700
6	MAY W10204702
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10204926
11	MAY W10204865
12	MAY 4344809
13	MAY W10269417
14	WRAP SPACER
15	MAY W10204868
16	MAY W10204884
17	MAY W10204885
18	MAY W10281592
19	MAY W10269415
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
23	MAY W10205081
24	MAY W10281502
25	WIRE SUPPORT TAPE
26	LAMP COVER
27	LED LAMP
28	LAMP HOLDER
29	MAY W10281540
30	MAY W10204933
31	MAY W10204934
32	SCREW, LED
33	MAY W10204936
34	MAY W10204937
35	MAY W10269416
