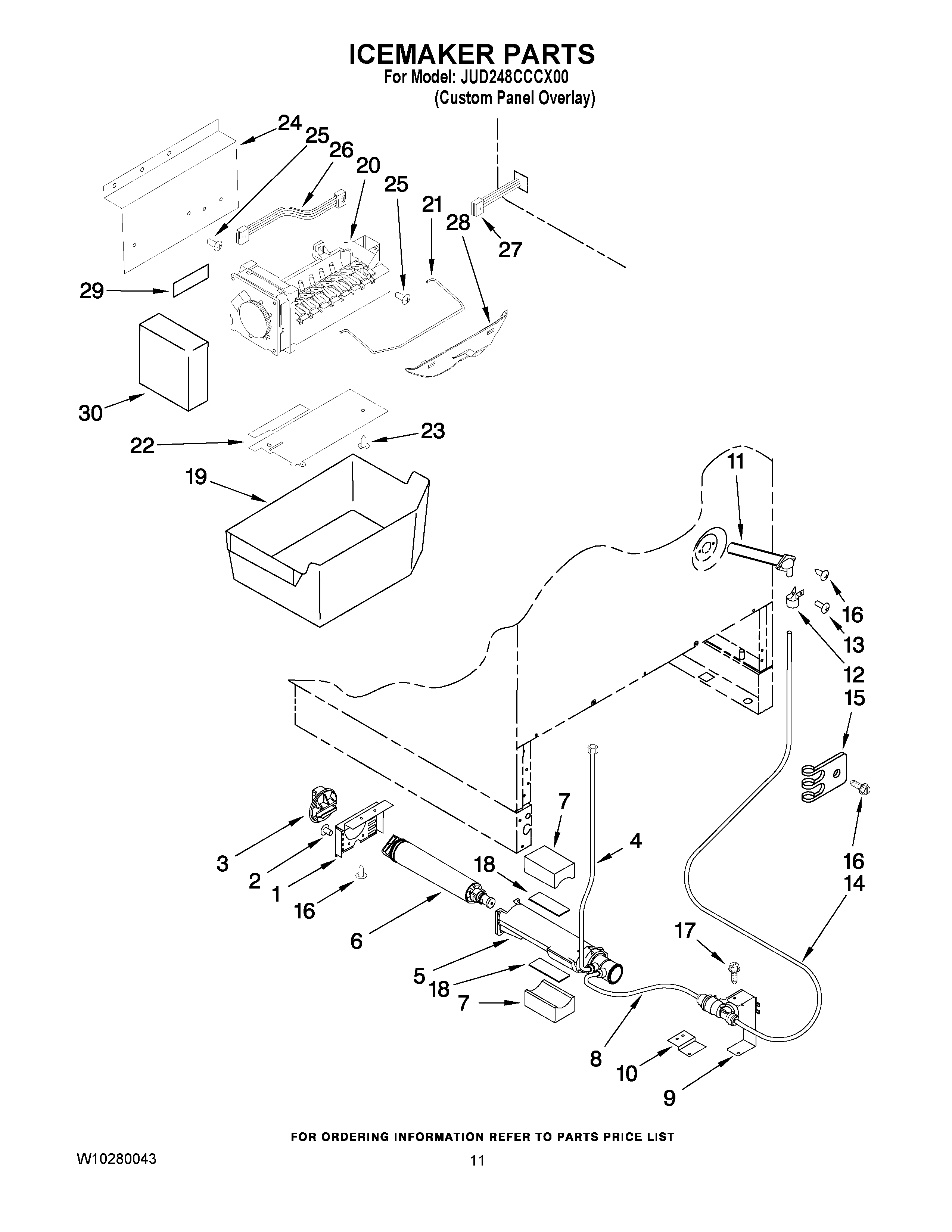

JUD248CCCX00 06 – ICEMAKER PARTS

JUD248CCCX00 06 – ICEMAKER PARTS

Written by

in

JUD248CCCX00 06 – ICEMAKER PARTS

Products

Position	Product
1	MAY W10281555
2	SCREW, SUPPORT
3	CAP, WATER FILTER
4	TUBE, INLET
5	HOUSING, FILTER
6	WATER FILTER
7	BLOCK, FILTER
8	MAY W10281562
9	VALVE, SOLENOID
10	BRACKET, VALVE
11	FITTING
12	TUBE CLAMP
13	SCREW
14	TUBE, WATER
15	TUBE CLAMP
16	MAY 4344825
17	MAY W10281588
18	TAPE, FILTER
19	PAN, ICE CUBE
20	ICEMAKER
21	SHUT OFF ARM
22	HEAT SHIELD
23	SCREW
24	MAY W10281548
25	SCREW
26	MAY W10281550
27	HARNESS EXTENSION
28	ARM EXTENSION
29	PROTECTION SHEET
30	COVER, FRONT
