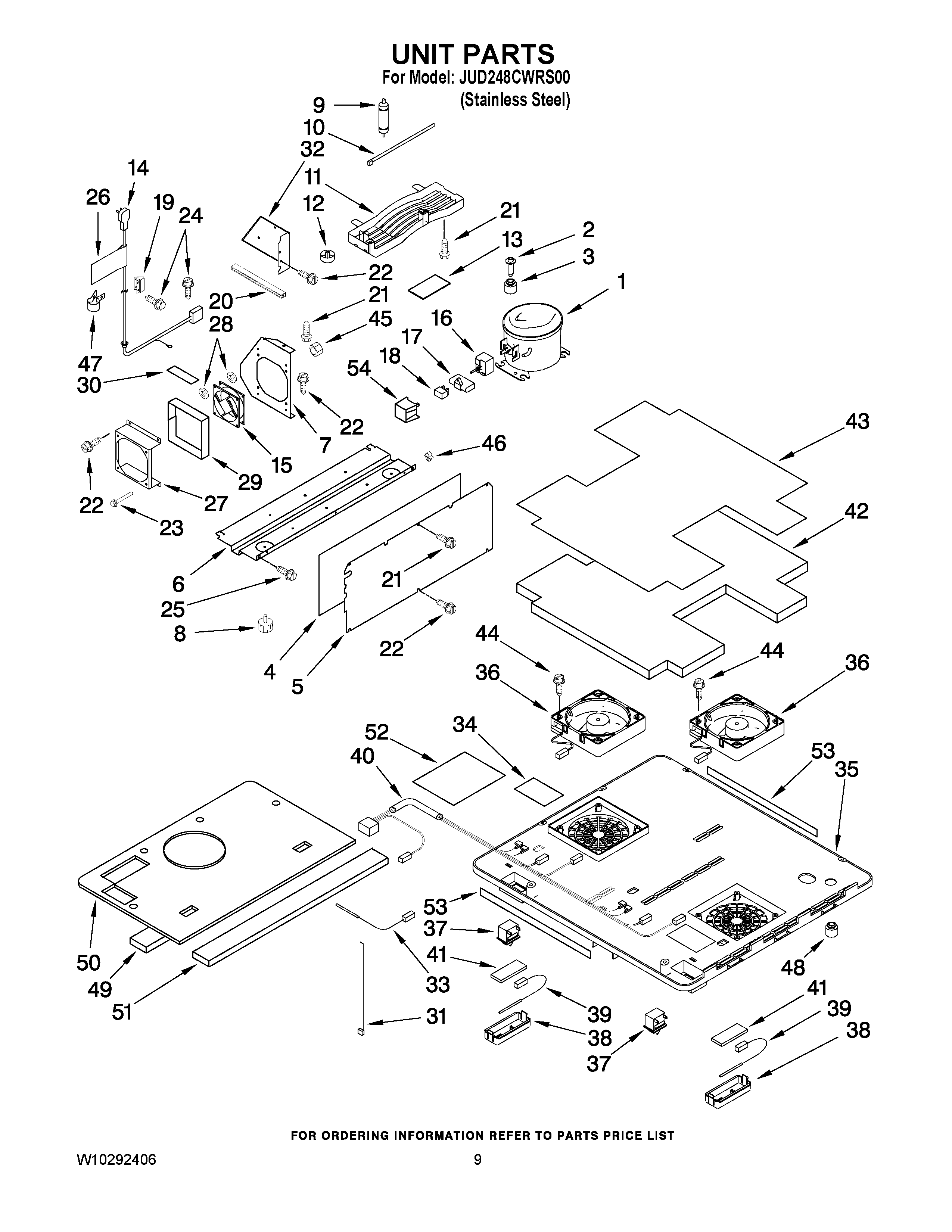

JUD248CWRS00 05 – UNIT PARTS
Written by
in
JUD248CWRS00 05 – UNIT PARTS
Products
Position
Product
1
MAY W10287744
2
MAY 4344780
3
MAY 4344779
4
MAY W10204672
5
MAY W10281501
6
MAY W10238066
7
MAY W10204674
8
MAY 4344763
9
MAY W10163273
11
MAY W10304197
12
MAY W10163276
13
Pad, Rubber
14
MAY W10204676
15
MAY W10204677
16
MAY W10287745
17
MAY W10287848
18
MAY W10287954
19
CLAMP, CORD
20
MAY 4344907
21
MAY 4344825
22
MAY 4344832
23
MAY W10270492
24
MAY 4344826
25
BOLT
26
MAY 4344913
27
MAY W10204687
28
MAY W10204688
29
MAY W10204689
30
MAY W10204690
31
MAY 4344829
32
BRACKET, DEFROST TIMER
33
MAY W10205063
34
TERMINAL PROTECTOR
35
MAY W10204941
36
MAY W10204942
37
MAY W10270520
38
MAY W10204945
39
MAY W10204946
40
MAY W10204947
41
MAY W10304186
41
MAY W10204948
42
MAY W10281541
43
MAY W10281542
44
MAY W10205061
45
MAY W10270493
46
MAY W10238022
47
MAY W10281591
48
BUSHING, COVER
49
MAY W10304185
50
MAY W10304202
51
MAY W10304184
52
SEAL, FAN COVER
53
MAY W10304189
54
MAY W10304192
←
