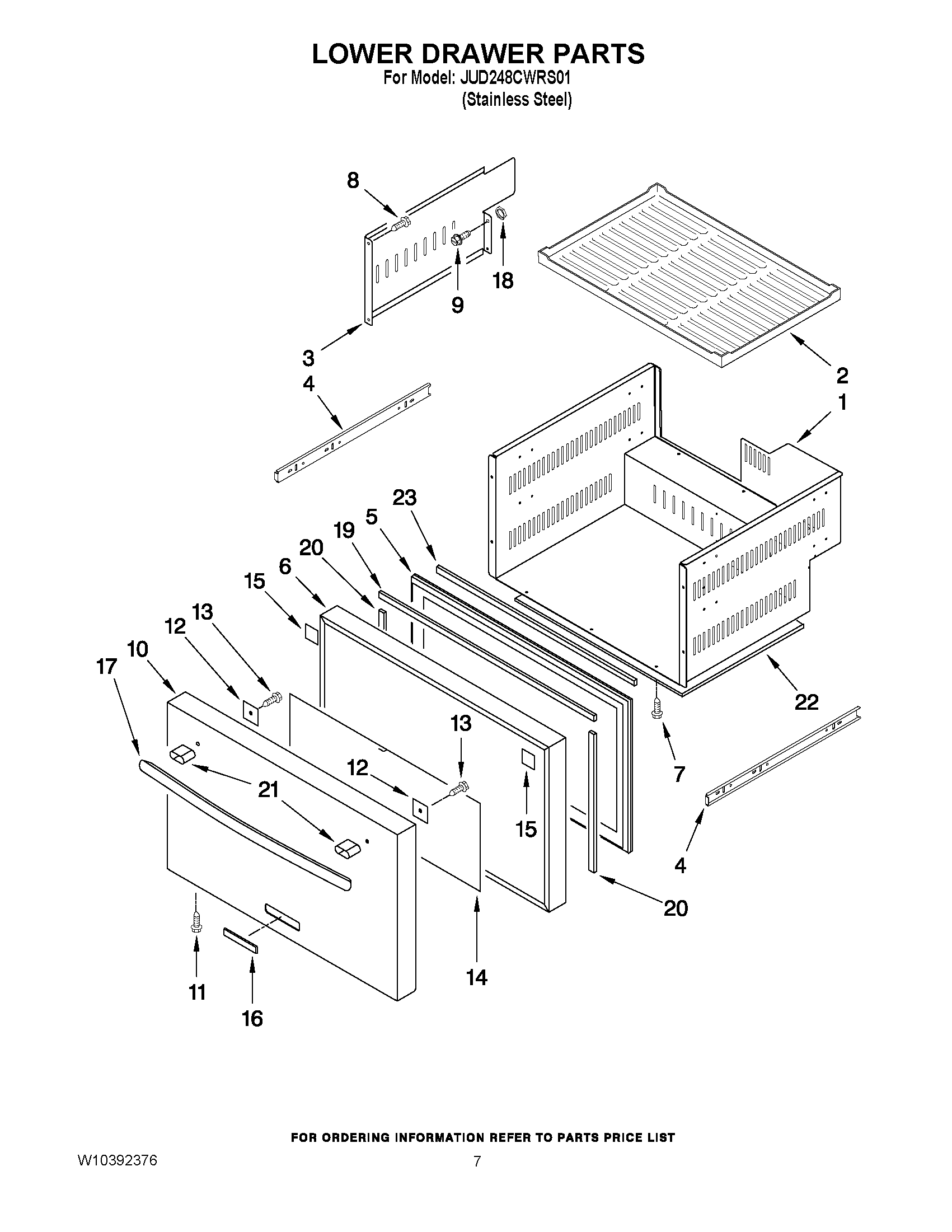

JUD248CWRS01 04 – LOWER DRAWER PARTS

Products

PositionProduct
1MAY W10281593
2MAY W10204922
3MAY W10270489
4MAY W10233777
5MAY W10204700
6FORMED DOOR ASSY
7SCREW
8MAY W10204809
9SCREW
10MAY W10292467
11MAY W10204865
12MAY W10299088
13MAY W10292468
14WRAP SPACER
15MAY W10204868
16MAY W10292471
17MAY W10292465
18NUT
19DOOR GASKET, LONG
20DOOR GASKET, SHORT
21MAY W10292469
22MAY W10281500
23MAY W10281317
