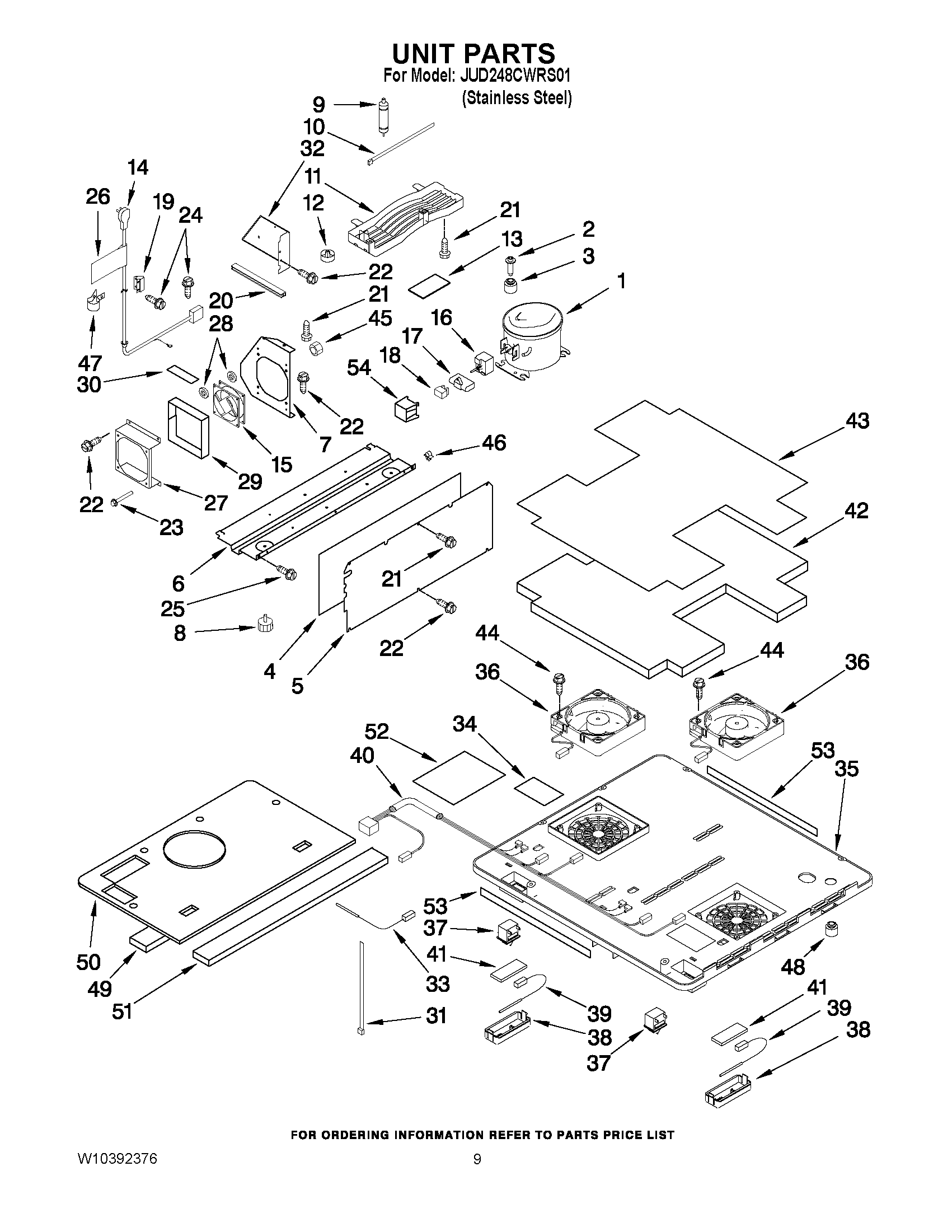

JUD248CWRS01 05 – UNIT PARTS

Products

Position	Product
1	MAY W10287744
2	MAY 4344780
3	MAY 4344779
4	MAY W10204672
5	MAY W10281501
6	MAY W10238066
7	MAY W10204674
8	MAY 4344763
9	MAY W10163273
11	MAY W10304197
12	MAY W10163276
13	Pad, Rubber
14	MAY W10204676
15	MAY W10204677
16	MAY W10287745
17	MAY W10287848
18	MAY W10287954
19	CLAMP, CORD
20	MAY 4344907
21	MAY 4344825
22	MAY 4344832
23	MAY W10270492
24	MAY 4344826
25	BOLT
26	MAY 4344913
27	MAY W10204687
28	MAY W10204688
29	MAY W10204689
30	MAY W10204690
31	MAY 4344829
32	BRACKET, DEFROST TIMER
33	MAY W10205063
34	TERMINAL PROTECTOR
35	MAY W10204941
36	MAY W10204942
37	MAY W10270520
38	MAY W10204945
39	MAY W10204946
40	MAY W10204947
41	MAY W10304186
41	MAY W10204948
42	MAY W10281541
43	MAY W10281542
44	MAY W10205061
45	MAY W10270493
46	MAY W10238022
47	MAY W10281591
48	BUSHING, COVER
49	MAY W10304185
50	MAY W10304202
51	MAY W10304184
52	SEAL, FAN COVER
53	MAY W10304189
54	MAY W10304192
