JUD248RCCX00 02 – LINER PARTS – Aparts

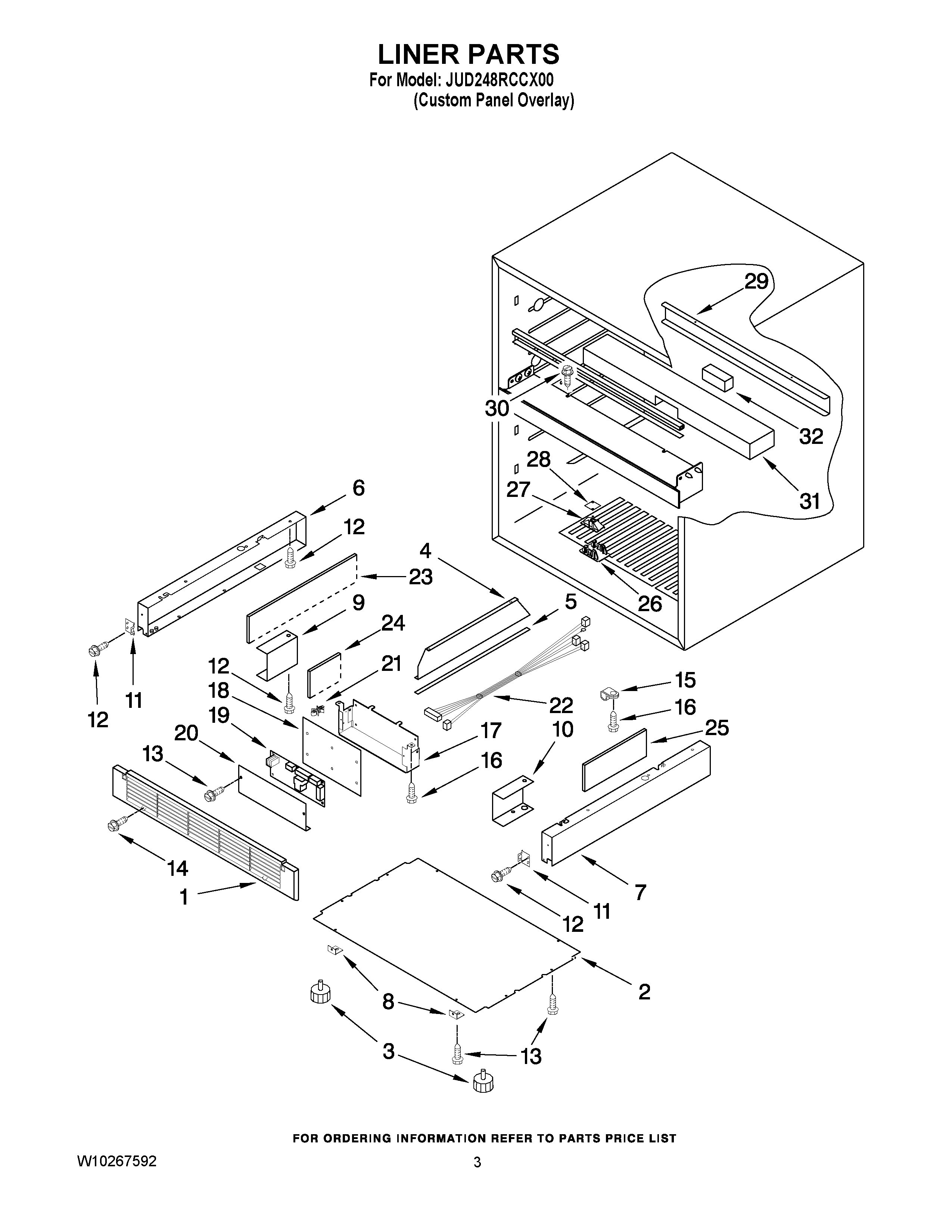

JUD248RCCX00 02 – LINER PARTS

Products

Position	Product
1	MAY W10204635
2	MAY 4344762
3	MAY W10270480
4	MAY W10204638
5	MAY 4344823
6	MAY 4344769
7	MAY 4344790
8	MAY 4344771
9	MAY 4344820
10	MAY 4344821
11	KICK PLATE MOUNT
12	BOLT
13	MAY 4344826
14	SCREW
15	MAY W10270482
16	MAY 4344825
17	MAY W10204645
18	MAY W10204646
19	MAY W10204648
20	MAIN PCB COVER
21	PCB STANDOFF
22	MAY W10204663
23	MAY W10205076
24	MAY W10205077
25	MAY W10205078
26	LAMP COVER
27	LAMP HOLDER
28	LED LAMP
29	MULLION CASE COVER
30	MAY W10270483
31	MAY W10205071
32	MULLION INSULATION
