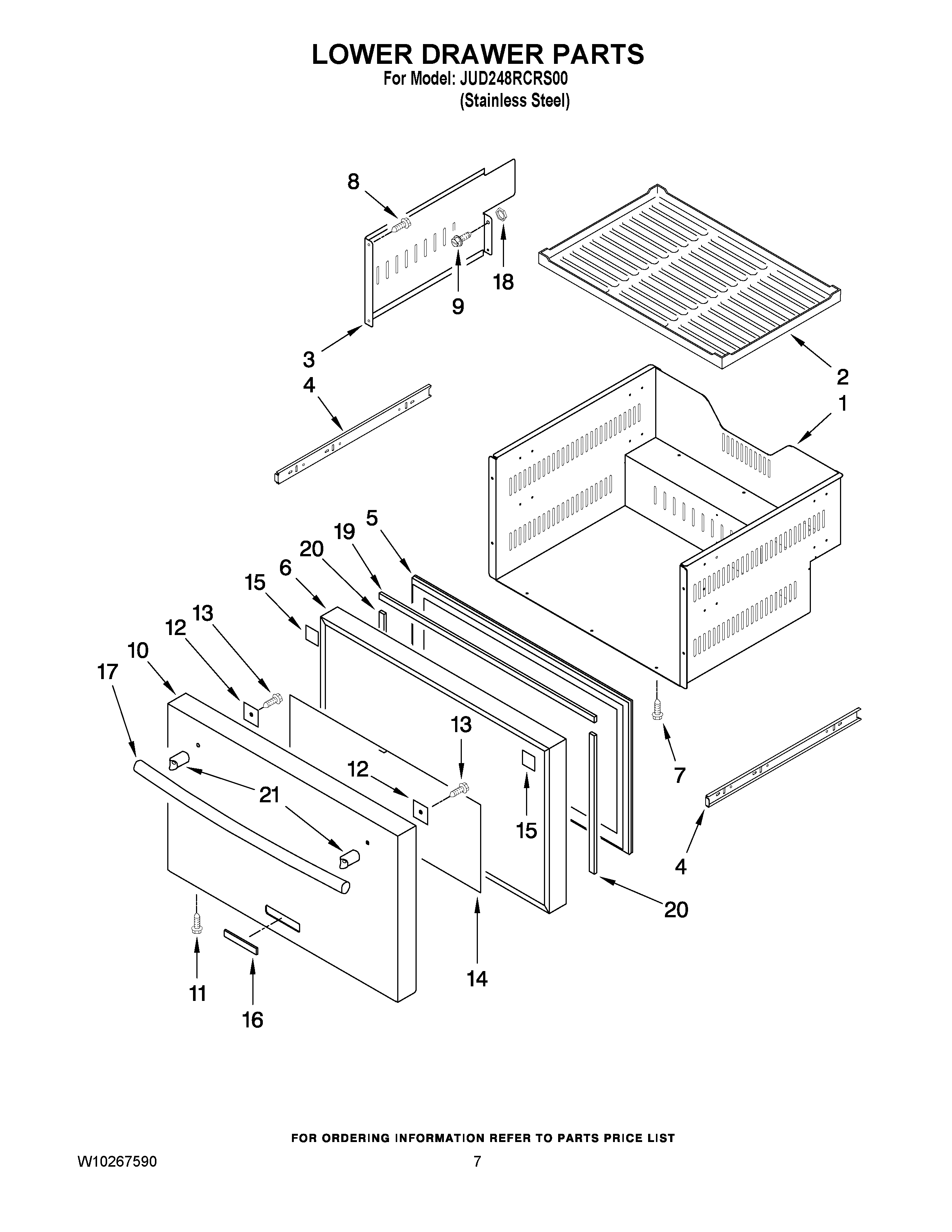

JUD248RCRS00 04 – LOWER DRAWER PARTS

JUD248RCRS00 04 – LOWER DRAWER PARTS

Written by

in

JUD248RCRS00 04 – LOWER DRAWER PARTS

Products

Position	Product
1	MAY W10270488
2	MAY W10204922
3	MAY W10270489
4	MAY W10233777
5	MAY W10204700
6	MAY W10204924
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10270490
11	MAY W10204865
12	MAY 4344809
13	MAY W10269417
14	WRAP SPACER
15	MAY W10204868
16	MAY W10163189
17	MAY W10269415
18	NUT
19	DOOR GASKET, LONG
20	DOOR GASKET, SHORT
21	MAY W10269416
