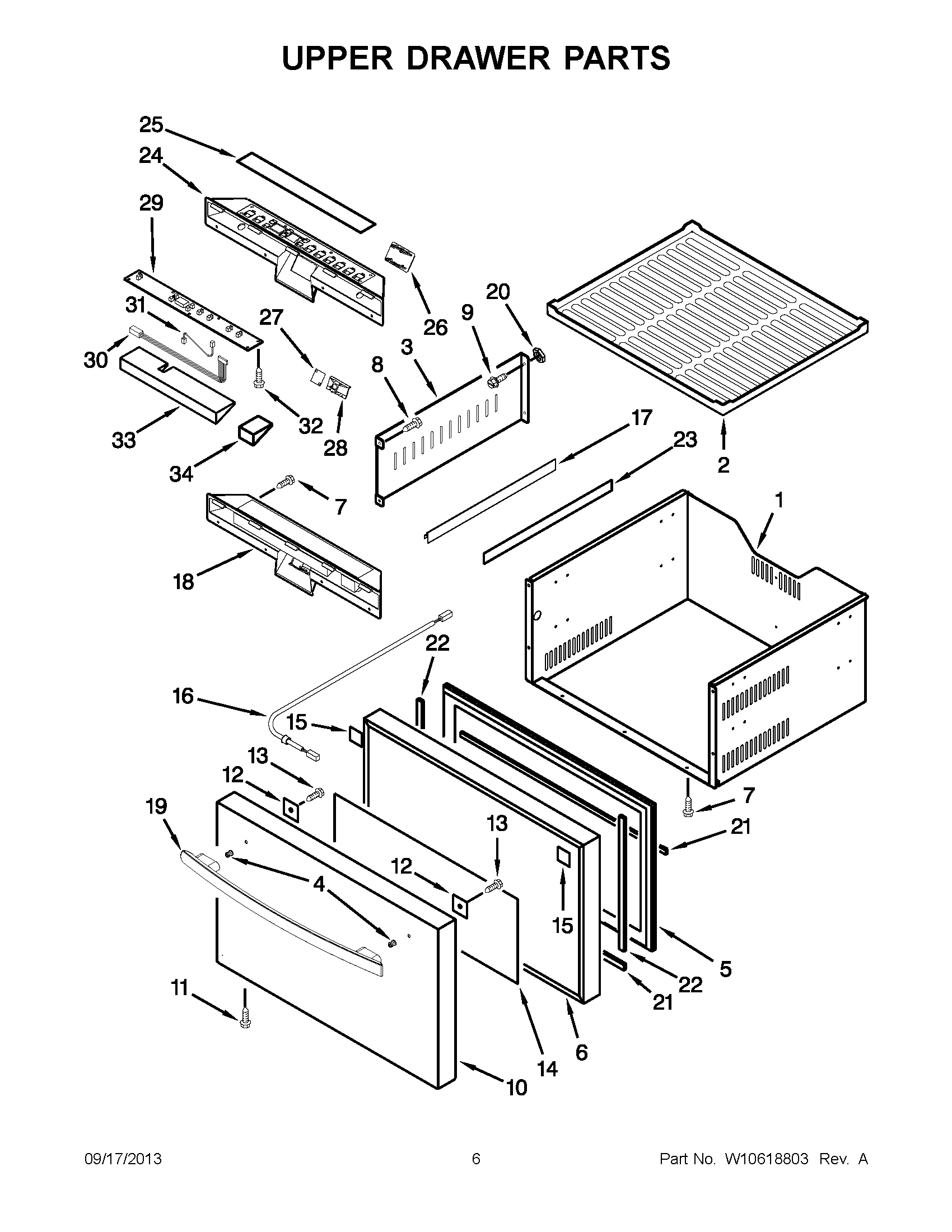

JUD24FCACX00 04 – UPPER DRAWER PARTS

Products

Position	Product
1	MAY W10622003
2	MAT, UPPER DRAWER
3	MAY W10270486
4	MAY W10319166
5	GASKET
6	MAY W10622042
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10622044
11	MAY W10204865
12	MAY W10299088
13	MAY W10204866
14	WRAP SPACER
15	MAY W10204868
16	MAY W10622011
17	SUPPORT, LEAD WIRE
18	MAY W10622016
19	MAY W10622019
20	NUT
21	DOOR GASKET, LONG
22	DOOR GASKET, SHORT
23	MAY W10205081
24	MAY W10622020
25	MAY W10622021
26	LAMP COVER
27	LED LAMP
28	LAMP HOLDER
29	MAY W10622022
30	MAY W10204933
31	MAY W10204934
32	SCREW, LED
33	MAY W10622023
34	MAY W10204937
