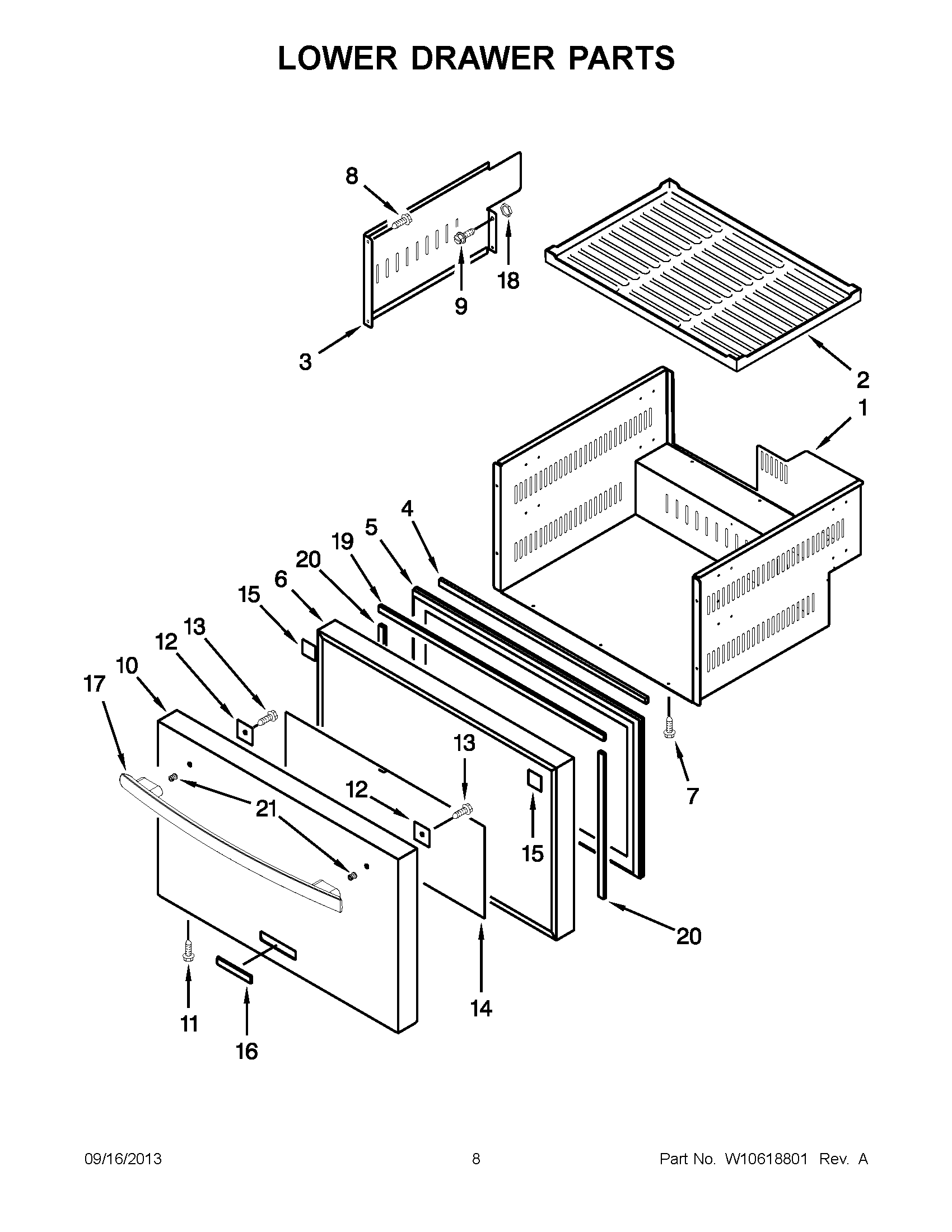

JUD24FCARS00 05 – LOWER DRAWER PARTS

Products

Position	Product
1	MAY W10622024
2	MAT, LOWER DRAWER
3	MAY W10270489
4	MAY W10281317
5	GASKET
6	MAY W10622027
7	SCREW
8	MAY W10204809
9	SCREW
10	MAY W10622009
11	MAY W10204865
12	MAY W10299088
13	MAY W10204866
14	WRAP SPACER
15	MAY W10204868
16	MAY W10292471
17	MAY W10622019
18	NUT
19	DOOR GASKET, LONG
20	DOOR GASKET, SHORT
21	MAY W10319166
