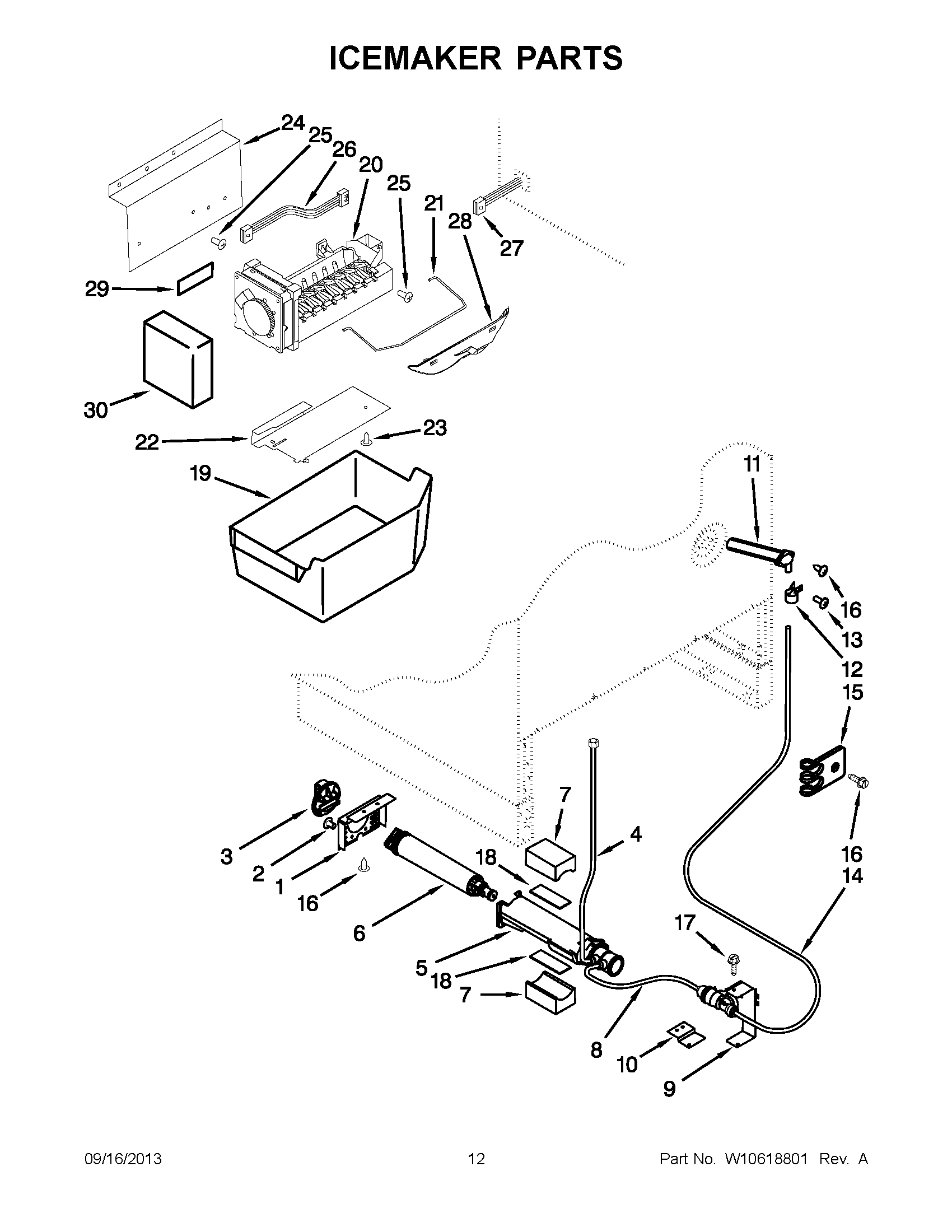

JUD24FCARS00 07 – ICEMAKER PARTSadmin2025-04-26T09:24:13+00:00JUD24FCARS00 07 – ICEMAKER PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10281555 |
| 2 | SCREW, SUPPORT |
| 3 | CAP, WATER FILTER |
| 4 | TUBE, INLET |
| 5 | HOUSING, FILTER |
| 6 | WATER FILTER |
| 7 | BLOCK, FILTER |
| 8 | MAY W10281562 |
| 9 | VALVE, SOLENOID |
| 10 | BRACKET, VALVE |
| 11 | FITTING |
| 12 | TUBE CLAMP |
| 13 | SCREW |
| 14 | TUBE, WATER |
| 15 | TUBE CLAMP |
| 16 | MAY 4344825 |
| 17 | MAY W10281588 |
| 18 | TAPE, FILTER |
| 19 | PAN, ICE CUBE |
| 20 | ICEMAKER |
| 21 | SHUT OFF ARM |
| 22 | HEAT SHIELD |
| 23 | SCREW |
| 24 | MAY W10622037 |
| 25 | SCREW |
| 26 | MAY W10622039 |
| 27 | HARNESS EXTENSION |
| 28 | ARM EXTENSION |
| 29 | PROTECTION SHEET |
| 30 | COVER, FRONT |
