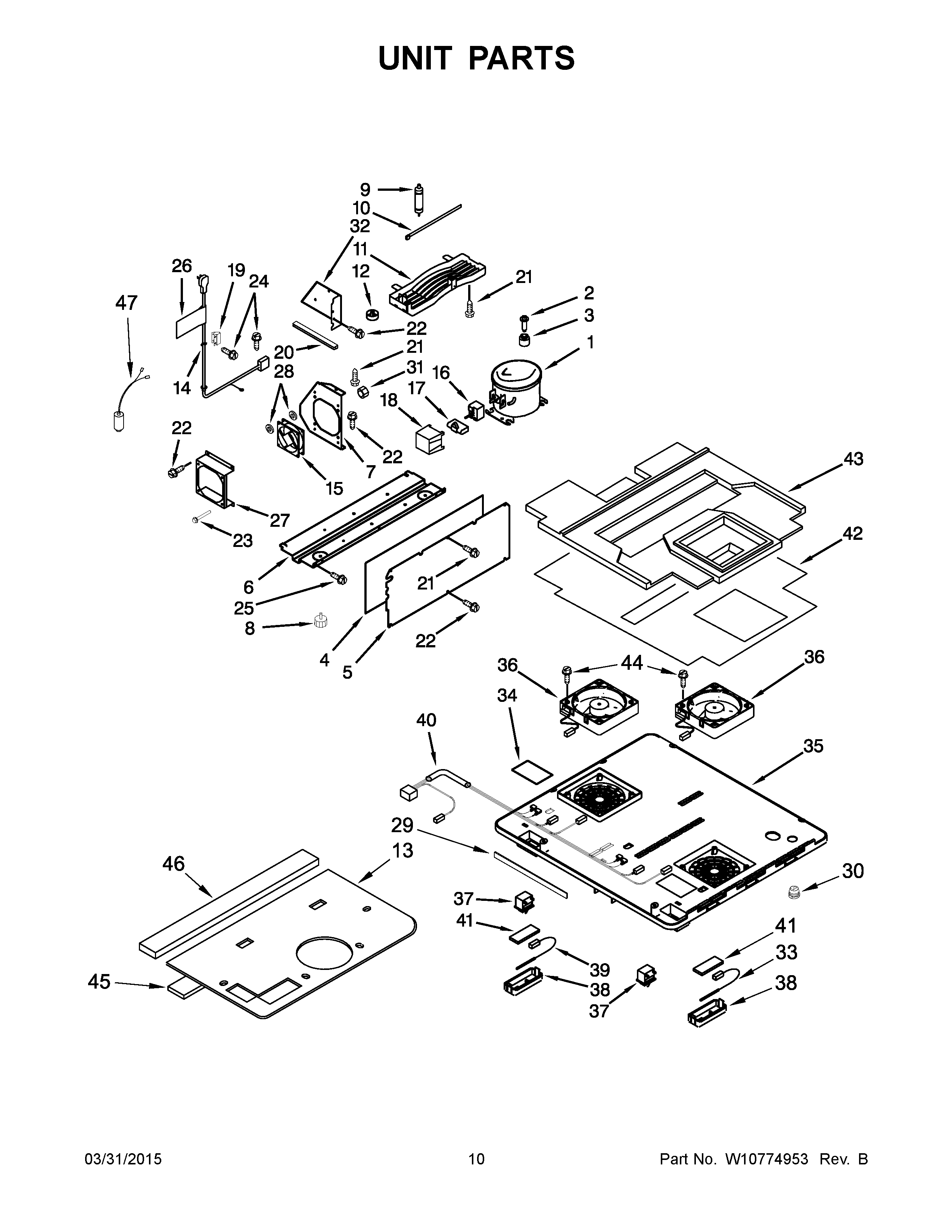

JUD24FCECX00 06 – UNIT PARTS
Written by
in
JUD24FCECX00 06 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
ALUMINUM TAPE
1
COMPRESSOR
2
MAY W10772873
3
MAY 4344779
4
MAY W10778963
5
COVER, REAR
6
MAY W10772877
7
MAY W10204674
8
MAY 4344763
9
MAY W10163273
10
MAY 4344829
11
MAY W10772879
12
MAY W10163276
13
MAY W10772921
14
MAY W10204676
15
MAY W10772882
16
OVERLAY RELAY
17
MAY W10287848
18
MAY W10772885
19
CLAMP, CORD
20
MAY 4344907
21
MAY 4344825
22
MAY 4344832
23
MAY W10772886
24
MAY 4344826
25
MAY 4344797
26
MAY 4344913
27
MAY W10772889
28
MAY W10204688
29
MAY W10304189
30
BUSHING, COVER
31
NUT
32
MAY 4344773
33
TEMPERATURE SENSOR
34
TERMINAL PROTECTOR
35
COVER, FAN
36
MAY W10204942
37
MAY W10721454
38
MAY W10778979
39
MAY W10772916
40
MAY W10772918
41
MAY W10204948
42
PLATE COVER
43
INSULATION, FAN COVER
44
MAY W10205061
45
SEAL, COLD AIR STOP
46
SEAL
47
MAY W10772895
←
