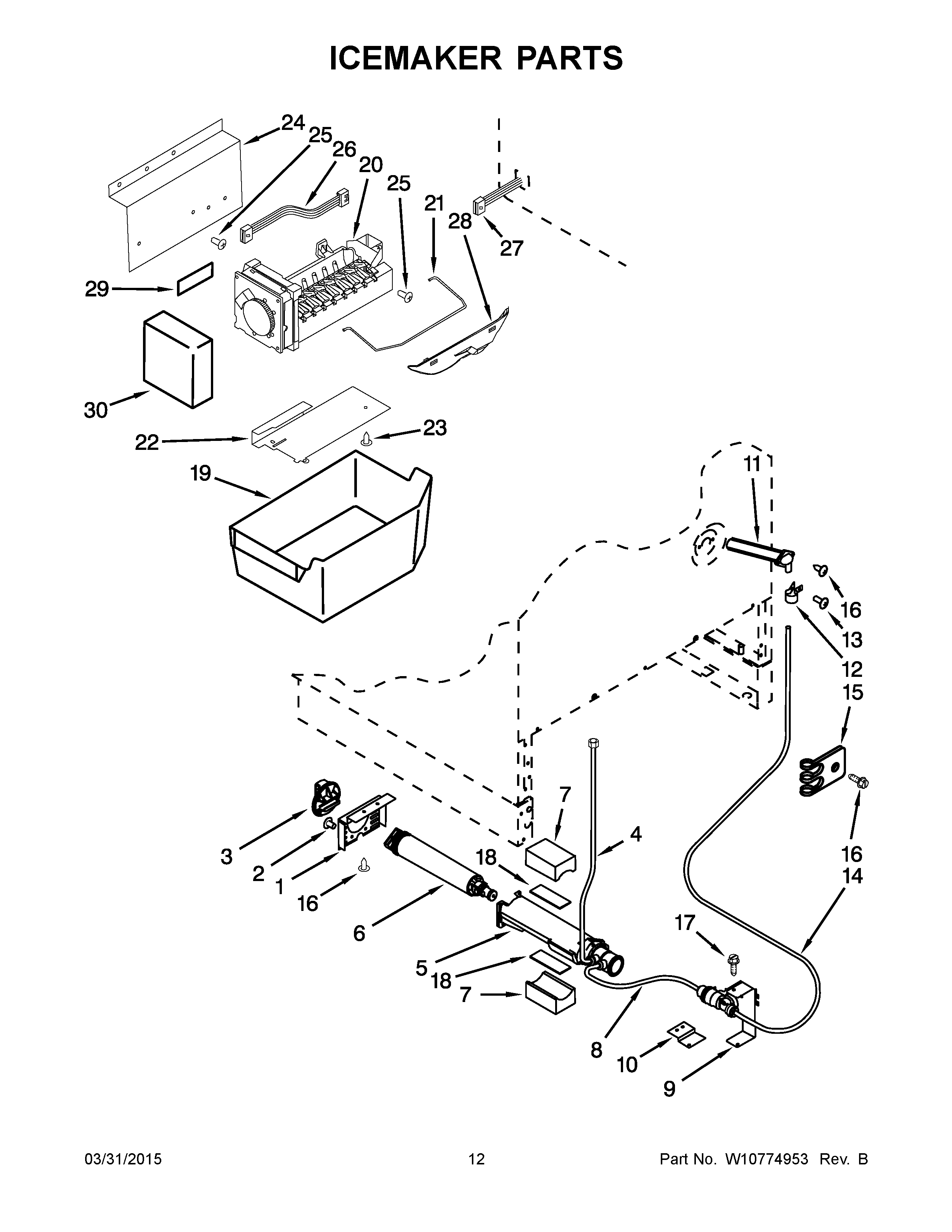

JUD24FCECX00 07 – ICEMAKER PARTS

Products

PositionProduct
1BRACKET, FILTER
2SCREW, SUPPORT
3CAP, WATER FILTER
4TUBE, INLET
5HOUSING, FILTER
6WATER FILTER
7BLOCK, FILTER
8TUBE, WATER
9VALVE, SOLENOID
10BRACKET, VALVE
11FITTING
12TUBE CLAMP
13SCREW
14TUBE, WATER
15TUBE CLAMP
16MAY 4344825
17MAY 4344832
18TAPE, FILTER
19PAN, ICE CUBE
20ICEMAKER
21MAY W10772923
22HEAT SHIELD
23SCREW
24MAY W10622037
25SCREW
26HARNESS, DEFROST HEATER
27MAY W10772925
28MAY W10772926
29PROTECTION SHEET
30COVER, FRONT
